Korg | DDD-5

Description

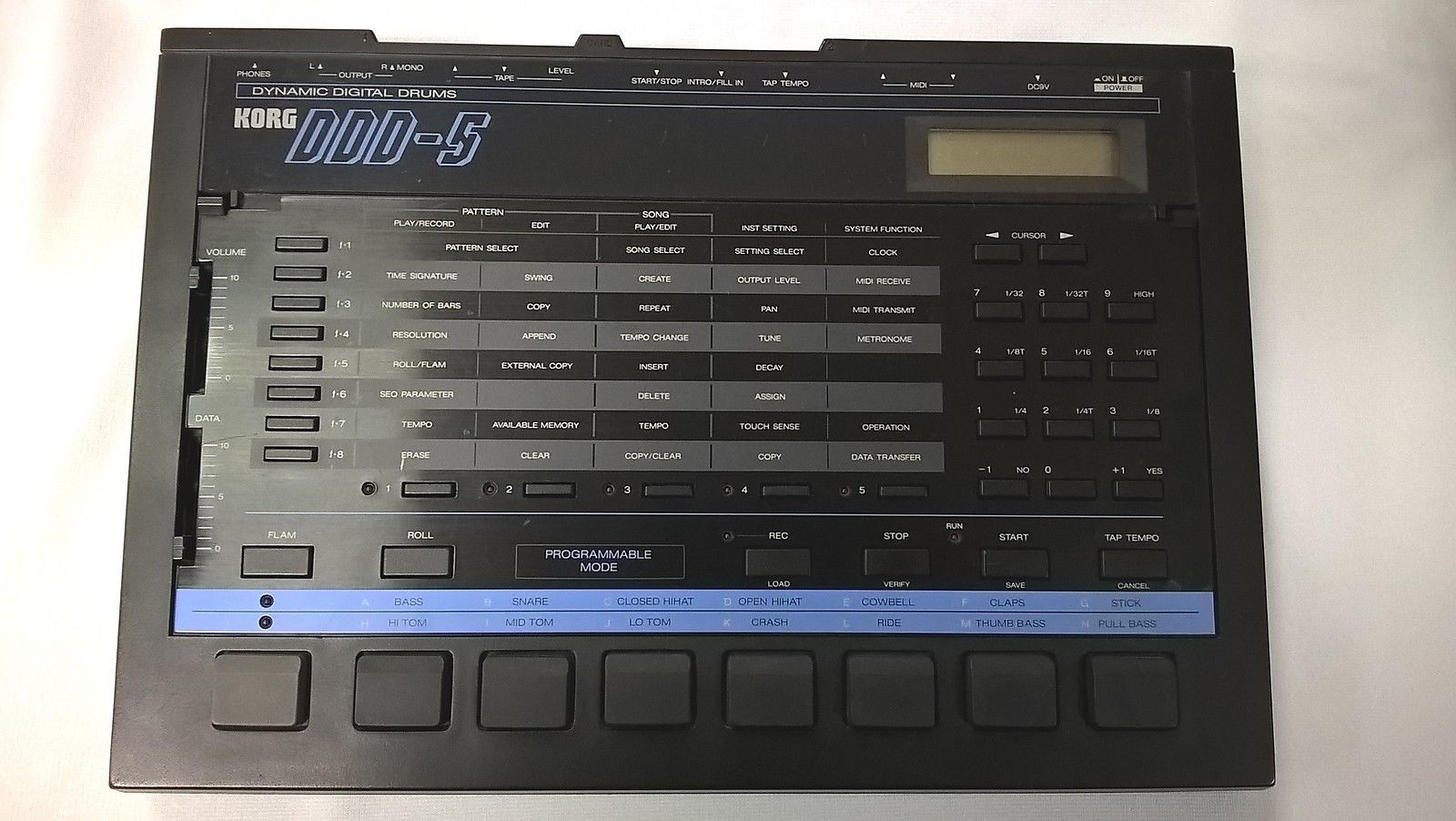

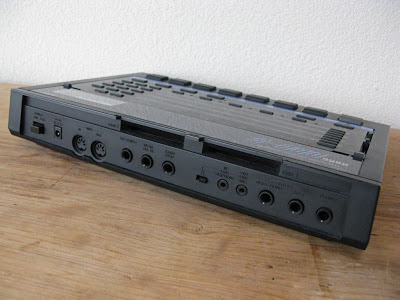

The DDD-5 is a digital programmable drum machine from Korg from the mid-eighties. It was a newer but less professional version of the DDD-1. It offers 14 electronic drum sounds at once with a typical mid-eighties electronic drum sound that is not too popular today. In fact today the DDD-5 may be used more often as a trusty old play along drum machine for practicing musicians. Basic sounds include kicks, snares, toms, rimshot, closed hi hats, open hi hats, ride, crash, claps, cowbell, tambourine and cabasa. Additional sounds can be added using ROM cards, compatible with the DDD-1. The DDD-5 does not include the sampling option that was available on the DDD-1. And there are only seven assignable Dynamic Sound buttons for triggering drum sounds.

Programming the DDD-5 is fairly straight forward. Memory holds 100 patterns which can be linked or chained to form songs, for which there are 24 song memory locations. The drum sounds have editable parameters such as tuning and decay. For added groove in your patterns there are Roll and Flam effects. The DDD-5 is equipped with MIDI implementation making it an easy drum machine to use in any MIDI environment. If you like typical eighties drum sounds, the DDD-5 is a cheap alternative to the DDD-1 and other similar drum machines like the Roland TR-707.

BrandKorg
ModelDDD-5
DeviceDrum
TypeDesktop
Engine TypeDigital
EnginePCM
Voices (max)14
Engine Detailed18 sampled sounds: 2 Kick, 2 Snare, Low/Mid/Hi Toms, Rimshot, Claps, Crash, 2 Open hihats, 2 Closed hihats, Ride, Cowbell, Tambourine and Cabasa
Memory100 Patterns, 24 Songs.
Keys7
Key typeButtons
VelocityY
AftertouchNo
MidiI-O
Produced:1987 - 1987
Legend: Obvious Y: Yes, N: No, N/A: Not Applicable
VCO Voltage Controlled Oscillator DCO Digital Controlled Oscillator
LFO Low Frequency Oscillator Sub Sub Oscillator
VCF Voltage Controlled Filter VCA Voltage Controlled Amplifier
Velocity As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key. Aftertouch Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel.
Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise.
