Kawai | SX-210

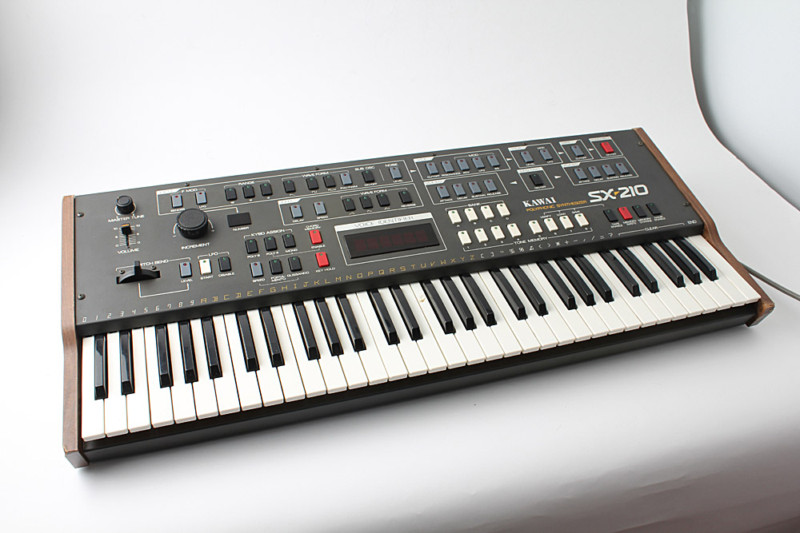

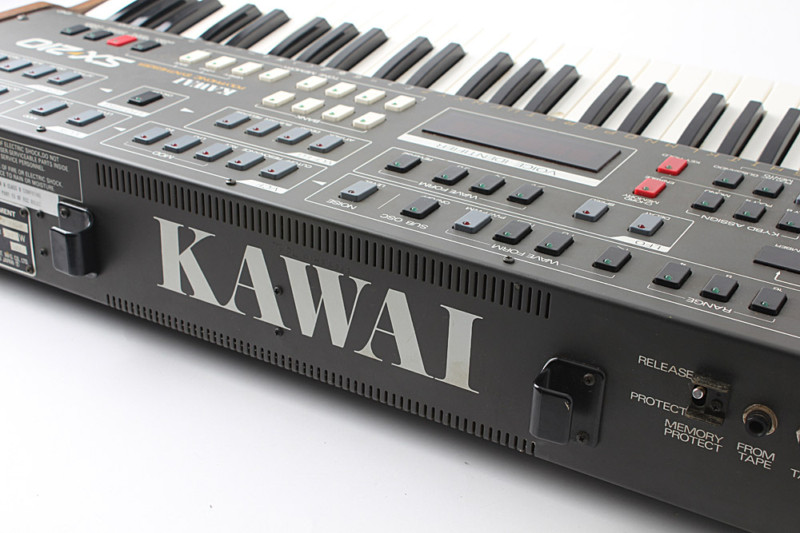

The Kawai SX-210 (also manufactured under the name of Teisco) was widely ignored when released back in 1983 and is actually quite an underrated synthesizer. The SX-210 uses DCOs (1 per voice) with traditional analog VCF (filter) and VCA envelope generators. It features 8-voice polyphony, a 4-voice mode using 2 DCO per voice, and a monophonic unison lead mode (8 stacked oscillators!!). The SX-210 certainly stacks up well against the more popular Roland Juno-60 and Korg Polysix synths.
Program changes are entered using a global "Increment" wheel sort of like those used on the Roland Alpha Juno series. Fortunately its implementation is much better on the SX-210 - just hit a parameter switch and adjust the dial to the desired value or effect. The downside is there are only 32 memory patches. The oscillator section offers 3 waveforms, a sub-osc and PWM control plus a noise generator. The low pass VCF (filter) has its own ADSR envelope generator. There's also a high pass filter. The LFO can modulate both DCO, VCF and VCA, all at the same time! It is also one of the only synths to feature both glissando and portamento.
The SX-210 is pretty rare, only a few thousand may have been made. This rarity and its capable sound quality make it a great find, but it won't replace the Roland Juno or Korg Poly synths.
|LFO||1 LFO with 3 waveforms + reverse mode|
|Engine Detailed||8 DCOs; 1 per voice; 3 waveforms|
|Filter (VCF)||VCF Lowpass filter with ADSR; HiPass filter|
|Envelope (VCA)||1 VCA with ADSR|
|FX||Stereo Ensemble (Chorus)|
|Produced:||1983 - 1983|
|Legend:||Obvious||Y: Yes, N: No, N/A: Not Applicable|
|VCO||Voltage Controlled Oscillator||DCO||Digital Controlled Oscillator|
|LFO||Low Frequency Oscillator||Sub||Sub Oscillator|
|VCF||Voltage Controlled Filter||VCA||Voltage Controlled Amplifier|
|Velocity||As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key.||Aftertouch||Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel.|
|Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise.|
