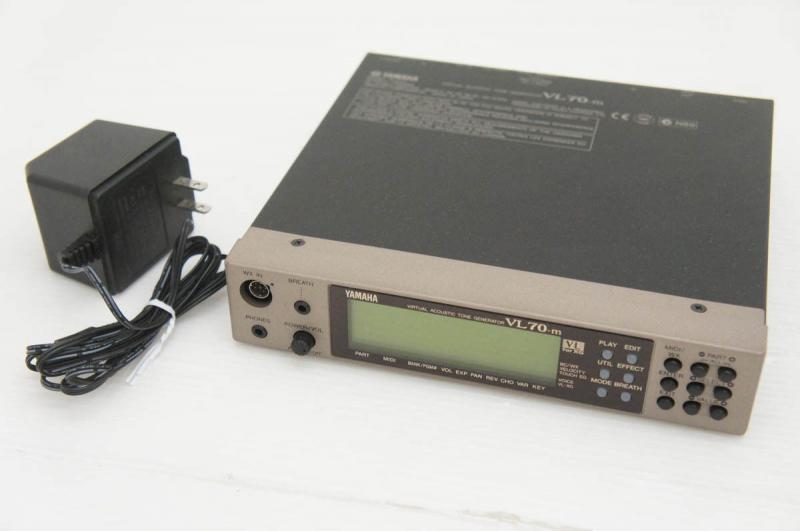

Yamaha | VL70m |
|
Description | Unique to Yamaha, computer-based "physical modeling" technology which accurately simulates the complex vibrations, resonances, reflections and other acoustic phenomena that occur in real wind or string instruments-to produce high quality monophonic voice... VA Synthesis Unique to Yamaha, computer-based "physical modeling" technology which accurately simulates the complex vibrations, resonances, reflections and other acoustic phenomena that occur in real wind or string instruments-to produce high quality monophonic voices. Built-in Effects Section With independent Reverb, Chorus, Variation and Distortion effects Flexible Voice Editing Options Although many parameters can be edited via the panel controls, peripheral voice editing software is available to give much more voicing flexibility. These can be obtained by downloading them from Yamaha XG-MIDI home page at: http//www.yamaha.co.jp.english/xg/html/libhm.html via Macintosh® systems Visual Editor An application with a graphical interface which allows you to make selections using easy-to-understand palettes and clickable buttons. (A Windows® version of the Visual Editor is also available.) Analog Editor An application with graphical interface which allows you to make selections using familiar analog-style knobs and switches. Expert Editor Provides full access to the complete range of physical modeling parameters, ideal for creating entirely new voices. Compatible Designed for compatibility with various types of external devices. A WX In jack lets you connect a Yamaha WX-series Wind MIDI controller. The "VL Extension for XG" feature significantly enhances and expands the musical capabilities of the XG format. A TO HOST connector lets you connect a personal computer for editing, sequencing and other musical applications without a separate MIDI interface. Versatile Use from a keyboard, a Wind MIDI controller or a Guitar MIDI converter System Examples VL70-m with a BC3 breath controller, the BC3 allows even greater musical expression; VL70-m with a WX5 wind MIDI controller; VL70-m with G50 and G1D, setup with a guitar MIDI converter; VL70-m sound to a Computer Music Playback (VL Extension for XG) |
| Brand | Yamaha |
| Model | VL70m |
| Device | Synth |
| Type | Desktop |
| Engine Type | Digital |
| Engine | PM |
| Voices (max) | 1 |
| Multitimbral | 1 |
| Oscillators | 1 |
| LFO | 1 triangle saw square |
| Filter (VCF) | 1 Dynamic Filter (LPF, HPF, BPF, BEF, with resonance) |
| Envelope (VCA) | 6 Envelope Generators 2x AADSR 1xIHAIDR 1x DAS 2xD |
| FX | Reverb 12 types, Chorus 10 types, Insertion Variation: 44 types, Distortion: 3 types |
| Memory | Preset: 256 voices (including 137 VL-XG mapping voices). Custom: 6 voices (edited by external editor) Internal: 64 voices |
| Keys | 0 |
| Key type | N/A |
| Velocity | N/A |
| Aftertouch | N/A |
| Midi | I-O-T |
| Produced: | 1996 - 1996 |
| Legend: | Obvious | Y: Yes, N: No, N/A: Not Applicable | |
| VCO | Voltage Controlled Oscillator | DCO | Digital Controlled Oscillator |
| LFO | Low Frequency Oscillator | Sub | Sub Oscillator |
| VCF | Voltage Controlled Filter | VCA | Voltage Controlled Amplifier |
| Velocity | As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key. | Aftertouch | Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel. |
| Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise. | |||
