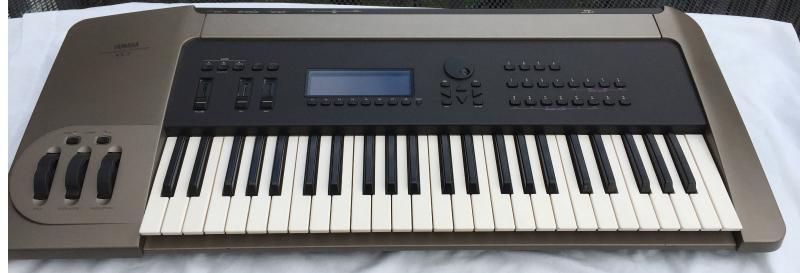

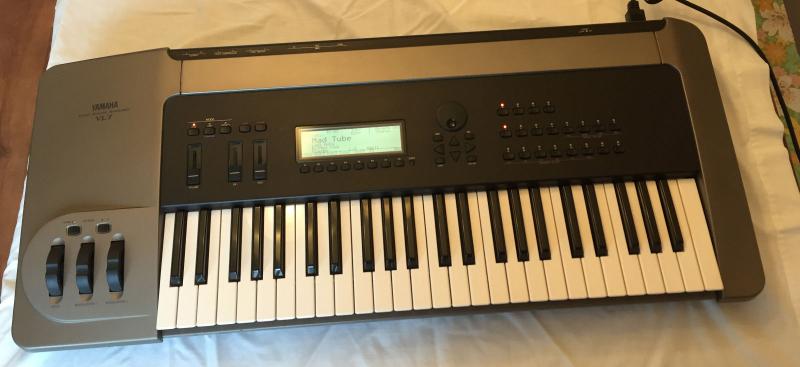

Yamaha | VL7


Virtual Acoustic Synthesis

It creates a computer physical model of an actual instrument inside the synthesizer. The VA instrument has a sound-producing device. This can be either a Pipe or a String. This is sounded by a driver: a pair of lips, a reed or a bow. The sound is then passed through modifiers before going to the internal effects. Both the instrument sound and the modifier parameters can be controlled by the Controller section.

Control of the instrument

A large number of factors can modify the sound-in the case of a wind instrument, the player's breath and mouth and lips (among others) affect the sound. In the case of a bowed string instrument, the player's arm movements, expressed in bow pressure and velocity, affect the sounds. With a VL synthesizer, the following parameters of an instrument can be changed: pressure, embouchure, pitch, vibrato, tonguing, amplitude, scream, breath noise, growl, throat format, dynamic filtering, Harmonic enhance, damping, and absorption.


A high degree of control can be exercised over the final timbre by using the 5-section modifier block: Harmonic Enhancer, Dynamic Filter, Frequency Equalizer, Impulse Expander, Resonator.

A synthesizer that doesn't sound like a synthesizer?

Changing a controller while a note is playing actually changes the behavior of the "instrument" and the way it is played.

An unparalleled degree of control

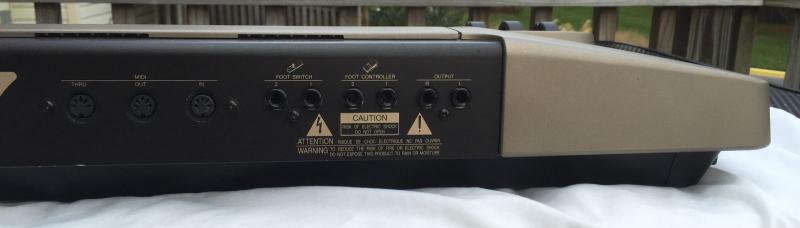

In addition to the velocity, aftertouch-responsive keyboard, pitchbend and modulation wheels, the VL7 has an additional control wheel (MW2), two continuous sliders, connectors for two foot pedals, connectors for two foot controllers, and a connector for a BC-2 breath controller.

Playing imaginary instruments

The VL7 supplies you with voices such as a saxophone mouthpiece attached to a trumpet body. The joy of Virtual Acoustic Synthesis is that you can experience imaginary instruments of this type, and express what you want to say in a musical way.

 V2: parameters updated and more suitable for "non real" sounds (recommended!)

Also as Rack version VL7m

Engine TypeDigital
Voices (max)1
LFO1 triangle saw square
Filter (VCF)1 Dynamic Filter (LPF, HPF, BPF, BEF, with resonance)
Envelope (VCA)6 Envelope Generators 2x AADSR 1xIHAIDR 1x DAS 2xD
FXFlanger, pitch change, distortion, Feed back delay. Reverberation.
Memory64 patches
Key typeKeys
Produced:1994 - 1994
Legend: Obvious Y: Yes, N: No, N/A: Not Applicable
VCO Voltage Controlled Oscillator DCO Digital Controlled Oscillator
LFO Low Frequency Oscillator Sub Sub Oscillator
VCF Voltage Controlled Filter VCA Voltage Controlled Amplifier
Velocity As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key. Aftertouch Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel.
Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise.
