Yamaha | TX802 |
|

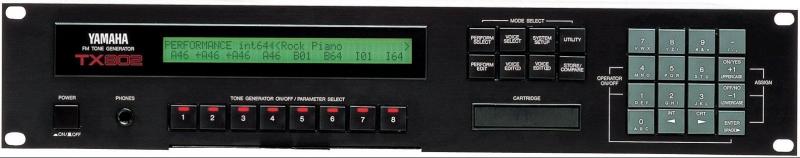

Description | Despite its name, the TX802 FM Tone Generator is basically a rack-module version of the DX7mkII with full 8-part multi-timbral operation for sequencing and/or key mapping. It has 16-voices of polyphony and six digital FM Operators, the same as in the DX7mkII. There are 128 preset and 64 user patches for your sounds, as well as an external memory cartridge slot. As if the large keyboard DX versions weren't difficult enough to program, the TX802's limited interface makes editing and programming your own sounds next to impossible without the help of external hardware or software editors. In the late 1980's, the TX802 was an excellent way to get a compact box full of Yamaha's DX sounds. |
| Brand | Yamaha |
| Model | TX802 |
| Device | Synth |
| Type | Rack |
| Engine Type | Digital |
| Engine | FM |
| Voices (max) | 16 |
| Multitimbral | 8 |
| Oscillators | 6 |
| LFO | Yes |
| Engine Detailed | Digital FM synthesizer with 6 Operators and 32 algorithms |
| Memory | 128 preset patches, 64 user patches |
| Keys | 0 |
| Key type | N/A |
| Velocity | N/A |
| Aftertouch | N/A |
| Midi | I-O-T |
| Produced: | 1987 - 1987 |
| Legend: | Obvious | Y: Yes, N: No, N/A: Not Applicable | |
| VCO | Voltage Controlled Oscillator | DCO | Digital Controlled Oscillator |
| LFO | Low Frequency Oscillator | Sub | Sub Oscillator |
| VCF | Voltage Controlled Filter | VCA | Voltage Controlled Amplifier |
| Velocity | As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key. | Aftertouch | Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel. |
| Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise. | |||
