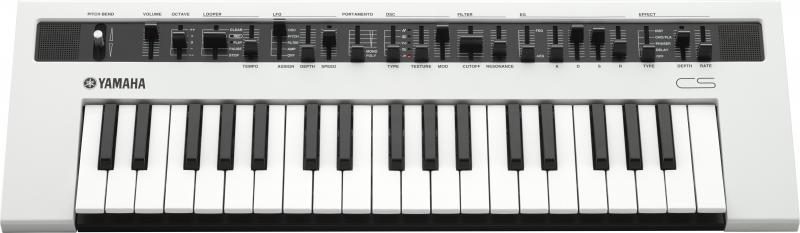

Yamaha | Reface CS


Analog Physical Modeling Engine with multiple synthesis and oscillator types.

Each oscillator type has flexible LFO and ADSR routing plus unique TEXTURE and MOD controls that work as follows:

OSC type: Multi-saw
TEXTURE: Adds sub-oscillator
MOD: Layers multiple sawtooth waves

OSC type: Pulse
TEXTURE: Changes pitch of second pulse wave
MOD: Changes pulse width

OSC type: Oscillator Sync
TEXTURE: Changes pitch and tone of second oscillator
MOD: Sets pitch change amount

OSC type: Ring Modulation
TEXTURE: Changes pitch of first oscillator
MOD: Changes pitch of second oscillator

OSC type: FM
TEXTURE: Sets modulation amount
MOD: Changes pitch of the modulator

Onboard effects processor with five types add depth to your sound

The effect types are: OFF (effect bypass,) Delay, VCM Phaser, VCM Chorus/Flanger and Distortion

8-note polyphony

Allows complex chords and pads or switch to mono Mode for fat synth bass or solo leads.

Based on the FS action found on the flagship Motif XF, HQ (High Quality) Mini Keys provide premium feel and response for fast, accurate and natural playing.
Integrated Phrase Looper: capture song ideas or just jam
Continuous controller pedal input for volume control
2W 3cm stereo speaker system lets you play any place, any time
Specially designed bass reflex port technology enhances bass response for full, rich sound
Uses six "AA" batteries with five hours of life
USB "TO HOST" allows MIDI connectivity to your USB-equipped computer or iOS device
Dual 1/4"unbalanced line outputs provide connection to mixers, audio interfaces, DI boxes and more
A 3.5mm aux line input lets you connect and hear mobile devices, tablets and more through the instrument

Soundmondo is a free sound sharing community that lets you discover, create and share reface Voices and Set Lists using Google Chrome any place, any time you're online.

Powered by Web MIDI, Soundmondo is simple to use - just connect reface to Chrome and you're ready to create or start browsing.
ModelReface CS
Engine TypeDigital
Voices (max)8
LFO1 Triangle
Engine Detailed1 OSC, Pulse, Super Saw
Filter (VCF)1 18dB Slope, Low Pass, Resonance
Envelope (VCA)1 ADSR
FXDistortion, VCM Chorus/Flanger, VCM Phaser, Delay
SequencerPhrase Looper: 2,000 note events
Key typeKeys, mini
MidiI-O, USB
Legend: Obvious Y: Yes, N: No, N/A: Not Applicable
VCO Voltage Controlled Oscillator DCO Digital Controlled Oscillator
LFO Low Frequency Oscillator Sub Sub Oscillator
VCF Voltage Controlled Filter VCA Voltage Controlled Amplifier
Velocity As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key. Aftertouch Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel.
Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise.
