Description | |

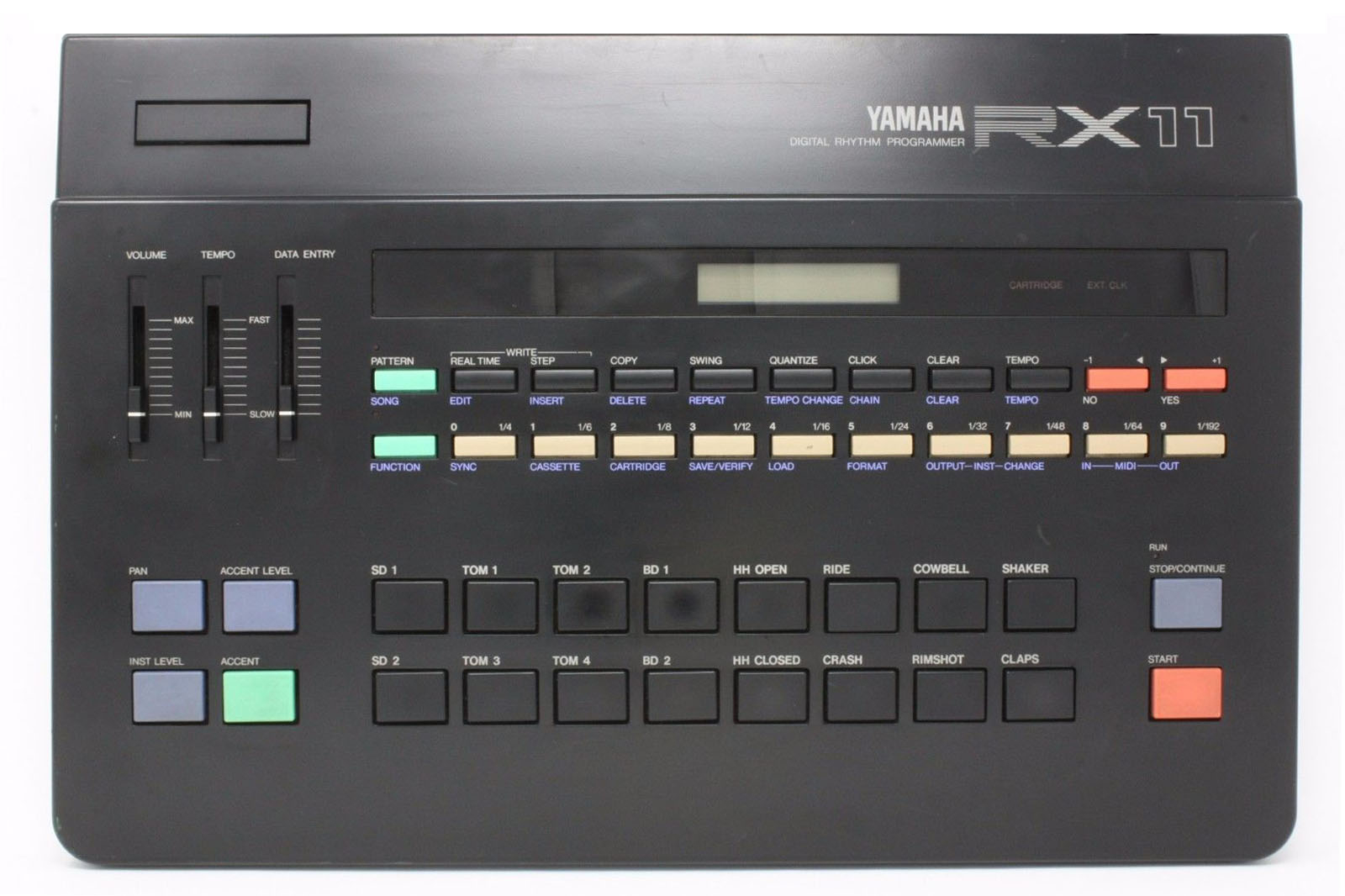

| Brand | Yamaha |
| Model | RX11 |
| Device | Drum |
| Type | Desktop |
| Engine Type | Digital |
| Engine | PCM |
| Voices (max) | 16 |
| Multitimbral | 1 |
| Oscillators | 1 |
| LFO | Basic pitch modulation |
| Engine Detailed | 29 internal 12-bit PCM samples (Bass, Snare, Rimshot, Tom Toms, Electric Toms, Hi Hats, Ride Cymbal, Crash Cymbal, Chinese Cymbal, Claps, Tambourine, Cowbell, Shaker). Additional 28 voices from ROM and 12 voices from RAM. |
| Envelope (VCA) | Attack / Decay |
| FX | Reverse, Damp, Pitch Bend, Accent |
| Memory | 100 Patterns, 20 Songs, 3 Chains. Accepts RAM4 to store sequence & voice data |
| Sequencer | Real Time and Step Time Drum Sequencer. 100 Patterns (99 measures) |
| Recording | 10 songs (Maximum 255 Parts per Song) |
| Keys | 16 |
| Key type | Pads |
| Velocity | N |
| Aftertouch | N |
| Audio | stereo and 10 individual outs |
| Midi | I-O |
|
Produced: | 1986 - 1986 |
| Legend: |
Obvious |
Y: Yes, N: No, N/A: Not Applicable |
| VCO |
Voltage Controlled Oscillator |
DCO |
Digital Controlled Oscillator |
| LFO |
Low Frequency Oscillator |
Sub |
Sub Oscillator |
| VCF |
Voltage Controlled Filter |
VCA |
Voltage Controlled Amplifier |
| Velocity |
As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key. |
Aftertouch |
Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel. |
| Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise. |
