Description | |

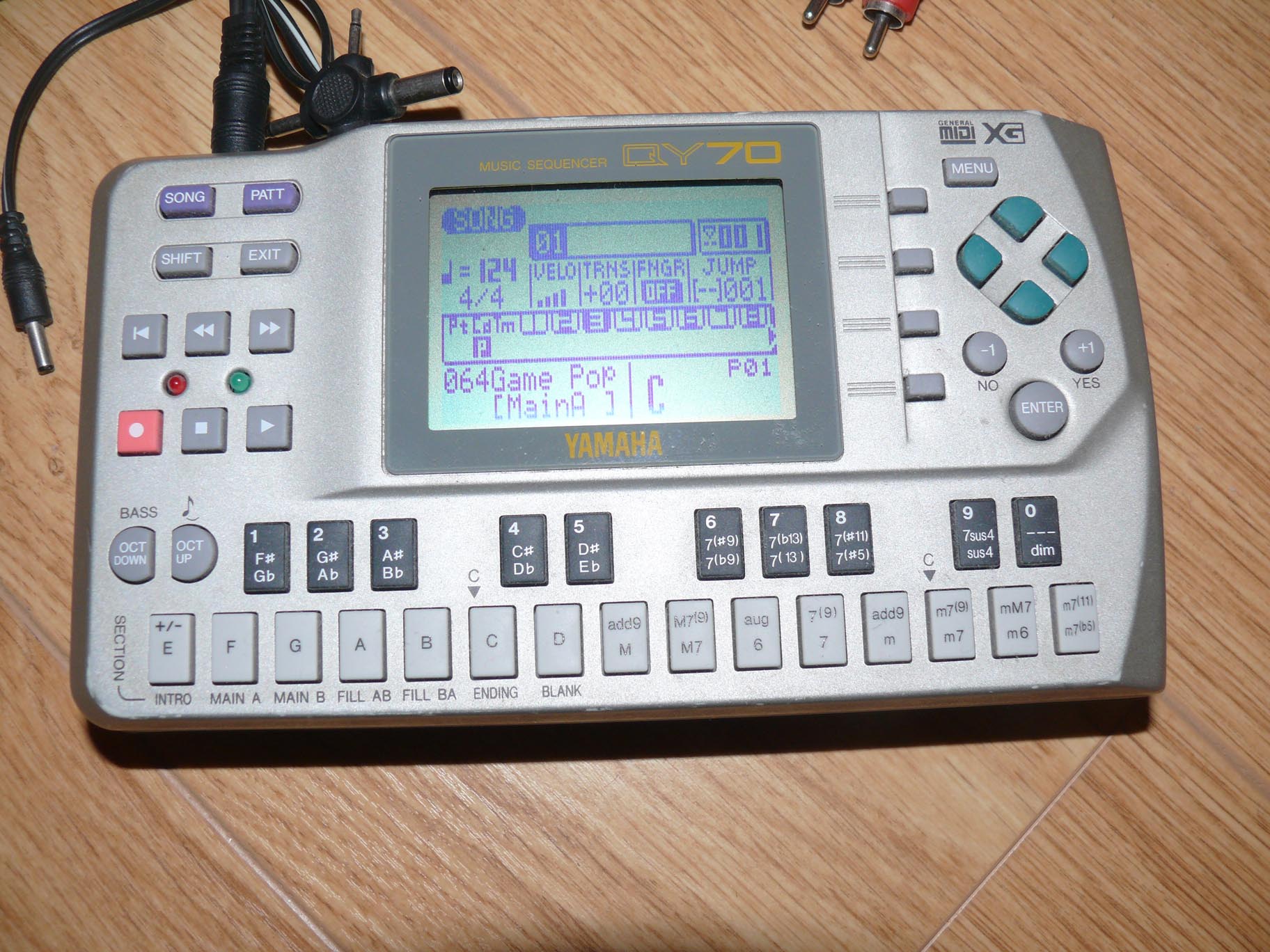

| Brand | Yamaha |
| Model | QY-70 |
| Device | Synth |
| Type | Desktop |
| Engine Type | Digital |
| Engine | AWM2 |
| Voices (max) | 32 |
| Multitimbral | 16 |
| Oscillators | 1 |
| Engine Detailed | AWM2 |
| FX | 11 types of chorus and reverb |
| Memory | 519 normal voices, 20 drum kit voices |
| Sequencer | 4,167 preset phrases 48 user phrases per user style, 768 preset patterns (128 preset styles x 6 sections) 384 user patterns (64 user styles x 6 sections) Sections: Intro, Main A, Main B, Fill AB,Fill BA, Ending |
| Recording | 20 songs: 16 sequencer tracks,pattern track (Pt), chord track (Cd),tempo track (Tm) Pattern: 8 pattern phrase tracks, 32,000 notes |
| Keys | 24 |
| Key type | Buttons |
| Velocity | N |
| Aftertouch | N |
| Midi | I-O |
|
Produced: | |
| Legend: |
Obvious |
Y: Yes, N: No, N/A: Not Applicable |
| VCO |
Voltage Controlled Oscillator |
DCO |
Digital Controlled Oscillator |
| LFO |
Low Frequency Oscillator |
Sub |
Sub Oscillator |
| VCF |
Voltage Controlled Filter |
VCA |
Voltage Controlled Amplifier |
| Velocity |
As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key. |
Aftertouch |
Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel. |
| Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise. |
