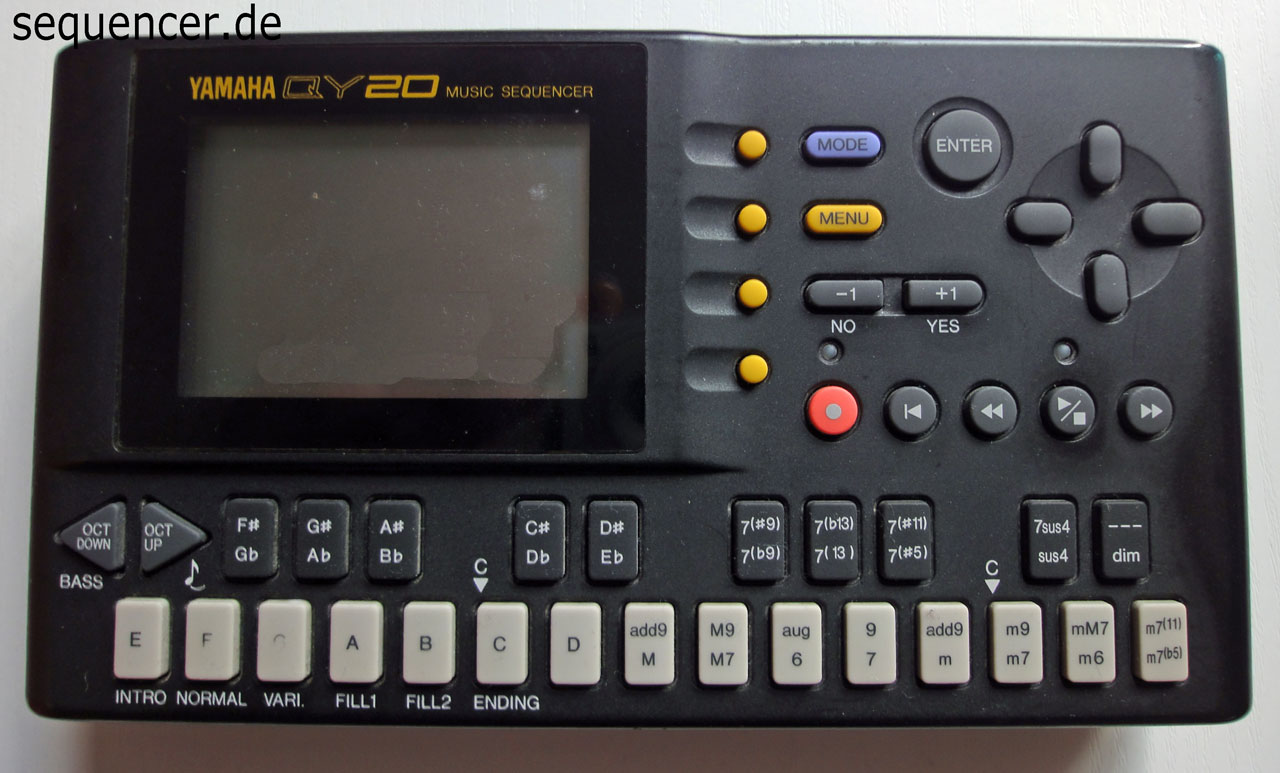

Yamaha | QY-20 |
|
Description | |
| Brand | Yamaha |
| Model | QY-20 |
| Device | Synth |
| Type | Desktop |
| Engine Type | Digital |
| Engine | AWM |
| Voices (max) | 28 |
| Multitimbral | 16 |
| Oscillators | 1 |
| LFO | 1 Sine |
| Engine Detailed | AWM engine |
| Filter (VCF) | 1 lpf reso 2 Pole |
| Envelope (VCA) | 1x ADR 1x AD1D2 |
| Memory | 100 patches |
| Drums | 100 voices, 8 kits |
| Sequencer | 600 (100 patterns x 6 sections: Intro, Normal, Variation, Fill 1, Fill 2, Ending). 25 preset chords. 4 tracks |
| Recording | 8 Track. 28,000 notes 20 songs 100 user patterns |
| Keys | 24 |
| Key type | Buttons |
| Velocity | N |
| Aftertouch | N |
| Midi | I-O |
| Produced: | 1992 - 1992 |
| Legend: | Obvious | Y: Yes, N: No, N/A: Not Applicable | |
| VCO | Voltage Controlled Oscillator | DCO | Digital Controlled Oscillator |
| LFO | Low Frequency Oscillator | Sub | Sub Oscillator |
| VCF | Voltage Controlled Filter | VCA | Voltage Controlled Amplifier |
| Velocity | As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key. | Aftertouch | Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel. |
| Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise. | |||
