Description | |
| Brand | Yamaha |

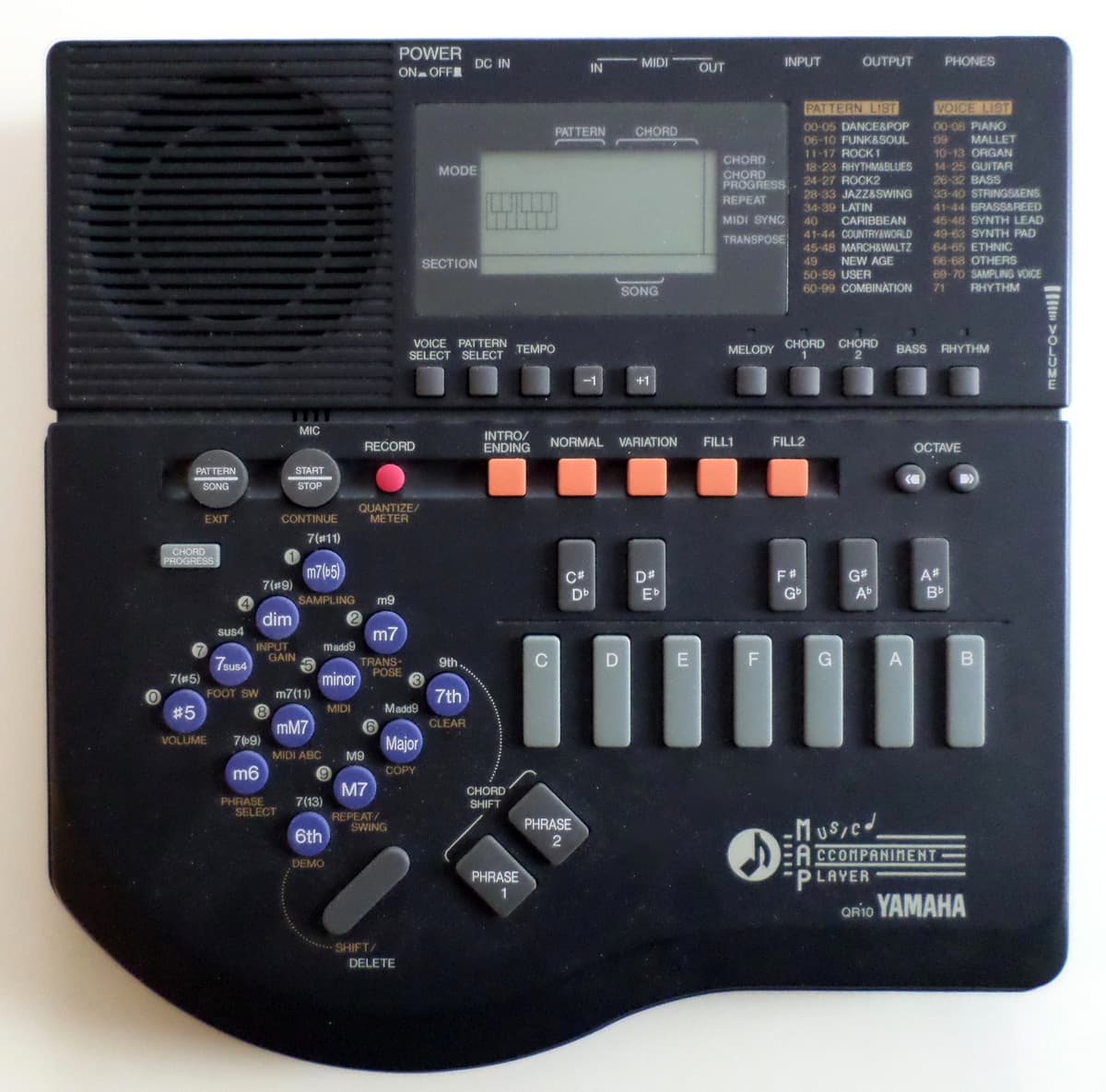

| Model | QR-10 |
| Device | Synth |
| Type | Desktop |
| Engine Type | Digital |
| Engine | AWM, Sample |
| Voices (max) | 28 |
| Oscillators | 1 |
| Engine Detailed | AWM, sample |
| Sampler | 8-bit, 3.2 seconds |
| Memory | 69 patches, 60 drum patches, 2 samples |
| Drums | 50 Preset patterns, 40 combination patterns, 10 user |
| Sequencer | 4 tracks (Chord 1, Chord 2, Bass, Rhythm), 6 patterns (Intro, Normal, Variation, Fill 1, Fill 2, Ending) |
| Recording | 50 preset/user |
| Keys | 12 |
| Key type | Buttons |
| Velocity | N |
| Aftertouch | N |
| Midi | I-O |
|
Produced: | |
| Legend: |
Obvious |
Y: Yes, N: No, N/A: Not Applicable |
| VCO |
Voltage Controlled Oscillator |
DCO |
Digital Controlled Oscillator |
| LFO |
Low Frequency Oscillator |
Sub |
Sub Oscillator |
| VCF |
Voltage Controlled Filter |
VCA |
Voltage Controlled Amplifier |
| Velocity |
As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key. |
Aftertouch |
Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel. |
| Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise. |
