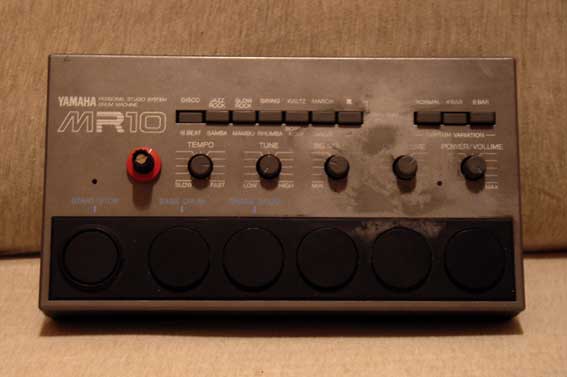

Yamaha | MR-10


The analog Yamaha MR-10 drum machine is rather unknown and could perhaps be described as a cheap preset version of the classical Roland TR-606, as they sound very similar. This little drum machine's sound is very phat and analog, just like a Roland TR-606/808, just no programming functions are available (only pads to play along). On the other hand, the 12 preset beats are well programmed and sound really groovy. Separate volume controls for bass drum, snare and hihats, plus a tune controller for all sounds (except the bass drum) offer enough possibilities for changing the output. Technically seen, just like with the Boss DR-110, these analog drum circuits are state-of-the-art and probably haven't been built better since as digital drum machines were gaining ground at the time. The sturdy analog technology allows very interesting modifications which I haven't fully explored yet. Up to now, I've only built in mute switches for the drum sounds to make playing this machine more interesting.
Engine TypeAnalog
EngineVCO Preset
Voices (max)5
Drums5 sounds: Bass, Snare, Tom Hi/Low, Cymbal
Sequencer14 rhythms, 3 variations
Key typePads
Produced:1982 - 1982
Legend: Obvious Y: Yes, N: No, N/A: Not Applicable
VCO Voltage Controlled Oscillator DCO Digital Controlled Oscillator
LFO Low Frequency Oscillator Sub Sub Oscillator
VCF Voltage Controlled Filter VCA Voltage Controlled Amplifier
Velocity As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key. Aftertouch Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel.
Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise.
