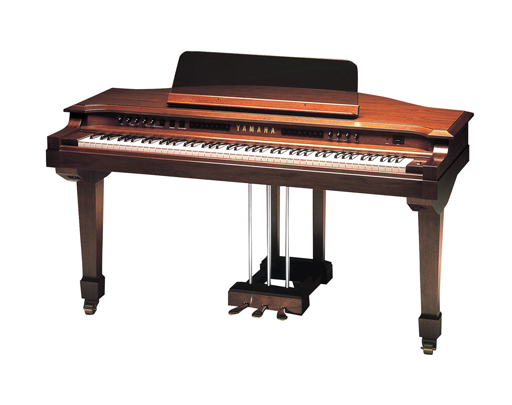

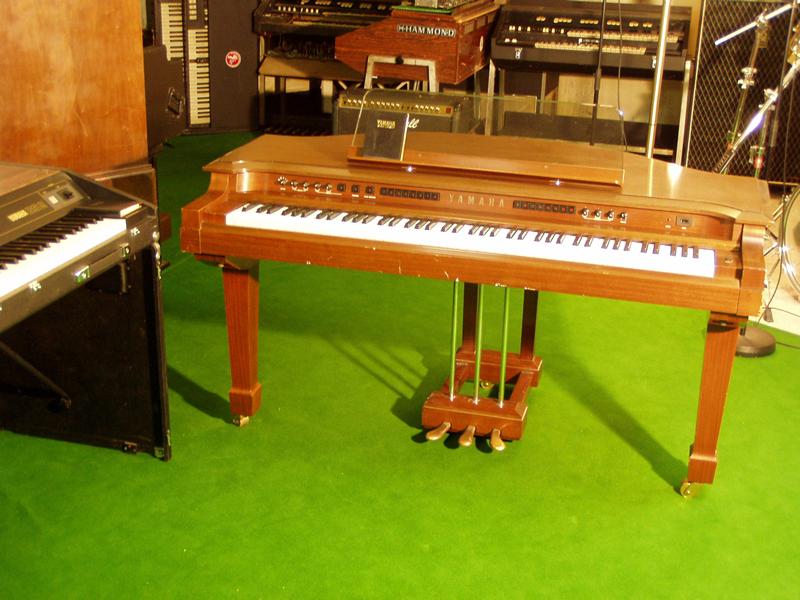

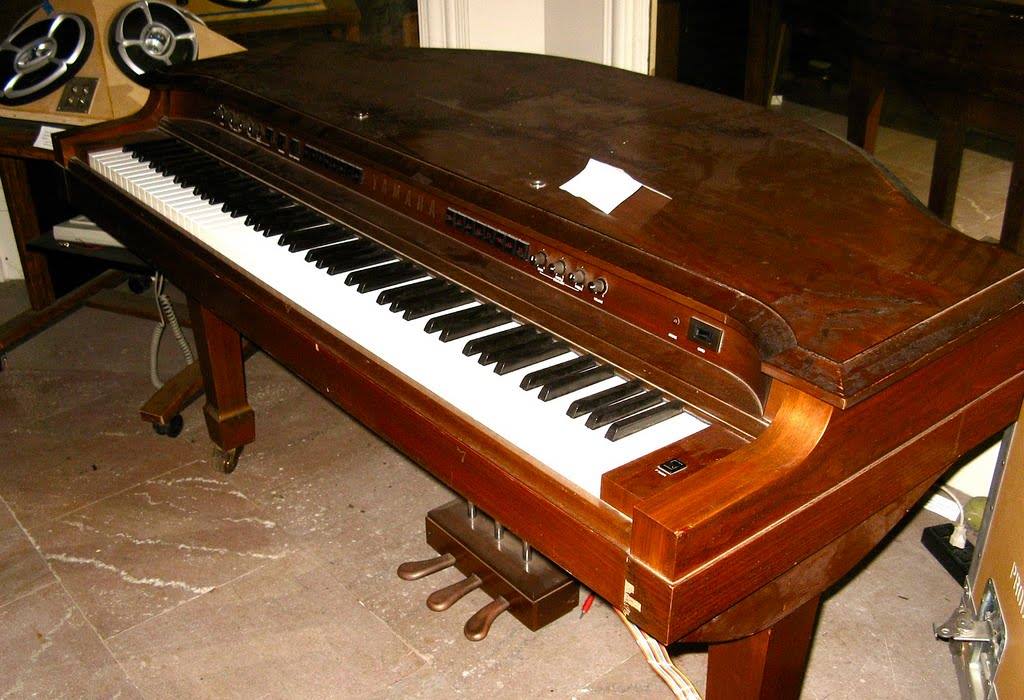

Yamaha | GS1 |
|
Description | The Yamaha GS1 is a pressure and velocity sensitive 88 key (16 voice, 4+4 operator) FM synthesizer, featuring vibrato, tremolo, EQ (low, mid, high), chorus, and 16 presets (presets loaded via card reader). |
| Brand | Yamaha |
| Model | GS1 |
| Device | Synth |
| Type | Keys |
| Engine Type | Digital |
| Engine | FM |
| Voices (max) | 16 |
| Multitimbral | 2 |
| Oscillators | 4 |
| LFO | 1 Vibrato |
| Engine Detailed | 4op FM |
| Filter (VCF) | EQ band pass and low/high shelving (Bass Middle Treble) |
| FX | Chorus, tremolo |
| Memory | 16 presets |
| Keys | 88 |
| Key type | Keys |
| Velocity | Y |
| Aftertouch | Poly |
| Produced: | 1981 |
| Legend: | Obvious | Y: Yes, N: No, N/A: Not Applicable | |
| VCO | Voltage Controlled Oscillator | DCO | Digital Controlled Oscillator |
| LFO | Low Frequency Oscillator | Sub | Sub Oscillator |
| VCF | Voltage Controlled Filter | VCA | Voltage Controlled Amplifier |
| Velocity | As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key. | Aftertouch | Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel. |
| Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise. | |||
