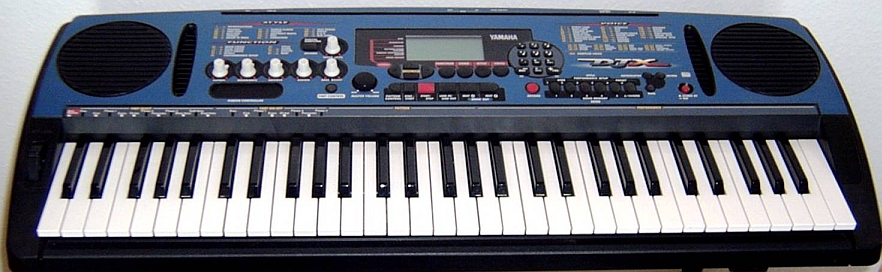

Yamaha | DJX |
|
Description | |
| Brand | Yamaha |
| Model | DJX |
| Device | Synth |
| Type | Keys |
| Engine Type | Digital |
| Engine | AWM |
| Engine Detailed | AWM: Advanced Wave Memory: 283 sounds |
| Sampler | 8-bit, 22kHz, 6 sample pads (3 loops, 3 one-shots), 128KB memory (about 6 seconds for all pads, maximum 3 seconds per pad) |
| Filter (VCF) | Dynamic Digital Filter with resonance, cutoff |
| Memory | 283 Presets |
| Sequencer | 100 presets with variations |
| Arpeggiator | Several patterns |
| Recording | 6 tracks |
| Keys | 61 |
| Key type | Keys |
| Velocity | N |
| Aftertouch | N |
| Midi | I-O-T |
| Extra info | Also know as PSRD1-DJX |
| Produced: | 1997 - 1997 |
| Legend: | Obvious | Y: Yes, N: No, N/A: Not Applicable | |
| VCO | Voltage Controlled Oscillator | DCO | Digital Controlled Oscillator |
| LFO | Low Frequency Oscillator | Sub | Sub Oscillator |
| VCF | Voltage Controlled Filter | VCA | Voltage Controlled Amplifier |
| Velocity | As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key. | Aftertouch | Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel. |
| Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise. | |||
