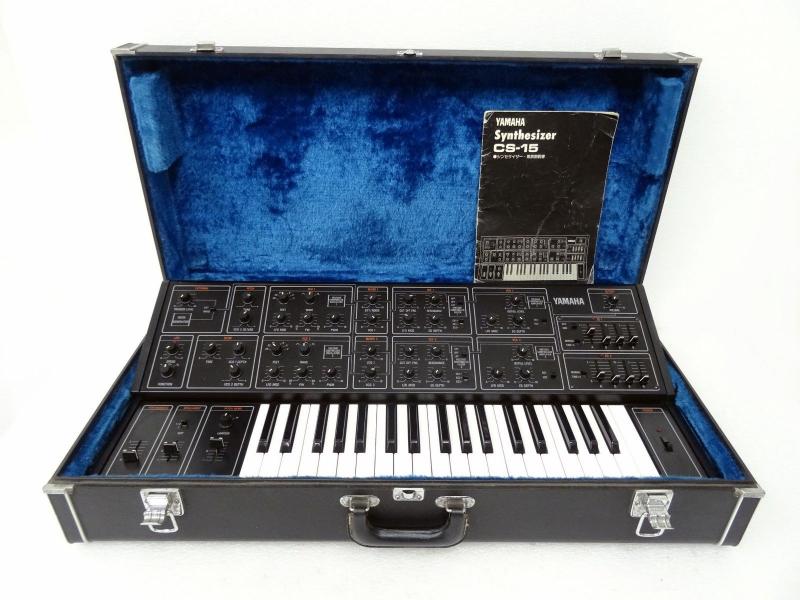

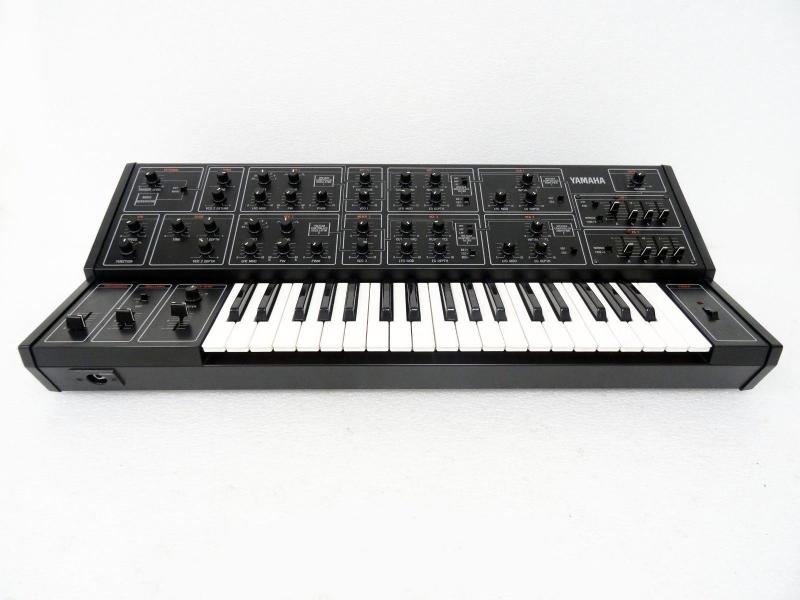

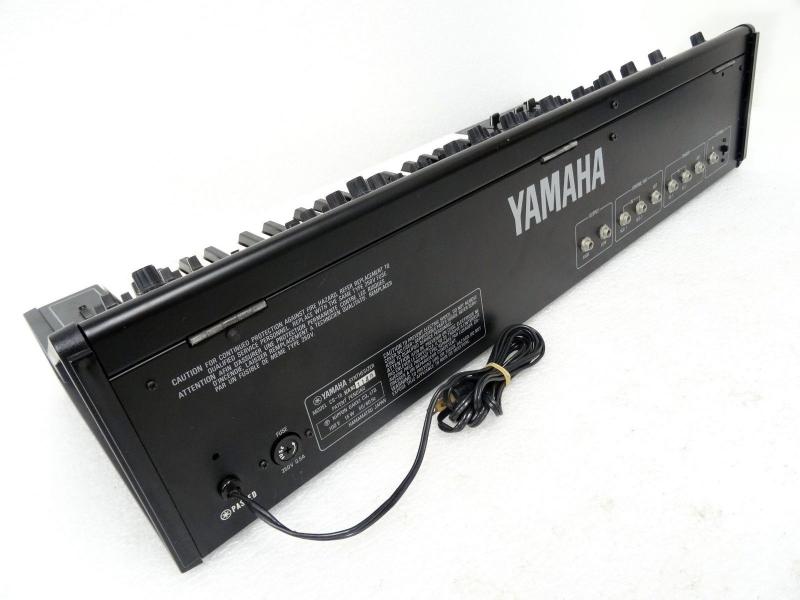

Yamaha | CS15 |
|
Description | This synth really has its own sound. The CS-15's got style. Built like a tank with a lot of nice knobs and best of all, not one but two of those funny sounding multimode filters. It's actually a duophonic / bitimbral synth but you have to connect it to CV (Hz/V like Korg not V/Oct) to get the extra voice. Each of the two VCOs has its own CV/Gate control. The best things about it are the flexibility of the VCFs and the routings to the filters and envelopes. You can rout VCO 1 to both VCFs and the VCFs to any of the envelopes positive or negative voltage. The VCFs are 12 dB/Oct and are switchable between low, band or high-pass. They are the key to the nice sound of the Yamaha CS family. Other nice features are noise, external-in for processing other sounds, LFO with Sample & Hold for those bubbling sounds and an individual auto-bend for the VCOs. The CS-15 is great for strange blips, bass and tiny highpass sounds. The ADSRs aren't as fast as the CS-10 but they are ok. A nice feature is the 'brilliance' slider that can control either or both VCFs. At their extremely low prices, the CS-15 is an analog that's definitely worth checking out for yourself. |
| Brand | Yamaha |
| Model | CS15 |
| Device | Synth |
| Type | Keys |
| Engine Type | Analog |
| Engine | VCO |
| Voices (max) | 1/2 |
| Oscillators | 2 |
| LFO | 1 with triangle, saw and S&H waveforms |
| Engine Detailed | 2 VCO + white noise (Triangle, sawtooth, variable PW) |
| Filter (VCF) | 2 multimode (LP/BP/HP). Controlled by either or both ADSRs. |
| Envelope (VCA) | ADSR |
| Keys | 37 |
| Key type | Keys |
| Velocity | N |
| Aftertouch | N |
| Audio | External Audio in |
| CV-gate | CV/Gate x2 |
| Produced: | 1978 - 1983 |
| Legend: | Obvious | Y: Yes, N: No, N/A: Not Applicable | |
| VCO | Voltage Controlled Oscillator | DCO | Digital Controlled Oscillator |
| LFO | Low Frequency Oscillator | Sub | Sub Oscillator |
| VCF | Voltage Controlled Filter | VCA | Voltage Controlled Amplifier |
| Velocity | As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key. | Aftertouch | Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel. |
| Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise. | |||
