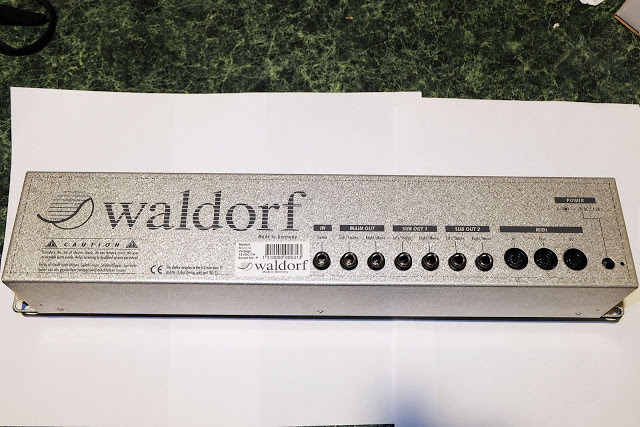

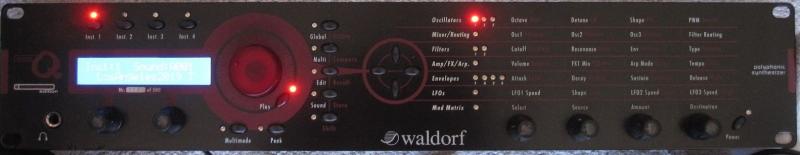

|Model||Micro Q Rack Phoenix Edition|
|LFO||3 LFOs up to audio range;|
|Engine Detailed||5 oscillators per voice (Pulse with Pulse Width Modulation, Sawtooth, Triangle, Sine, 2 wavetables with 128 waves each and sub-oscillator per alt-wave); Noise generator|
|Filter (VCF)||2 Filters (including FM and distortion): Low Pass (12dB/24dB), Band Pass (12dB/24dB), High Pass (12dB/24dB), Notch (12dB/24dB), Comb Filter (positive/negative feedback)|
|Envelope (VCA)||4 envelopes, enhanced ADSR configuration with loop and one shot function, bipolar; different trigger modes for each envelope, poly, mono, dual, unison, manual trigger etc.|
|FX||2 effects per program, up to 5 effects in Multimode (Effects: Chorus, Flanger, Phaser, Distortion, Delay, 5 FX, Vocoder)|
|Memory||300 single programs, 100 multi programs|
|Drums||20 Drum maps|
|Arpeggiator||16 preset plus 1 user pattern, including accents, timing information, swing, glide, chords and more|
|Extra info||Just another Front. Only 500 made|
Produced:||2000 - 2001
||Y: Yes, N: No, N/A: Not Applicable
||Voltage Controlled Oscillator
||Digital Controlled Oscillator
||Low Frequency Oscillator
||Voltage Controlled Filter
||Voltage Controlled Amplifier
||As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key.
||Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel.
|Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise.
