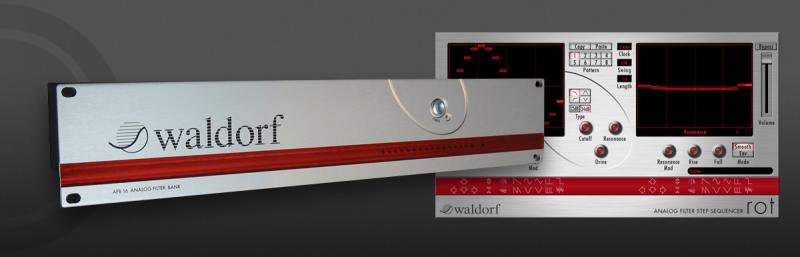

Description	The AFB16 Analog Filter Bank was the world's first "analog plug-in", making it a totally unique innovation. Combining the sonic superiority of Waldorf’s analog technology with the flexibility of a digital musical computer system, the Waldorf AFB16 can be seamlessly integrated into the computer-based production environment of the modern studio. Connecting the AFB16 to the computer using a standard USB cable, the AFB16 automatically integrates itself into the digital production environment making 16 real analog filters available to any compatible host system. Full dynamic control of the filters is achieved inside the host system and plug-ins like the ROT Analog Filter Step Sequencer, the PPG Red or the Messing.
Brand	Waldorf
Model	AFB-16 Analog Filter Bank
Device	Misc
Type	Rack
Engine Type	Filter
Engine	Analog
Filter (VCF)	16 12dB Slope (2-pole), 24dB Slope (4-pole), Low Pass
Sequencer	ROT (German for "red") is a pattern based step sequencer that is capable of producing tempo-synchronized filter patterns for cutoff and resonance
Keys	0
Key type	N/A
Velocity	N/A
Aftertouch	N/A
Audio	USB
Midi	USB
Produced:	2003 - 2003

Legend:		Obvious	Y: Yes, N: No, N/A: Not Applicable
VCO	Voltage Controlled Oscillator	DCO	Digital Controlled Oscillator
LFO	Low Frequency Oscillator	Sub	Sub Oscillator
VCF	Voltage Controlled Filter	VCA	Voltage Controlled Amplifier
Velocity	As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key.	Aftertouch	Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel.
Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise.
