Voice of Saturn | Sequencer

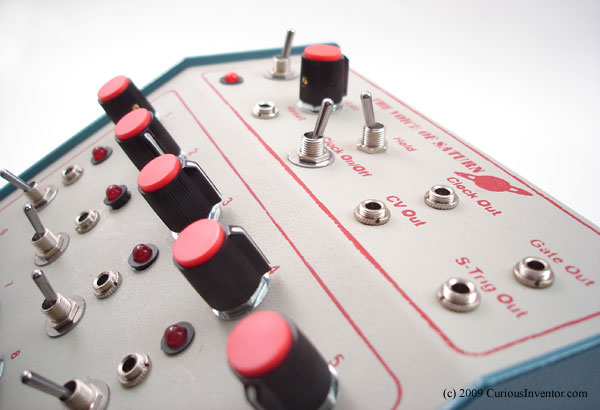

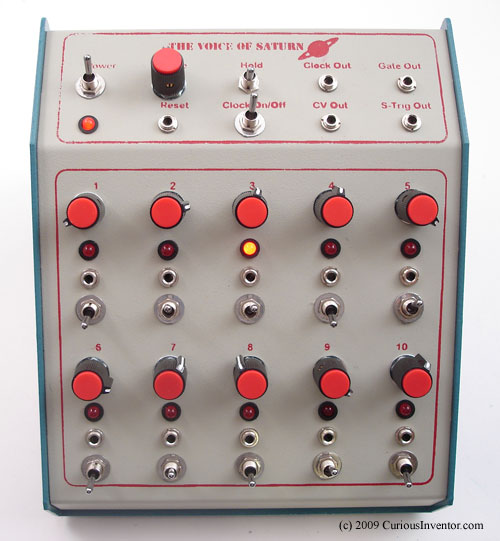

|This is a 10 step analog sequencer, which basically steps through 10 different voltage levels that are set by the black knobs. The output control voltage and trigger signals are typically used to control pitch, filters, drum triggers and an endless number of other parameters on other synths.
The sequencer has two main outputs: the CV (control voltage) and gate output. The gate output can be thought of as the trigger or note-on message, and the CV as the pitch or general purpose control level. The knobs on each step adjust the CV level for that step, and the switches control whether the trigger signal makes it to the gate output.
You can shorten the sequence by connecting an 1/8" audio cable from a step's jack to the reset jack on top.
Important: The sequencer can be driven by an external clock by plugging into the "Clock Out" jack on top. However, you must first turn off the Clock switch to prevent the internal clock from fighting this external signal. If the Clock switch is on, you can tap into the clock signal through the "Clock Out" jack and use it to drive other equipment.
The best way to set each CV level is to turn the clock off, and toggle the hold switch to manually step through the sequence. The hold switch stops the sequence when the clock is on, too.
+ The 10 step sequence can be shortened by connecting a 1/8" male-male audio cable from a step jack to the main reset jack.
+ The internal clock can be bypassed so that an external clock can drive the VoS Sequencer. We're not entirely sure what types of clocks it's compatible with, however. The internal clock can also be output to drive another device.
+ Features both a Gate out and S-Trigger out for older Moogs.
+ Battery powered: you may want to add a fixed voltage supply to keep the CV levels from drifting as the battery dies, although we've found it to last a long time.
+ When the clock switch is off, the hold switch can be used to manually step through the sequence.
+ Note that the gate on this only triggers on phrase starts. In other words, consecutive "on" steps won't retrigger, only an "on" right after a "off" step.
With an external clock input you can slave the VoS sequencer to nearly anything and using the reset input you can change sequence length to be from 1-10 steps.
|Brand||Voice of Saturn|
|Legend:||Obvious||Y: Yes, N: No, N/A: Not Applicable|
|VCO||Voltage Controlled Oscillator||DCO||Digital Controlled Oscillator|
|LFO||Low Frequency Oscillator||Sub||Sub Oscillator|
|VCF||Voltage Controlled Filter||VCA||Voltage Controlled Amplifier|
|Velocity||As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key.||Aftertouch||Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel.|
|Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise.|
