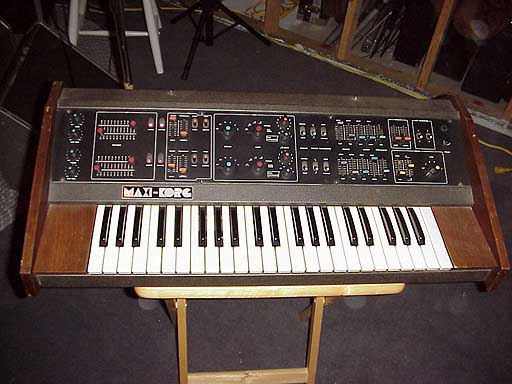

Univox | Maxi-Korg |
|
Description | |
| Brand | Univox |
| Model | Maxi-Korg |
| Device | Synth |
| Type | Keys |
| Engine Type | Analog |
| Engine | VCO |
| Voices (max) | 2 |
| Oscillators | 2 |
| Sub | 2 |
| LFO | LFO x2: PWM + Vibrato |
| Noise | Y |
| Engine Detailed | VCO x2: Scale (64', 32', 16', 8', 4', 2'), Waveform (triangle, square, sawtooth, pulse, PWM), Pink Noise, White Noise; SUB OSC x2: Scale (32', 16', 8', 4', 2') |
| Filter (VCF) | VCF x4: Traveler (High Pass, Low Pass) |
| Envelope (VCA) | VCA x2 + ENVELOPE GENERATOR x2: Attack Time, Singing Level, Range Selector, Mode Selector |
| Keys | 44 |
| Key type | Keys |
| Velocity | No |
| Aftertouch | No |
| Produced: | 1975 - 1975 |
| Legend: | Obvious | Y: Yes, N: No, N/A: Not Applicable | |
| VCO | Voltage Controlled Oscillator | DCO | Digital Controlled Oscillator |
| LFO | Low Frequency Oscillator | Sub | Sub Oscillator |
| VCF | Voltage Controlled Filter | VCA | Voltage Controlled Amplifier |
| Velocity | As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key. | Aftertouch | Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel. |
| Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise. | |||
