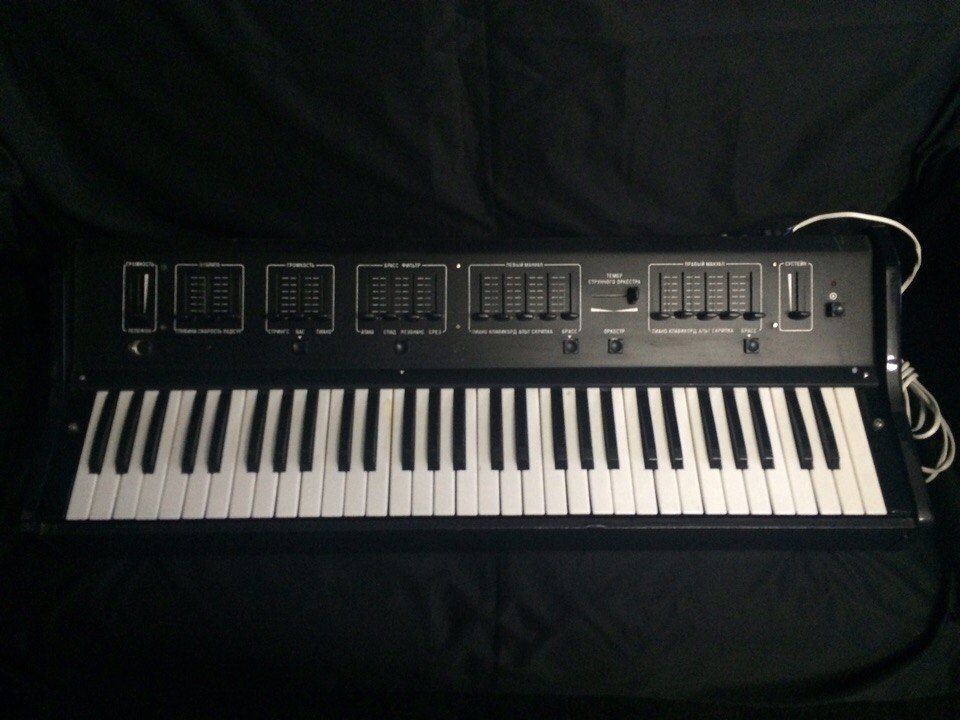

Tom | 1501


Tom - 1501 is a portable instrument intended for solo playing musical compositions of any genre. It is also can be successfully used in ensembles. Tom - 1501 is a one-manual keyboard instrument that can play the following soundings: piano, clave, orchestral ensemble, viola, contrabass and wind instruments.

The instrument consists of the following sections:
assigning generator
12 manipulators

generator of infra low frequency
delay line
brass filter
block of filters
output amp
power block
volume pedal
sustain pedal

The only thing that forms all the tones is the main generator. That's why a possibility of instrument's detuning in the process of operation is eliminated. The basis of timbres formation of the instrument is a synthesis of 6 registers on the left side of the keyboard and 5 registers on the right one. Tom - 1501 gives one a possibility to change sounding during playing the composition using such special effects as vibrato, sustain, chorus.

The supply voltage - 220-230V/50Hz. For use with 110/127V, a voltage converter is necessary.

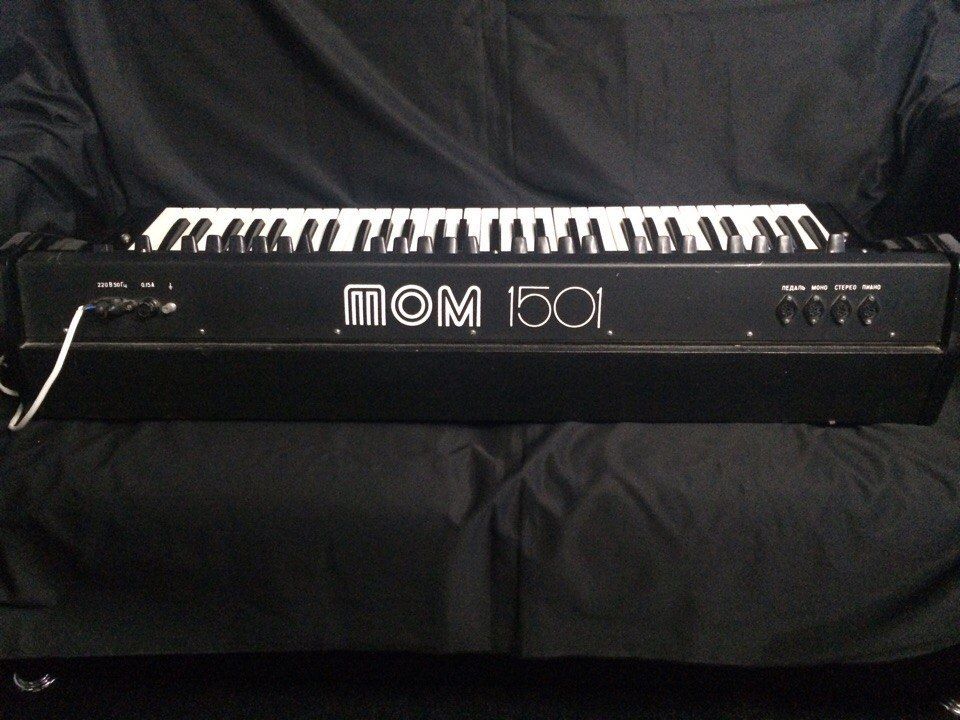

TOM-1501 has 5-DIN output output connections.
Dimensions - 920х360х195 mm
Weight (upright not included) - max 13 kg
Engine TypeAnalog
EngineVCO Preset
Voices (max)1
Engine DetailedPreset
Filter (VCF)Resonance
Envelope (VCA)ASR
FXVibrato, Chorus
Memory6 Presets, piano, clave, orchestral ensemble, viola, contrabass and wind
Key typeKeys
Produced:1985 - 1990
Legend: Obvious Y: Yes, N: No, N/A: Not Applicable
VCO Voltage Controlled Oscillator DCO Digital Controlled Oscillator
LFO Low Frequency Oscillator Sub Sub Oscillator
VCF Voltage Controlled Filter VCA Voltage Controlled Amplifier
Velocity As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key. Aftertouch Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel.
Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise.
