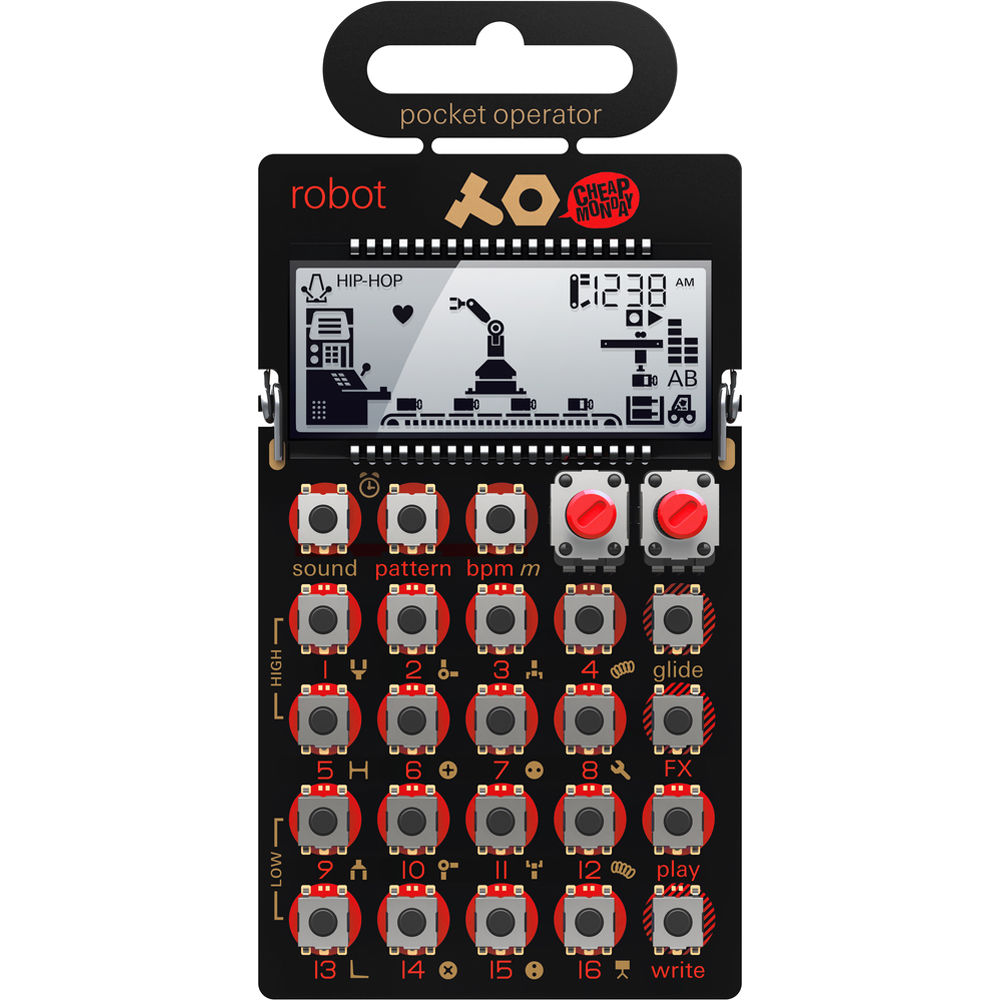

Teenage Engineering | PO-28 Robot

Description

Small enough to fit in your pocket and powered by a pair of AAA batteries, the Teenage Engineering PO-28 Pocket Operator Robot Synthesizer features synthesized sounds and waveforms as well as a micro drum kit with 16 punch-in effects including distortion, repeat, filters, fill-ins, glitches, and noise effects.

The synthesizer parameters can be locked, while a 16-step sequencer, which holds 16 patterns in memory, can be chained into a song with up to 128 patterns. An integrated clock and alarm clock expand the creative possibilities of the instrument. A jam-sync function with 3.5mm audio in and out connections allows for multiple synthesizer units to be linked together.

Using high-quality components with low-power consumption, the synthesizer is cleverly designed with a Silabs EFM 32 Gecko CPU, a Cirrus Logic DAC, and a Knowles speaker placed under a novel animated LCD on a single circuit board. A foldout stand makes it easier to play and rear panel speaker solder terminals allow you hook up the unit to a larger sound system. An optional tailor-made silicone pro case (sold separately) adds anti-slip feet, battery protection, and professional-feel buttons to this very unique music-making device.
BrandTeenage Engineering
ModelPO-28 Robot
DeviceSynth
TypeDesktop
Engine TypeDigital
EnginePM, ROM
Voices (max)16
Multitimbral1
FX16 effects
Memory16 sounds. Sound 16 is a drumkit
Sequencer16 step, 16 patterns
Recording2 Channel, 128 patterns chained
Keys16
Key typeButtons
VelocityN
AftertouchN
CV-gatesync
Produced:2016
Legend: Obvious Y: Yes, N: No, N/A: Not Applicable
VCO Voltage Controlled Oscillator DCO Digital Controlled Oscillator
LFO Low Frequency Oscillator Sub Sub Oscillator
VCF Voltage Controlled Filter VCA Voltage Controlled Amplifier
Velocity As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key. Aftertouch Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel.
Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise.
