Technosaurus | Cyclodon |
|

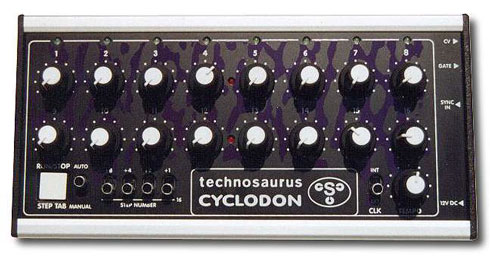

Description | The Cyclodon is a 16-step analog sequencer. The way it works is it basically runs in a loop. There is a Tempo adjust knob, but no visual indication of what the actual BPM is. There are another 16 knobs, each of which represent a 16th-note in the 1-bar loop. Adjusting each knob determines what pitches will be played at that step, but you can not program rests. This information is transmitted out via CV/Gate, an old analog (pre-MIDI) format for controlling other CV/Gate compatible vintage synths. The Cyclodon may also receive clock/sync via Roland style DIN-Sync input. It's analog, simple and affordable - it's perfect for anyone with analog synths who want to use vintage analog-style pattern sequencers. It also works great directly with the Technosaurus Microcon! And it's tiny too - about the size of a VHS tape. |
| Brand | Technosaurus |
| Model | Cyclodon |
| Device | Misc |
| Type | Desktop |
| Engine Type | Sequencer |
| Engine | Sequencer |
| Sequencer | 16 step |
| Keys | 0 |
| Key type | N/A |
| Velocity | N/A |
| Aftertouch | N/A |
| CV-gate | CV/ Gate Outputs, Roland DIN-Sync input |
| Produced: | 1998 |
| Legend: | Obvious | Y: Yes, N: No, N/A: Not Applicable | |
| VCO | Voltage Controlled Oscillator | DCO | Digital Controlled Oscillator |
| LFO | Low Frequency Oscillator | Sub | Sub Oscillator |
| VCF | Voltage Controlled Filter | VCA | Voltage Controlled Amplifier |
| Velocity | As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key. | Aftertouch | Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel. |
| Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise. | |||
