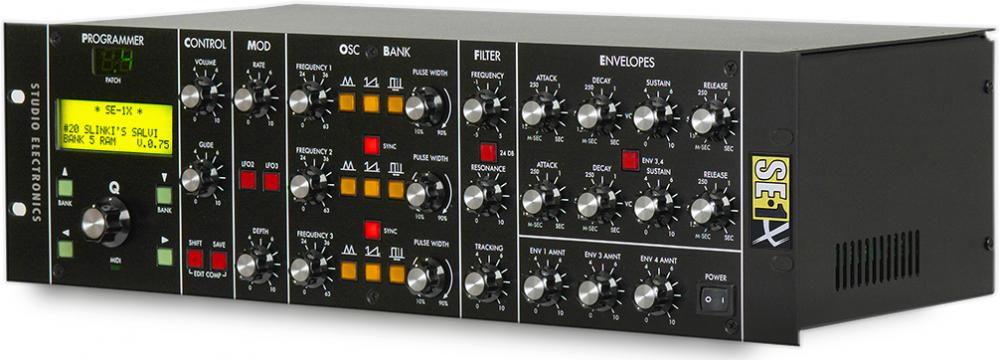

Studio Electronics | SE-1X
The SE-1 is an analog, monophonic synth-module designed to re-create that classic Moog sound perfect for Hip Hop, R&B and Dance music. The classic Moog sound comes from its distinctive 24 dB lowpass voltage controlled analog filter. There is also a 12 dB low-/band-pass filter which emulates the classic sounds of Oberheim synthesizers.
The SE-1 uses three discrete voltage controlled analog oscillators for genuine analog synth sounds. And that's three VCO's, just like the Minimoog. They offer the basic waveforms you would expect from any analog: triangle, sawtooth, reverse sawtooth, square, noise, and random. There are also 4 multi-stage ADSR envelope generators used to shape your sound, the filter and more. Also available are Ring Modulation and Glide/Auto-Glide effects.
With 24 knobs, 21 tactile switches, MIDI control over parameters and plenty of program storage memory (396 presets and 396 user patches), the SE-1 is a professional alternative to its classic forefathers.

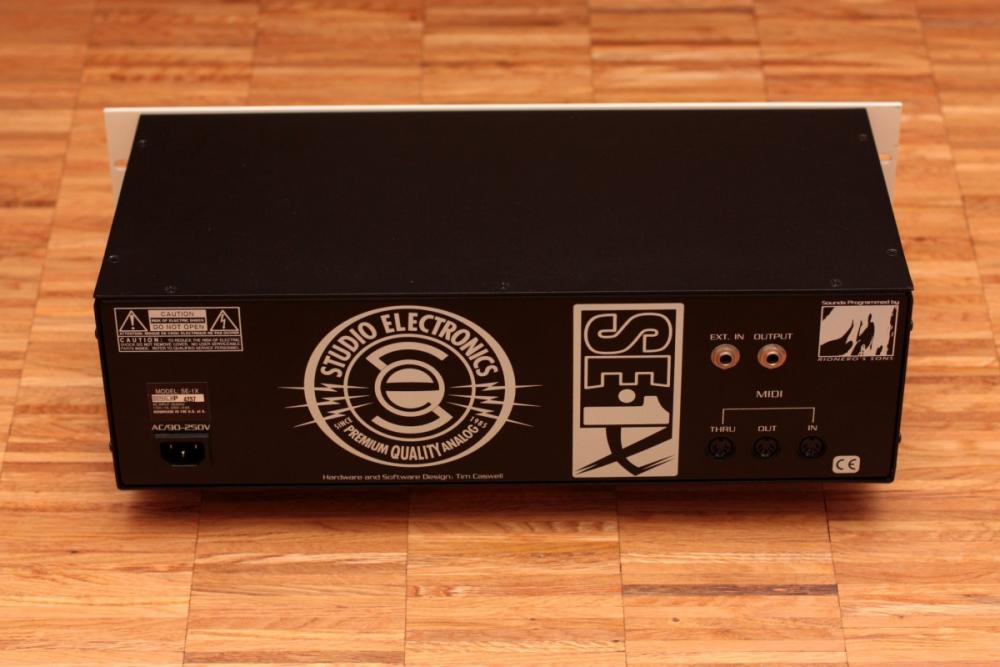

The SE-1X is an improved version of the SE-1 with the following new features: A total of 198 new sounds - includes the "Lexington G" and "Allec Series" banks. Creatively expanded Modulation capabilities. Greatly enhanced MIDI specs. Tight new look - phatt new logo, sharper, more attractive front and back panel graphics and text. Flash-ROM Web-updateable Operating Software. Smoother tweaking and MIDI transmission of front panel pots (switches send info. as well). External Audio Input.
|LFO||3 LFO's; Waveforms: triangle, sawtooth, reverse sawtooth, square, noise, random. Controls: delay, key trigger, phase, and midi sync.|
|Engine Detailed||3 analog VCO's; Waveforms: triangle, sawtooth and variable width square. Osc2&3 sync to Osc1. Noise generator.|
|Filter (VCF)||2 analog filters: 24db Lowpass (classic Moog), 12db Lowpass & Bandpass (classic Oberheim).|
|Envelope (VCA)||4 multi-stage envelope generators (ADSR). Env 1 fixed to filter frequency, Env 2 fixed to amp level, Env 3&4 are assignable|
|Memory||4 ROM Banks (396 locations), 4 RAM Banks (396 locations)|
|Audio||External audio input|
|Legend:||Obvious||Y: Yes, N: No, N/A: Not Applicable|
|VCO||Voltage Controlled Oscillator||DCO||Digital Controlled Oscillator|
|LFO||Low Frequency Oscillator||Sub||Sub Oscillator|
|VCF||Voltage Controlled Filter||VCA||Voltage Controlled Amplifier|
|Velocity||As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key.||Aftertouch||Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel.|
|Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise.|
