|LFO||3 LFO's: (LFO3 fixed to voice panning) Waveforms: triangle, sawtooth, reverse sawtooth, square, noise, random. Controls: range, delay, key trigger, phase, mode (mono or poly), quantize, and midi sync.|
|Engine Detailed||2 analog oscillators + 1 sub-osc. Waveforms: sine (OSC 1), triangle, sawtooth and variable width square. Osc 2 to Osc 1 sync. White noise generator|
|Filter (VCF)||2 analog filters: 24dB lowpass (Moog) and 12db (Oberheim) low pass, bandpass, high pass, band reject modes. Filters do not operate in series or parallel. Up to four different filters available for each voice. Current additional filters available: Roland 303, ARP 2600, CS80.|
|Envelope (VCA)||3 multi-stage envelope gens w/ ADSR. Envelopes 1&2 have additional delay, decay2, and breakpoint parameters. Env 1 to filter freq., Env 2 to amp level; Env 3 assignable to 3 more destinations.|
|FX||linear and exponential Glide. Overdrive with OD version (Optional): One per voice. Distortion setting fixed.|
|Memory||256 sound patches,128 multi patches in RAM, 256 patches ROM|

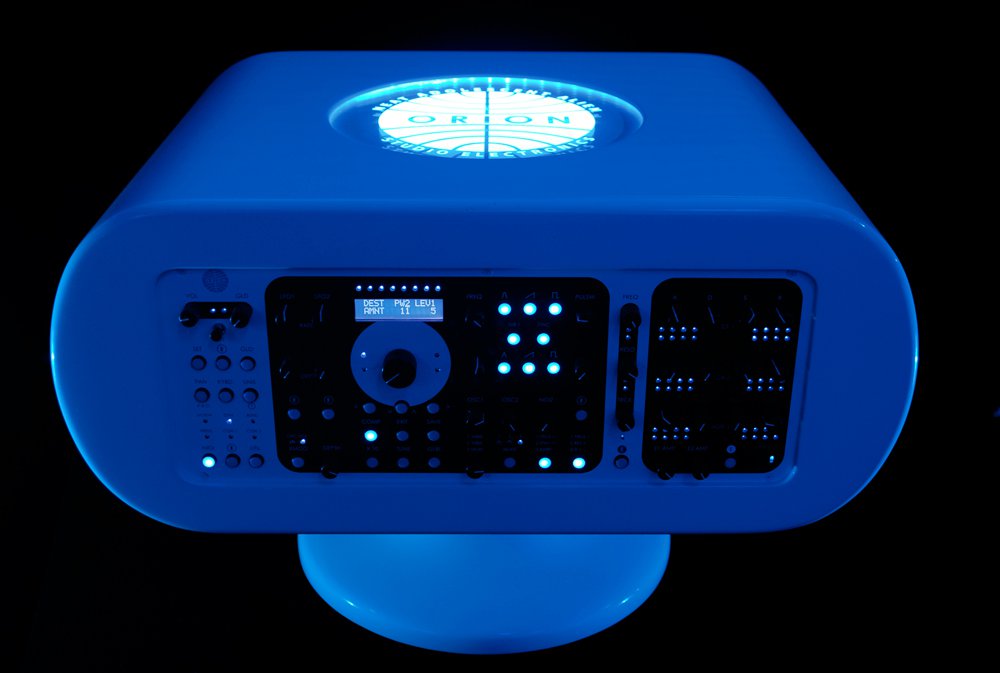

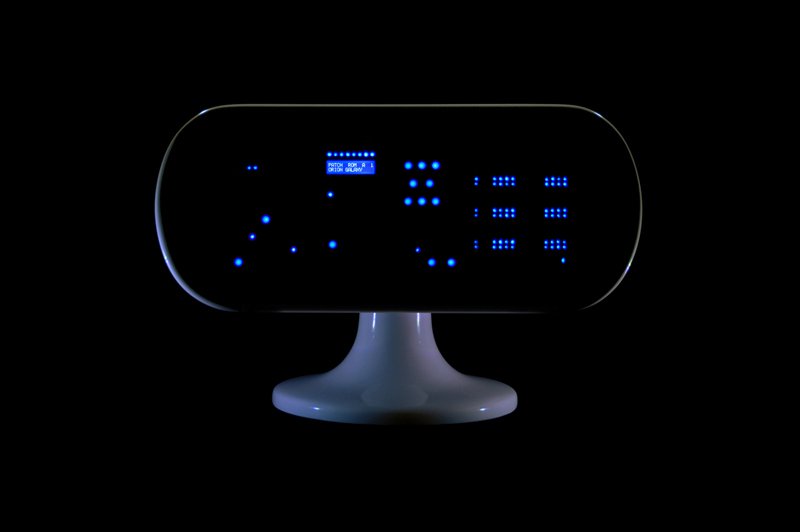

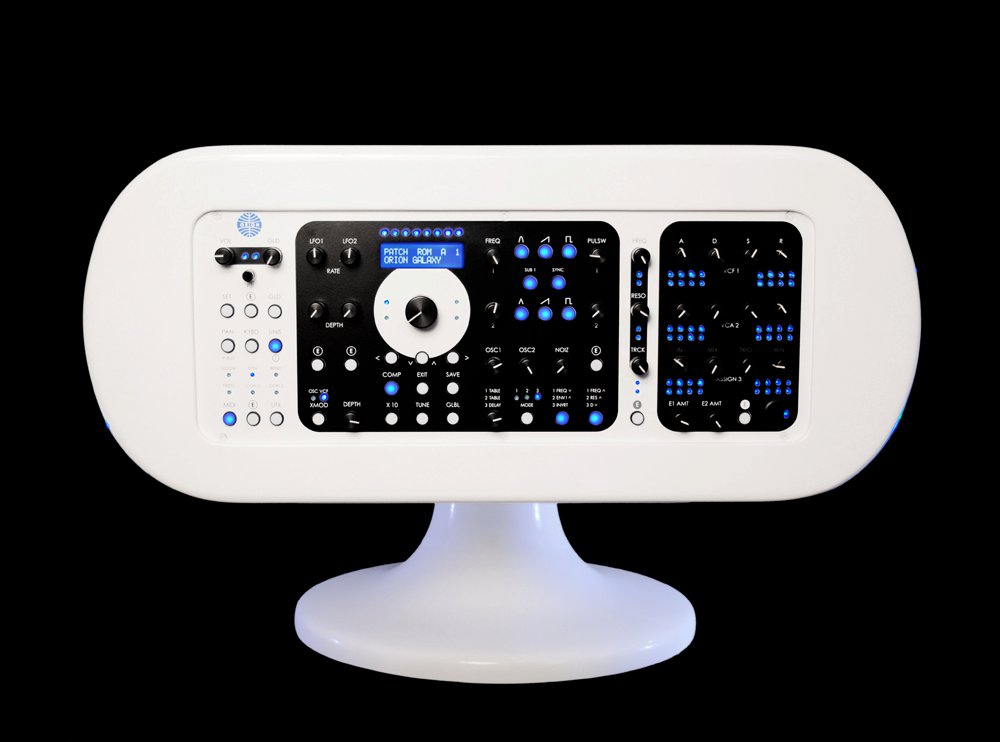

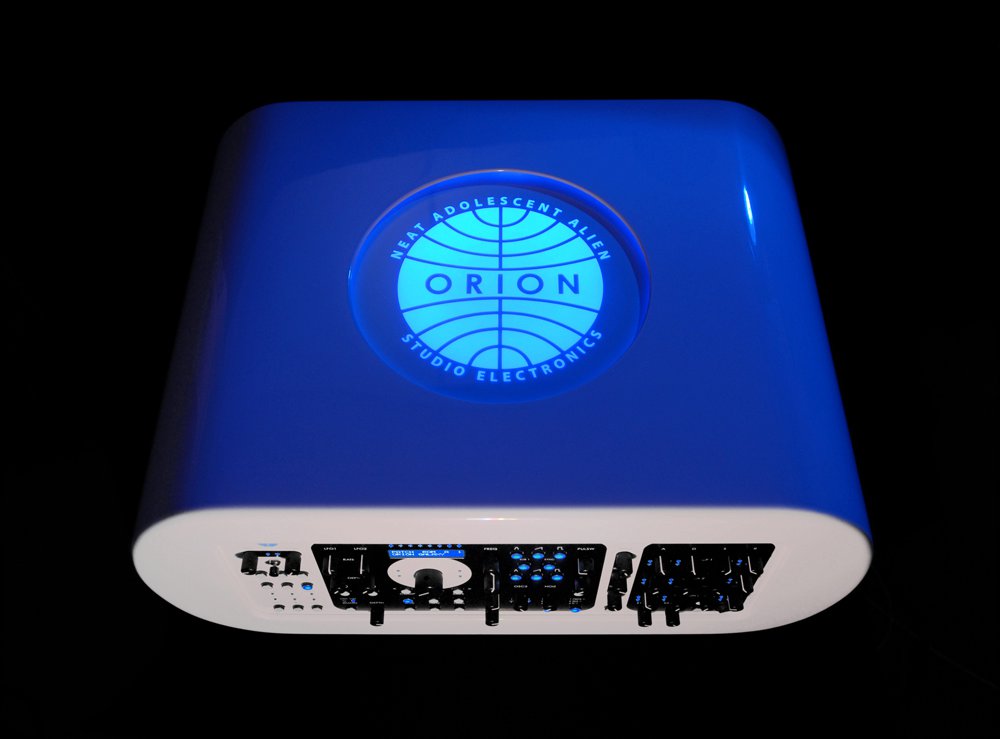

|Extra info||Special Designer version by Antoine de Castellane|
Produced:||2011 - 2011
||Y: Yes, N: No, N/A: Not Applicable
||Voltage Controlled Oscillator
||Digital Controlled Oscillator
||Low Frequency Oscillator
||Voltage Controlled Filter
||Voltage Controlled Amplifier
||As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key.
||Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel.
|Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise.
