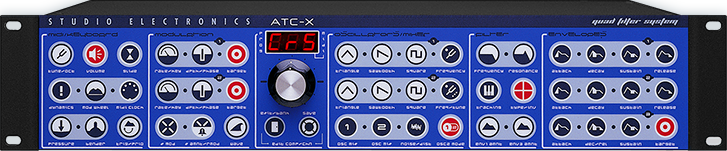

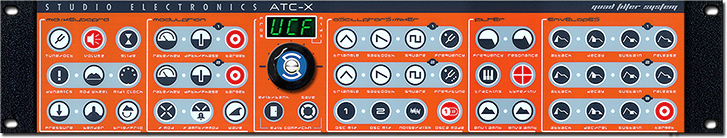

Description | The ATC-X is a truly modern Analog synthesizer, incorporating authentic discrete component circuitry with complete MIDI implementation and total programmability. Control of the parameters from the optical encoder is smooth and precise. Its creative and intuitive design incorporates unique features and functions, allowing the discerning musician complex tone manipulation and seemingly endless patch variations.
The electronically produced sound of the ATC-X is vibrant, warm and "punchy"; possessing the highly pleasing qualities of inherent randomness in pitch and timbre, like those of a fine acoustic instrument.
You're soon to discover the world's only 4-way discrete multi-filtered analog synthesizer. Like never before, you now have the ability to create and explore all of the classic Analog synthesizer sounds in one powerfully expressive and versatile machine. |
| Brand | Studio Electronics |
| Model | ATC-X |
| Device | Synth |
| Type | Rack |
| Engine Type | Analog |
| Engine | VCO |
| Voices (max) | 1 |
| Multitimbral | 1 |
| Oscillators | 2 |
| LFO | 2 Noise, Saw Up, Saw Down, Square, Triangle |
| Noise | Y |
| Engine Detailed | 2 VCO, waveforms: triangle, sawtooth and variable width square |
| Filter (VCF) | 1 12dB Slope (2-pole), 24dB Slope (4-pole), Band Pass, High Pass, Low Pass, Resonance, Serial, Parallel |
| Envelope (VCA) | 3 ADSRs: one for VCA, one for VCF and third to modulate other parameters |
| FX | Distortion |
| Memory | 512 Patches |
| Keys | 0 |
| Key type | N/A |
| Velocity | N/A |
| Aftertouch | N/A |
| Midi | I-O |
| CV-gate | CV/Trigger out |
|
Produced: | 2006 - 2006 |
| Legend: |
Obvious |
Y: Yes, N: No, N/A: Not Applicable |
| VCO |
Voltage Controlled Oscillator |
DCO |
Digital Controlled Oscillator |
| LFO |
Low Frequency Oscillator |
Sub |
Sub Oscillator |
| VCF |
Voltage Controlled Filter |
VCA |
Voltage Controlled Amplifier |
| Velocity |
As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key. |
Aftertouch |
Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel. |
| Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise. |
