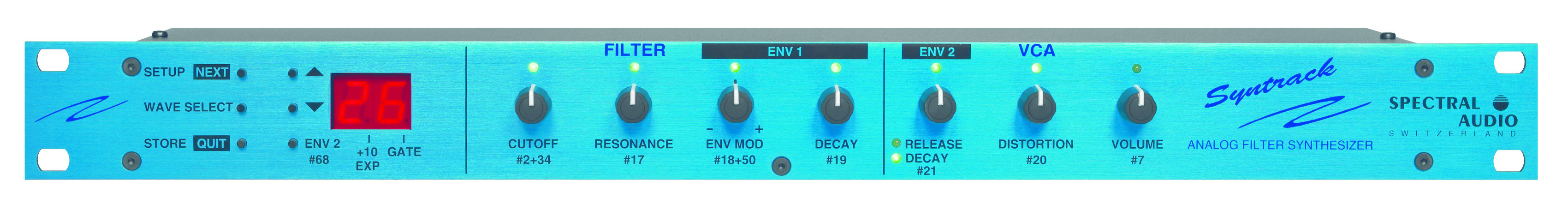

Spectral Audio | Syntrack


Good things can come in small, light-blue packages! The Syntrack combines a digital wavetable oscillator with an analog filter (Cascade Filter). The filter output passes through the analog Distorter which shapes your sound to be powerful and rough. It's a 1-unit rack module with full MIDI implementation and an aggressive analog sound. Front panel controls seem slim, but everything you need is right there to create simple but fat synth sounds.

The Syntrack offers 99 Programs and easy programming because each parameter has a pot. Every tweak of a knob will send MIDI controller data to your sequencer or other MIDI gear. In fact the MIDI CC#'s are printed under each knob right on the front panel. And each parameter responds to MIDI controller input data as well. The Syntrack can also respond to velocity and aftertouch. The wavetable can be expanded by a second chip to double the memory. The Syntrack also offers an external audio input for running external sounds through the filter.

Simple effective analog mono-synth sounds for the modern studio. Its sounds are unique, aggressive and the whole package is very affordable. A great alternative to more common rack-mount mono-synths and older, less reliable vintage gear.

BrandSpectral Audio
Engine TypeDigital
Voices (max)1
Engine DetailedWavetable Oscillator with 100 Waves (expandable to 200)
Filter (VCF)Analogue 24 dB Cascade Filter with Resonance and Self oscillation
Envelope (VCA)Release, Decay, Level, Distortion
Memory99 Programs (1 .. 29 = Presets, 30 .. 99 = User Programs)
Key typeN/A
AudioAudio in routable through the filter
Produced:1998 - 2008
Legend: Obvious Y: Yes, N: No, N/A: Not Applicable
VCO Voltage Controlled Oscillator DCO Digital Controlled Oscillator
LFO Low Frequency Oscillator Sub Sub Oscillator
VCF Voltage Controlled Filter VCA Voltage Controlled Amplifier
Velocity As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key. Aftertouch Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel.
Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise.
