Solton | SM100 |
|

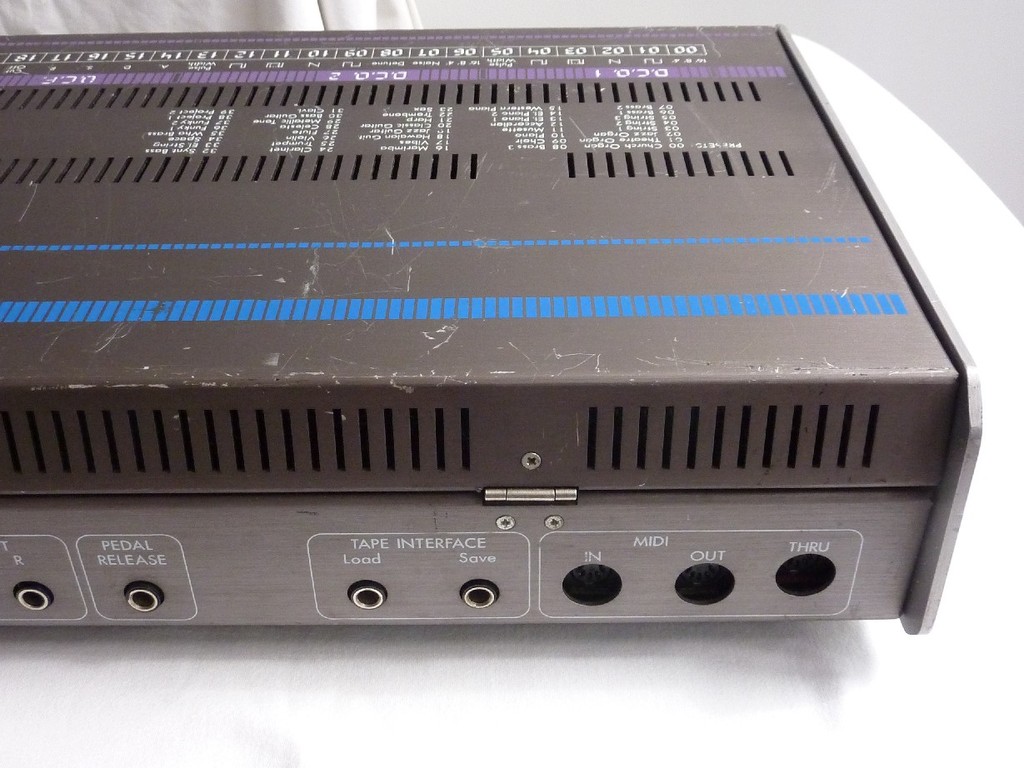

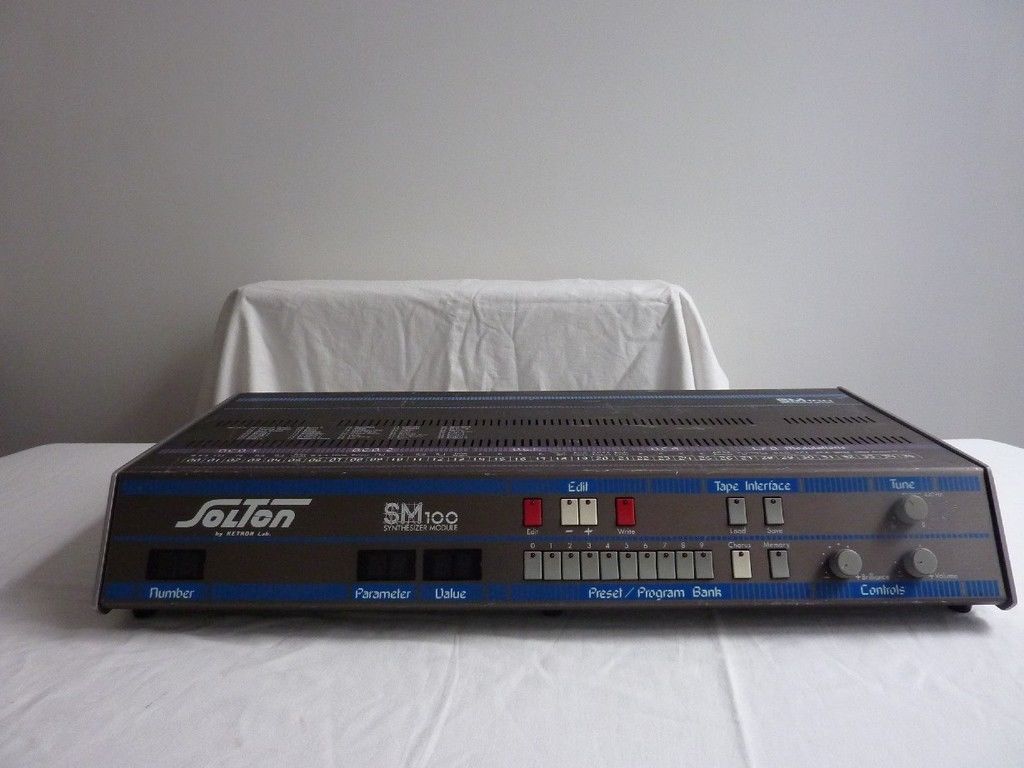

Description | The Solton SM100 Synthesiser is a digitally controlled polyphonic analog synthesizer with 12 voices and two DCOs. The synthesizer is similar to the Project 100 synthesizer without the sequencer. |
| Brand | Solton |
| Model | SM100 |
| Device | Synth |
| Type | Module |
| Engine Type | Digital |
| Engine | DCO |
| Voices (max) | 6 |
| Multitimbral | 1 |
| LFO | 1 Sine, Square |
| Engine Detailed | 2 DCO, Pulse Variable, Saw Down, Square |
| Filter (VCF) | 1 24dB Slope (4-pole), Low Pass, Resonance |
| Envelope (VCA) | 2 ADSR |
| FX | Chorus |
| Memory | 60 ROM, 40 RAM |
| Keys | 0 |
| Key type | N/A |
| Velocity | N/A |
| Aftertouch | N/A |
| Midi | I-O-T |
| Produced: | 1985 - 1985 |
| Legend: | Obvious | Y: Yes, N: No, N/A: Not Applicable | |
| VCO | Voltage Controlled Oscillator | DCO | Digital Controlled Oscillator |
| LFO | Low Frequency Oscillator | Sub | Sub Oscillator |
| VCF | Voltage Controlled Filter | VCA | Voltage Controlled Amplifier |
| Velocity | As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key. | Aftertouch | Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel. |
| Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise. | |||
