Sequential Circuits | Studio 440

Description

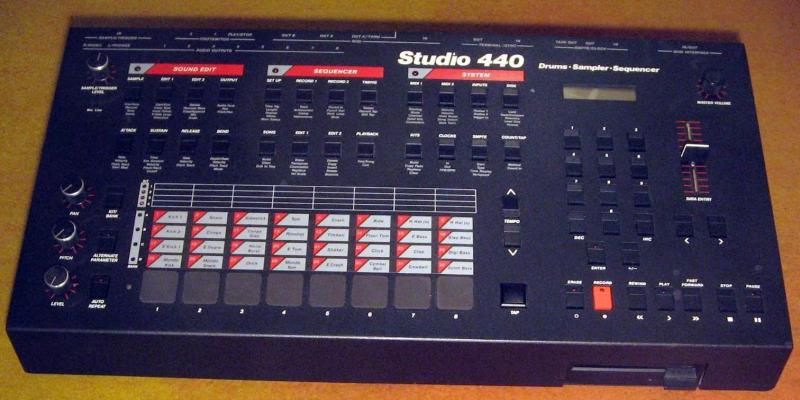

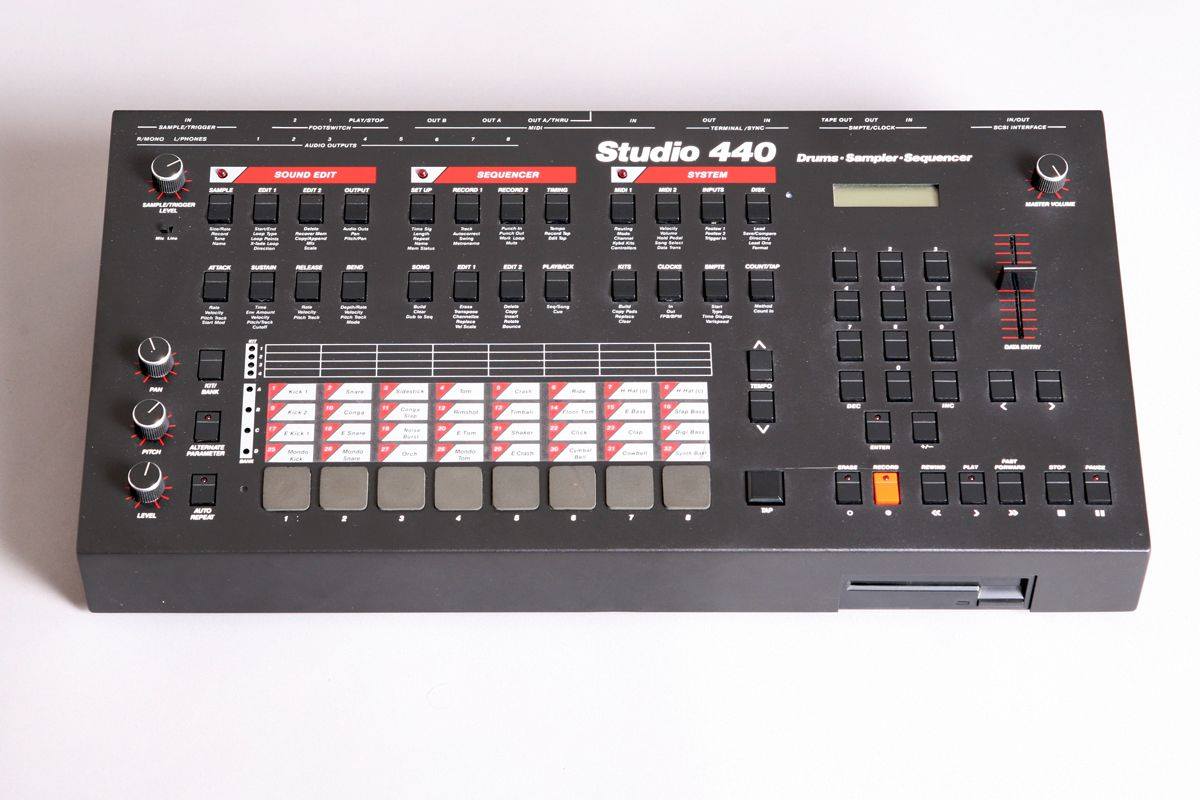

The Studio 440 is like the Grand-Daddy of Sequencing/Sampling Drum and Music Production Machines. You may have heard of the Akai MPCs and E-mu SP1200 machines. Although some of these exceed the limits of the Studio 440, it is still very much worth checking out! The major difference between the modern Akai MPCs and the Studio 440 is that its sampler is 12-bit. A little lo-fi in comparison to the 16-bit MPC. The Studio 440 also has a slim 520kb memory so you won't have much time to sample anymore than some short percussion and drums.

Similar to the MPC60, the Studio 440 has an analog lowpass filter which is always fun. Unfortunately it is not resonant. The Sequencer is intuitive and quite functional with a capacity of 50,000 notes, 8 separate tracks and a swing function. But unlike its contemporaries, the 440 has some visionary features for its time. MIDI data from the sequencer can be transmitted out so that it can play external MIDI instruments. There is also built-in SCSI for external drives and storage.

The 440 is pleasant to look at, even today. It's simple to use and sounds pretty darn good despite its lo-fi 12-bit sampler. Though an MPC is likely a better buy than the 440 these days the 440 still commands quite a high asking price. It was, after all, one of Sequential's last products. It was way ahead of its time and was also very hip! They are rare and difficult to have serviced - what else would you expect from a Vintage instrument!

BrandSequential Circuits
ModelStudio 440
DeviceSampler
TypeDesktop
Engine TypeDigital
EngineSample
Voices (max)8
Sampler12-bit 16-32-44KHz
Filter (VCF)Analog Lowpass non-resonant filter with envelope
Memory512kb; SCSI port
Recording50,000 notes, 8 tracks, with adjustable swing (50 - 75%) and more
Keys8
Key typepads
VelocityN
AftertouchN
MidiI-O
Produced:1987 - 1987
Legend: Obvious Y: Yes, N: No, N/A: Not Applicable
VCO Voltage Controlled Oscillator DCO Digital Controlled Oscillator
LFO Low Frequency Oscillator Sub Sub Oscillator
VCF Voltage Controlled Filter VCA Voltage Controlled Amplifier
Velocity As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key. Aftertouch Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel.
Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise.
