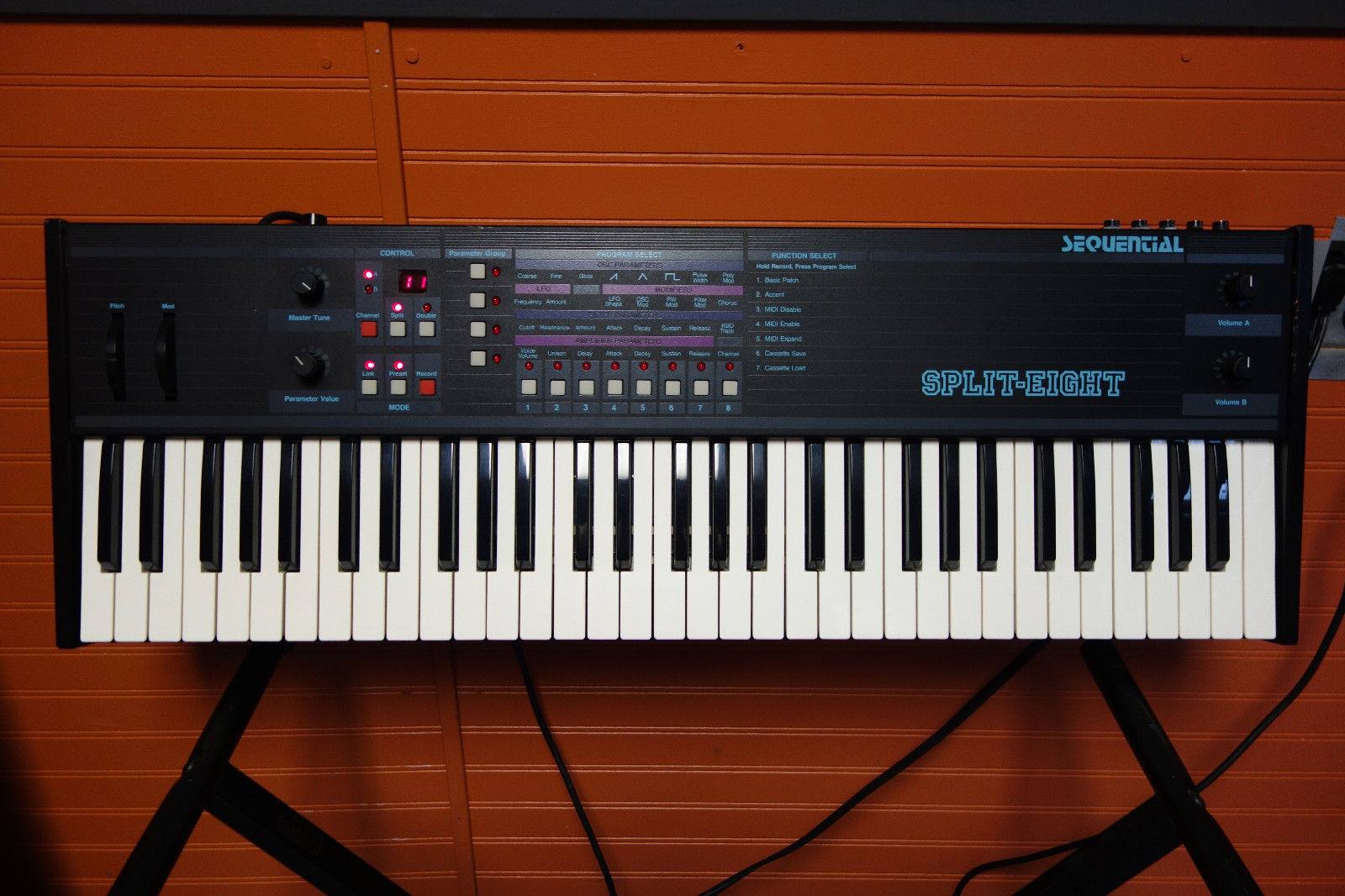

Sequential Circuits | Split-8 |
|
Description | The Split-8 makes for a very nice programmable polyphonic analog synthesizer with complete MIDI implementation. With 8 voices and 8 oscillators (Curtis 3394 SENTE chips) the Split-8 is a heavy contender against the Roland Juno-106! However programming the synth, while straight forward and intuitive, is limited to adjusting one parameter at a time assigned to one Data knob. This limits performance ability but is no problem during studio use. The keyboard features splits and layers, all of which can be saved with patch data. Choose between 8 voice polyphony with 1 oscillator per voice, 4 voice polyphony with dual oscillators per voice, 2 voice polyphony with a mega 4 oscillators per voice, or the unison mode which is just a fat 8-voice solo mode for trance bass and lead heaven! Similar to the Juno-106, the Split-8 uses a Chorus effect to liven up the sounds. Sonically the Split-8 sounds much 'thinner' than a Roland Juno-106, however this 'thin' sound is characteristic of Sequential and is quite nice. The wooden side panels definitely give the Split-8 that vintage flare! |
| Brand | Sequential Circuits |
| Model | Split-8 |
| Device | Synth |
| Type | Keys |
| Engine Type | Analog |
| Engine | VCO |
| Voices (max) | 8 |
| Multitimbral | 2 |
| Oscillators | 1 |
| LFO | : programmable rate (0.25 - 20 Hz), depth, triangle, square waveforms; route to VCO, VCF, or pwm |
| Engine Detailed | 8: 1 per voice (sawtooth, triangle and square) |
| Filter (VCF) | 4dB/octave 4-pole lowpass resonant filter; cutoff, kybd, ADSR env |
| Envelope (VCA) | 2 ADSR envelopes |
| FX | Chorus |
| Memory | 64 patches, 64 performances |
| Keys | 61 |
| Key type | Keys |
| Velocity | N |
| Aftertouch | N |
| Midi | I-O |
| Produced: | 1985 - 1985 |
| Legend: | Obvious | Y: Yes, N: No, N/A: Not Applicable | |
| VCO | Voltage Controlled Oscillator | DCO | Digital Controlled Oscillator |
| LFO | Low Frequency Oscillator | Sub | Sub Oscillator |
| VCF | Voltage Controlled Filter | VCA | Voltage Controlled Amplifier |
| Velocity | As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key. | Aftertouch | Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel. |
| Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise. | |||
