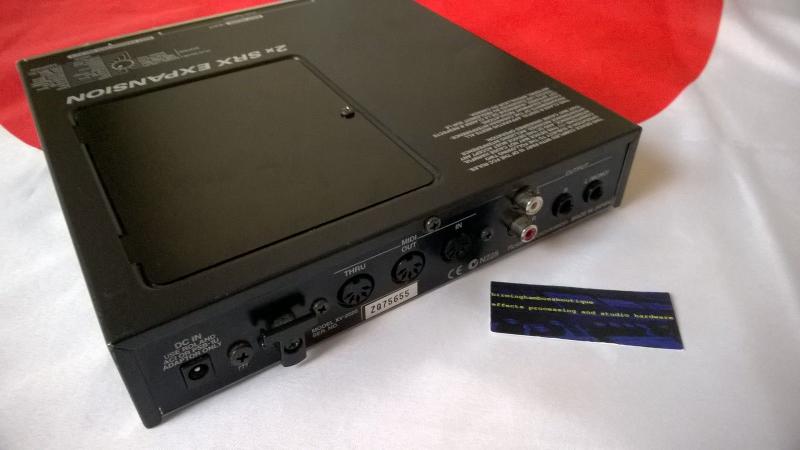

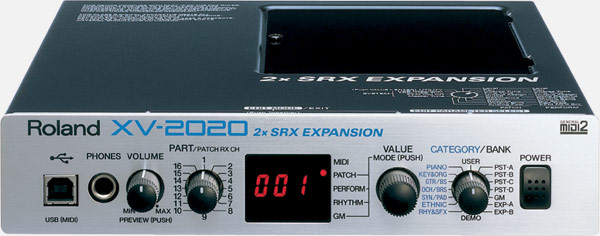

Roland | XV-2020 |
|
Description | The XV-2020 64-Voice Expandable Synthesizer Module puts Roland’s flagship XV sounds in a convenient half-rack design complete with USB. Expandable via two SRX-Series Wave Expansion Boards, it’s like a powerful “plug-in” synth with up to 192MB of sounds, three independent effects processors and intuitive editing software. Half-rack synth module with 64MB of XV sounds and USB port 64-voice polyphony and 16-part multitimbral operation Presets include 768 Patches, 17 Rhythm Sets and 64 Performances Expandable via two SRX-Series Wave Expansion Boards USB port for easy MIDI connection and control via software 3 independent effects processors: reverb, chorus and 40 multi-effects Stereo 1/4” and RCA outputs Includes editing software for Mac or PC A True XV-Series Synth At the heart of this half-rack module is Roland’s most advanced synthesis engine ever—based on a powerful 4-Tone architecture with stereo waveforms per Tone and expressive Matrix Control. There are 1,083 high-quality waveforms in internal memory (equivalent to 64MB), giving the XV-2020 a broad range of sounds that are further enhanced via onboard reverb, chorus and a choice of 40 multi-effects. Edited sounds can be saved to User memory. Expandable Design It’s hard to believe that a half-rack module can hold up to 192MB of waveforms, but that’s exactly what you get by adding two optional SRX-Series Wave Expansion Boards. These quality-intensive boards each contain 64MB of waveforms and hundreds of fresh, inspiring presets. So whether you want the absolute finest grand piano sounds or drums—or a killer collection of dance sounds—simply pop in any two of the nine SRX titles presently available. Easy USB Connectivity With its built-in USB port the XV-2020 simplifies everything from MIDI connections to sound editing. Just connect a USB cable from the –2020 to your computer, install the included driver software and you’re set! This feature also makes the XV-2020 the perfect companion to laptop-based systems since no external MIDI interface is required. And you get the power of a 16-part multitimbral synth capable of producing virtually any sound imaginable. Editing Software Included Following Roland’s latest trend of integrating hardware and software, the XV-2020 includes a powerful editing program for Mac or PC. Just install the software from the included CD-ROM, make sure the USB cable is connected, and you can tweak everything from multimode filters to envelopes and effects—or even alter the semi-modular Structure Types—using a sleek graphic interface. It’s a great way to harness the full power of the XV synth engine. |
| Brand | Roland |
| Model | XV-2020 |
| Device | Synth |
| Type | Desktop |
| Engine Type | Digital |
| Engine | PCM |
| Voices (max) | 64 |
| Multitimbral | 16 |
| Oscillators | 4 |
| FX | Multi-effects: 40 sets, Chorus: 1 set, Reverb: 1 set (8 types) |
| Memory | Patches ROM: 768, RAM 128, Performances ROM: 64, RAM 64 |
| Drums | 17 sets |
| Keys | 0 |
| Key type | N/A |
| Velocity | N/A |
| Aftertouch | N/A |
| Midi | I-O-T, USB |
| Produced: | 2002 - 2002 |
| Legend: | Obvious | Y: Yes, N: No, N/A: Not Applicable | |
| VCO | Voltage Controlled Oscillator | DCO | Digital Controlled Oscillator |
| LFO | Low Frequency Oscillator | Sub | Sub Oscillator |
| VCF | Voltage Controlled Filter | VCA | Voltage Controlled Amplifier |
| Velocity | As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key. | Aftertouch | Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel. |
| Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise. | |||
