Roland | XP-30 |
|

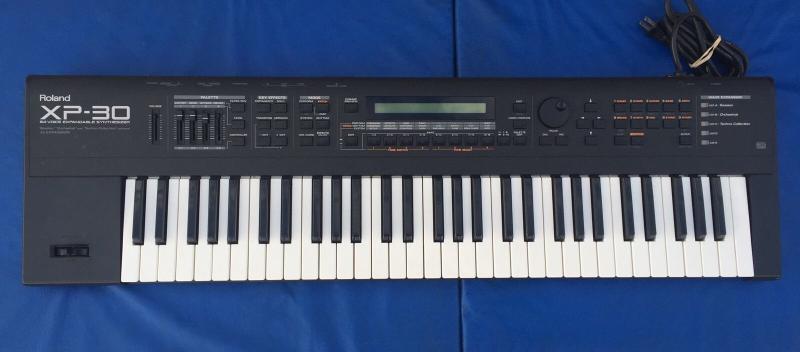

Description | The XP-30 is a 64-voice Expandable Synthesizer that offered all of the great sounds of the XP and JV series at a more affordable price tag than previous XP-synths. Roland's XP-80 was a flagship workstation in its time, but by reducing the keyboard down to a standard 61 key (with velocity and aftertouch), elimination of the on-board sequencer, and fewer expansion card slots, the XP-30 was able to offer the XP-experience at a price within reach of serious musicians at any level. The XP-30 does retain the XP-series synthesis architecture and all the world-renowned sound sets of the acclaimed XP-80 workstation, plus all the waveforms from the "Session", "Orchestral", and "Techno" expansion cards. It adds, however, a boat-load more patch storage than its more famous predecessors: there are 1,406 patches and 28 drum kits. Fortunately there is a Patch Finder and Phrase Preview for quick navigation and sound selection. Besides the two expansion slots for installing the SR-JV80-Series expansion boards, a SmartMedia card slot provides additional storage capability. Plenty of controls and four assignable Sound Palette sliders let you get deep into editing and programming its sounds. |
| Brand | Roland |
| Model | XP-30 |
| Device | Synth |
| Type | Keys |
| Engine Type | Digital |
| Engine | PCM |
| Voices (max) | 64 |
| Multitimbral | 16 |
| Oscillators | 4 |
| LFO | 2 MIDI syncable LFOs |
| Engine Detailed | 4 per voice ( 4 x 64 voices), 32 bit custom RISC chips for Digital Acoustic simulation; 512 on-board waveforms (plus up to two 8MB SRJV80 series expansion boards) |
| Filter (VCF) | TVF (lowpass, bandpass, high pass) with cutoff, resonance, key follow and velocity sensitivity |
| FX | Reverb, Chorus and 40 multi-EFX |
| Memory | 1,406 patches, including all sounds from the "Session", "Orchestral" and "Techno" wave expansion boards |
| Drums | 28 Rhythm kits |
| Arpeggiator | Advanced Arpeggiator capabilities |
| Keys | 61 |
| Key type | Keys |
| Velocity | Y |
| Aftertouch | Channel |
| Midi | I-O-T |
| Produced: | 1999 - 2002 |
| Legend: | Obvious | Y: Yes, N: No, N/A: Not Applicable | |
| VCO | Voltage Controlled Oscillator | DCO | Digital Controlled Oscillator |
| LFO | Low Frequency Oscillator | Sub | Sub Oscillator |
| VCF | Voltage Controlled Filter | VCA | Voltage Controlled Amplifier |
| Velocity | As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key. | Aftertouch | Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel. |
| Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise. | |||
