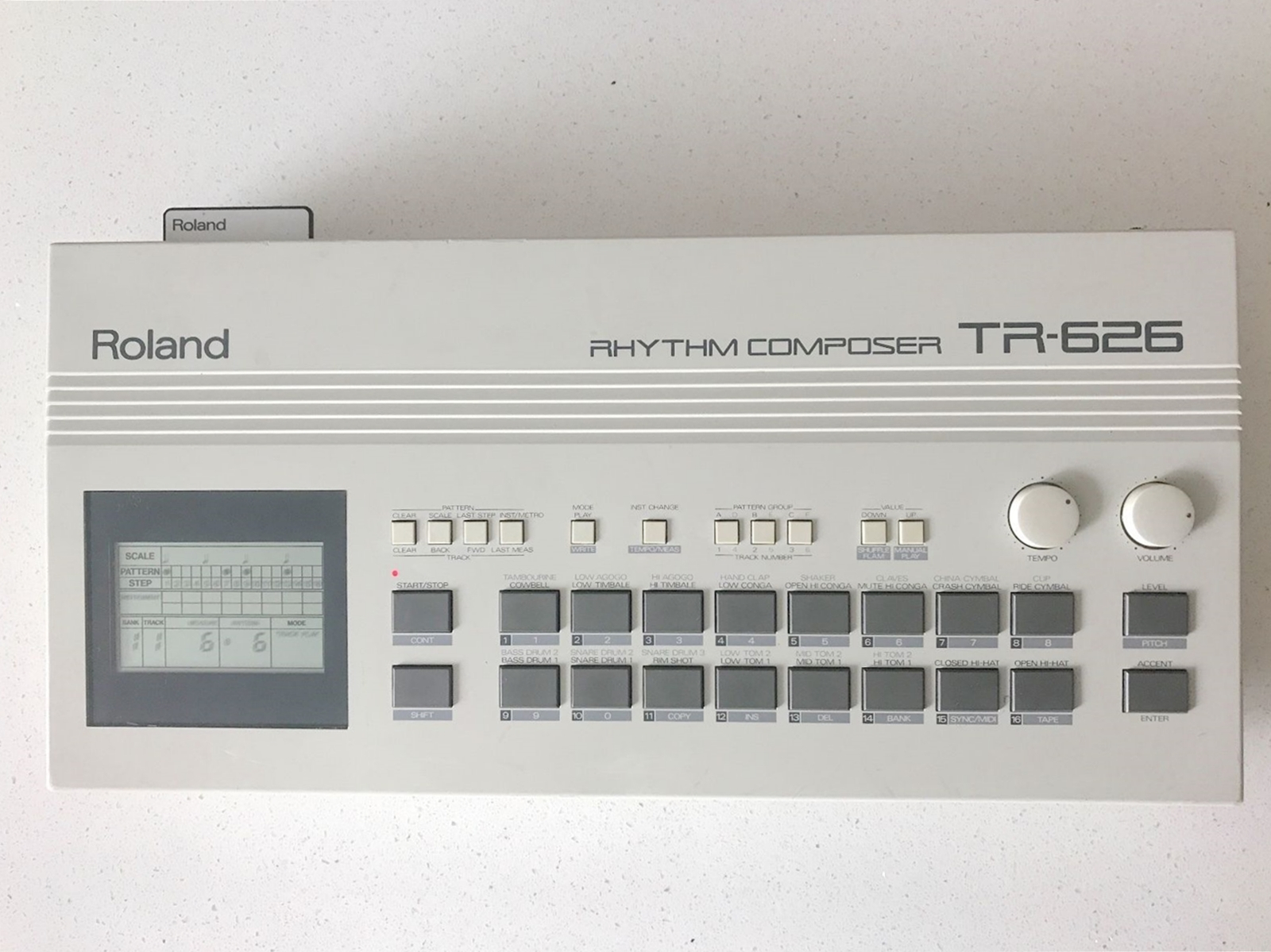

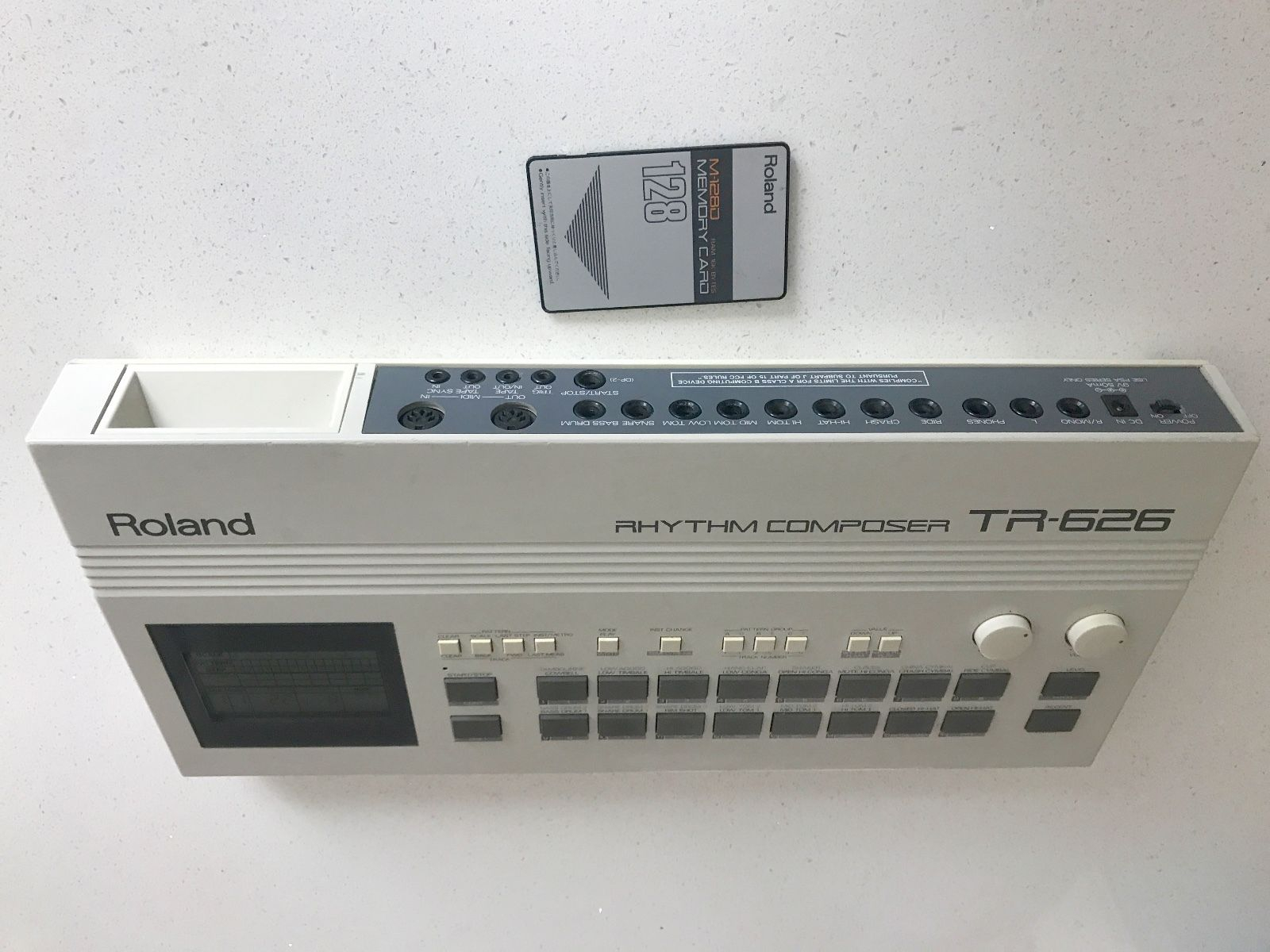

Roland | TR-626 |
|
Description | The Roland TR-626 Rhythm Composer is a 12-bit digital sample based machine developed from the TR-505. It features additional sounds and more control. It offered real-time and step recording modes, with 48 preset patterns and 48 user patterns. It’s simple matrix display showed the current pattern in a graphical representation and with 16 drum tone pads and 8 voices of polyphony, it was an advance on past models. |
| Brand | Roland |
| Model | TR-626 |
| Device | Drum |
| Type | Desktop |
| Engine Type | Digital |
| Engine | Sample |
| Voices (max) | 8 |
| Engine Detailed | 12 Bit samples of 30 plain old standard drum sounds. |
| Drums | 48 preset, 48 user. |
| Recording | 6 Songs limited to 1/16th note steps |
| Keys | 16 |
| Key type | Pads |
| Velocity | N |
| Aftertouch | N |
| Midi | I-O |
| Produced: | 1987 - 1987 |
| Legend: | Obvious | Y: Yes, N: No, N/A: Not Applicable | |
| VCO | Voltage Controlled Oscillator | DCO | Digital Controlled Oscillator |
| LFO | Low Frequency Oscillator | Sub | Sub Oscillator |
| VCF | Voltage Controlled Filter | VCA | Voltage Controlled Amplifier |
| Velocity | As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key. | Aftertouch | Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel. |
| Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise. | |||
