Roland | SH-5

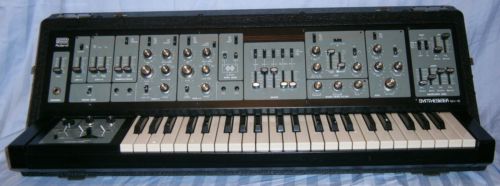

The SH-5 is a classic yet very advanced monophonic synthesizer rivalled mainly by its successor, the SH-7. The SH-5 has just about two of everything. There are two analog VCOs with triangle, ramp, square and pulse waveforms, two LFO's, two filters, two VCA's, white and pink noise generators, and more.
The oscillators can be modulated by the LFOs or the ADSR envelope generator. The two LFOs include controls for rate and waveshape: ramp, reverse ramp, triangle, sine, square, delay; and there is also a Sample + Hold feature. The two multi-mode filters include hi-pass, low-pass, and band-pass filtering with cutoff, resonance, keyboard tracking, envelope sensitivity (AR, ADSR or preset) and modulation (ramp, sine, square, s+h) controls plus an additional band-pass-only filter. The two VCAs offer Attack/Release and ADSR envelopes which can be triggered by the Sample + Hold, LFO #2 or an external audio trigger input.
Extra features include the standard SH-type Mixer section with 5 sliders to adjust noise, VCO1, VCO2, ring mod and an external signal levels. Each of these 5 signals can be individually sent through the VCA, the multi-mode filter, the band-pass filter or both. The SH-5 even has stereo output with panning controls in the VCA section and portamento! The Ring Modulator alone is enough to wet your appetite for this synth. A serious analog mono-synth with lots of flexibility for creating serious electronic and dance music.
|LFO||LFO 1: Rate, ramp, reverse ramp; LFO 2: Rate, Delay, triangle, sine, square; 1 Sample+Hold: Sample time, delay time|
|Engine Detailed||2 VCOs range: 32' to 2', (triangle, ramp, square, pulse)|
|Filter (VCF)||VCF 1: hi-pass, low-pass, band-pass, cutoff, resonance, keybd, env sensitivity (AR, ADSR or preset) and modulation (ramp, sine, square, s+h); VCF 2: Band-pass with cutoff, resonance and amount|
|Envelope (VCA)||2 VCAs: AR and ADSR, triggered by sample+hold, LFO 2 or external trigger|

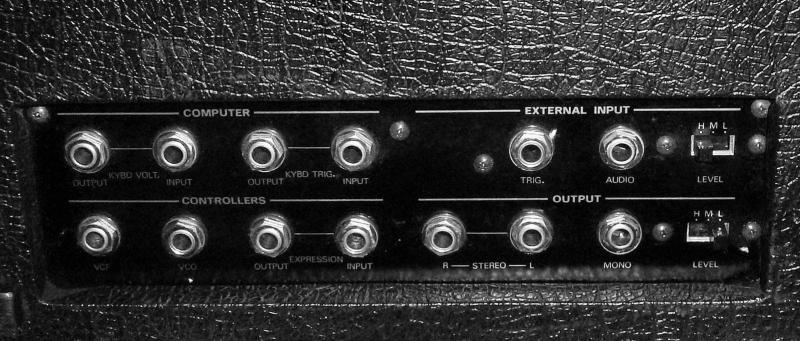

|Audio||External audio input|
|Produced:||1976 - 1981|
|Legend:||Obvious||Y: Yes, N: No, N/A: Not Applicable|
|VCO||Voltage Controlled Oscillator||DCO||Digital Controlled Oscillator|
|LFO||Low Frequency Oscillator||Sub||Sub Oscillator|
|VCF||Voltage Controlled Filter||VCA||Voltage Controlled Amplifier|
|Velocity||As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key.||Aftertouch||Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel.|
|Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise.|
