Roland | SH-101 |
|

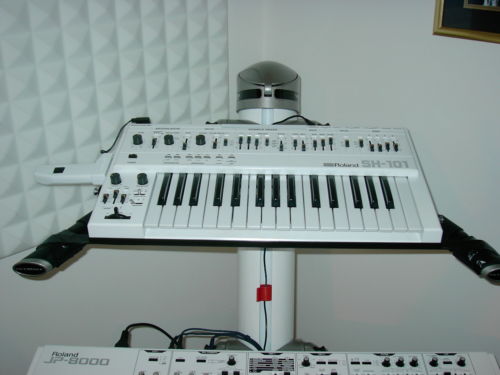

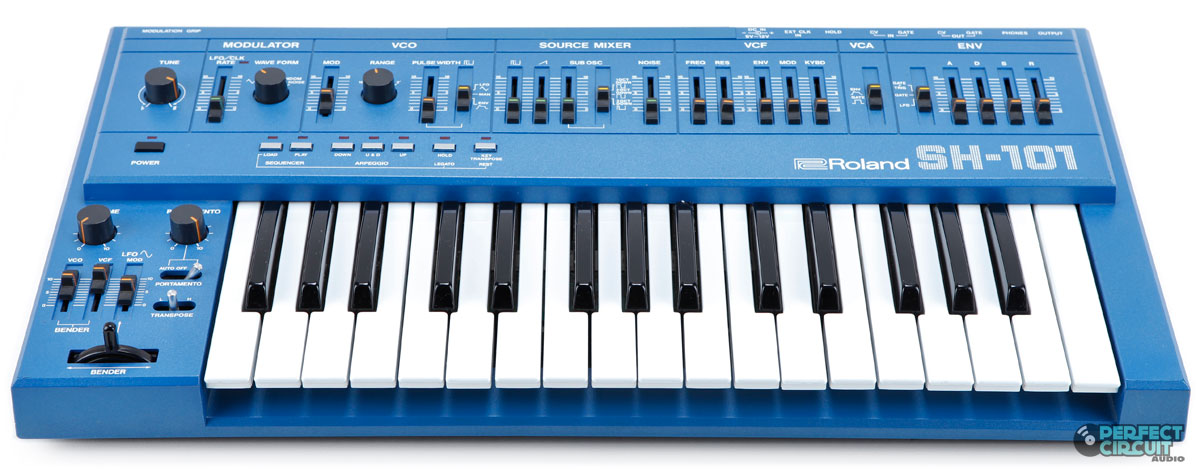

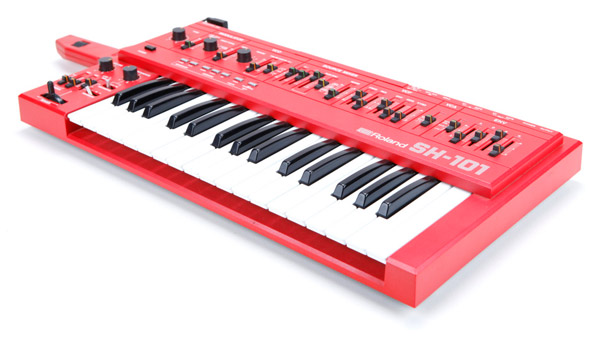

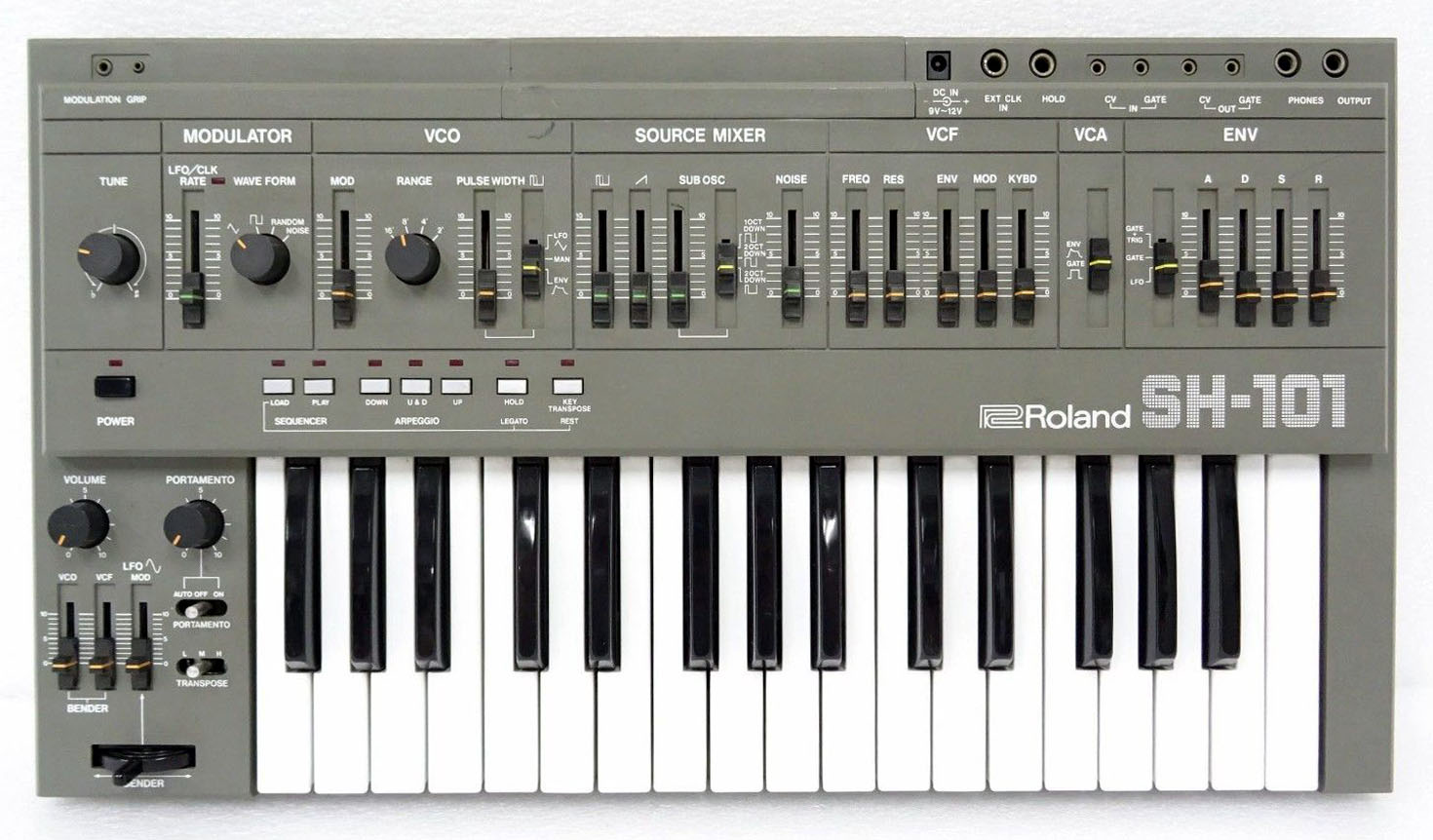

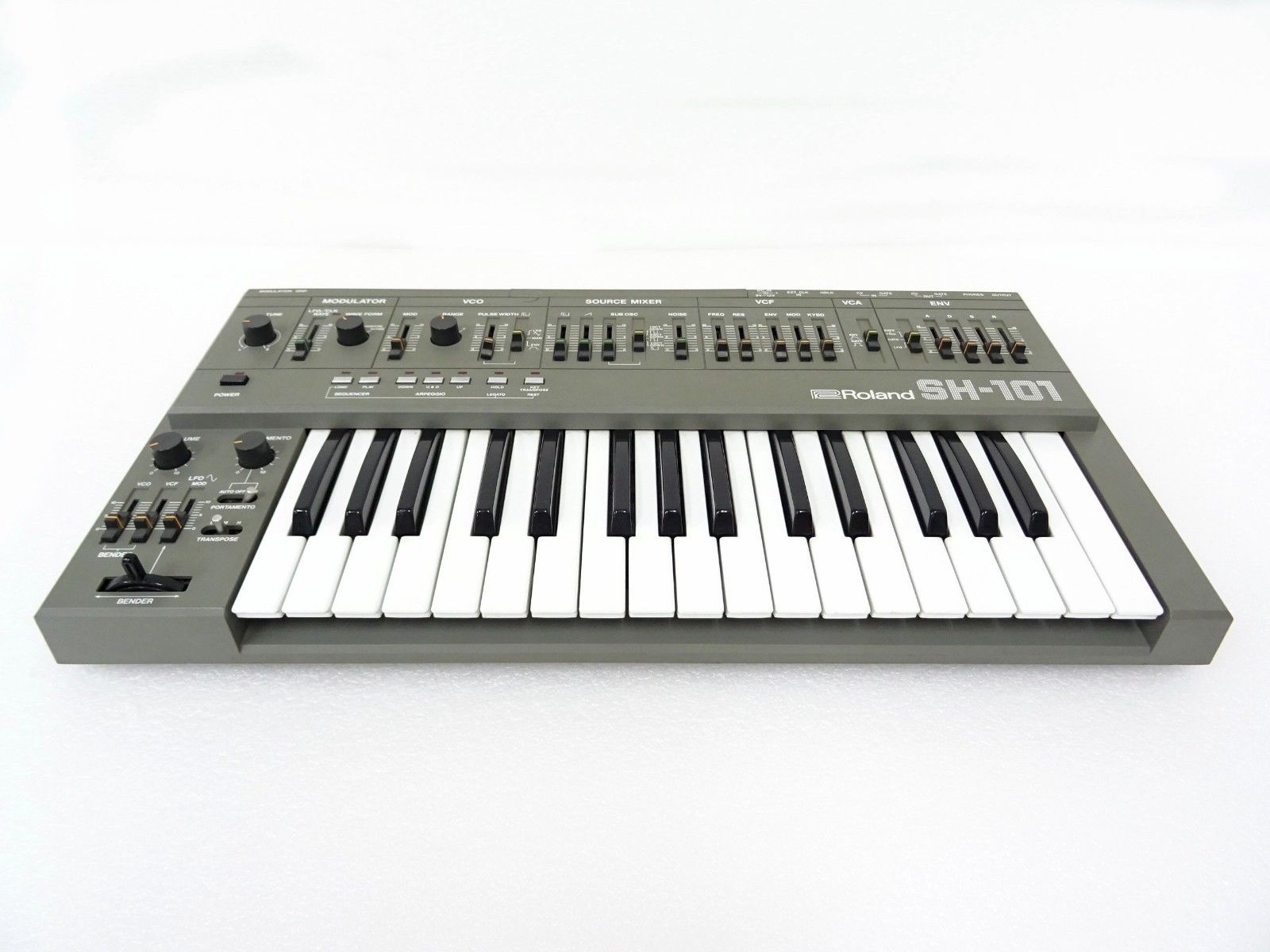

Description | The SH-101 is very cool, especially for techno, drum&bass and ACID! It's a monophonic bass synthesizer. Its sound lies somewhere between the TB-303 and a Juno bass sound. It has a lot of simple but cool features. You can control the VCF, pitch, LFO or all from the pitch bender. It has a white noise generator, arpeggiator with up, down and up/down patterns and a simple real-time sequencer. The LFO offers random, sine, square or noise waveforms. And normal or auto portamento effects give you that elastic bass sound. There are external clock inputs for the sequencer and arpeggiator, CV/GATE inputs and outputs and a CV hold pedal. Unfortunately there is no patch memory storage and although it has no MIDI there are upgrades available for it from many analog service companies that will allow you to incorporate it into any MIDI studio environment. It can also be controlled by MIDI using a CV/MIDI converter. It's great for bass sounds or bubbly analog effects. They come in three different flavors - gray, blue or red (there was a rumor about 2 rare white version, but that was a grey one and customized by Jeff Toman of custom synth in the UK.)! It can also be strapped on like a guitar for live performance using the optional Hand Grip.
|
| Brand | Roland |
| Model | SH-101 |
| Device | Synth |
| Type | Keys |
| Engine Type | Analog |
| Engine | VCO |
| Voices (max) | 1 |
| Sub | 1 |
| LFO | triangle, square, random and noise waveforms |
| Noise | Y |
| Engine Detailed | 1 VCO (independent levels for saw, square/pulse/pwm and sub-oscillator) |
| Filter (VCF) | resonant, self-oscillating LPF, mod by EG, lfo and kybd tracking |
| Envelope (VCA) | ADSR, mod by EG or gate |
| Sequencer | Digital sequencer up to 100 steps record/playback |
| Arpeggiator | up, down, up/down |
| Keys | 32 |
| Key type | Keys |
| Velocity | N |
| Aftertouch | N |
| CV-gate | CV/Gate |
| Extra info | Optional grip to make it a Keytar |
| Produced: | 1983 - 1983 |
| Legend: | Obvious | Y: Yes, N: No, N/A: Not Applicable | |
| VCO | Voltage Controlled Oscillator | DCO | Digital Controlled Oscillator |
| LFO | Low Frequency Oscillator | Sub | Sub Oscillator |
| VCF | Voltage Controlled Filter | VCA | Voltage Controlled Amplifier |
| Velocity | As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key. | Aftertouch | Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel. |
| Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise. | |||
