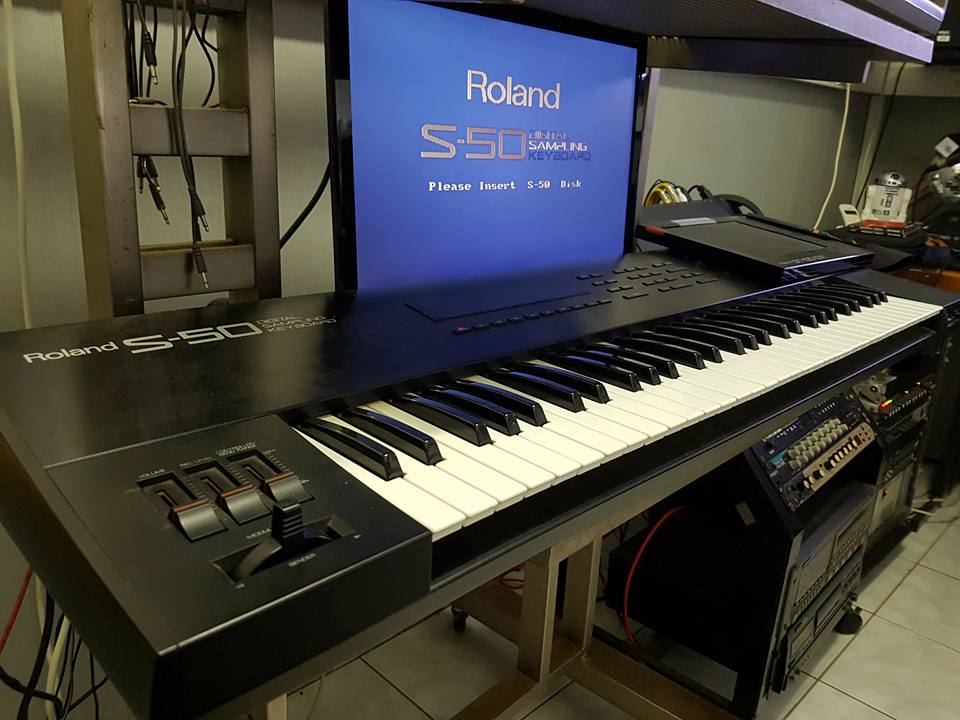

Roland | S-50

Description

Among Roland's line of early keyboard samplers—the S-series—the S-50 can be thought of as the professional model. Still, by today's standards it would be considered limited and lo-fi. However for its time it was a powerful instrument which can still prove useful for many music applications today. It offered a full 61 note keyboard with velocity and aftertouch sensitivity and 16 voice polyphony which was great for live and studio performances. It's easy to use, has an external CRT monitor support for large graphic editing and disk-loadable samples and operating systems (version 2.0 or later is best).

Though editing is a breeze, it is quite sophisticated and can be much easier when using an external CRT monitor and the DT-100 Digitizer Tablet. You get to draw waveforms, auto-loop, tune, edit the multi-stage envelopes, edit digital filters and quickly adjust loops and samples. There is also a SYS-503 sequencer package software which offers basic drum machine type sequencing. Of course most edit parameters, excluding the sequencer, can be modified and tweaked via the Alpha-Juno type alpha-dial.

It's too bad that such a nice looking and well designed synthesizer is home to a tiny 512k-WORD sample memory (756k-byte sample memory). And with 15 to 30kHz variable sampling rates at a 12-bit resolution, the sound quality is almost nice. Roland has a vast sample library of sounds ready to be loaded via the built in 3.5 inch disk drive. Samples of your own (up to 28.8 seconds at 15kHz) can also be saved to disk. The S-50 version 1.0 allowed for 16 samples or "tones". Version 2.0 expanded to 32 samples or "tones". Sampling modes include manual, auto and previous.

BrandRoland
ModelS-50
DeviceSampler
TypeKeys
Engine TypeDigital
EngineSample
Voices (max)16
Multitimbral4
Sampler12-bit, 30kHz, variable
Filter (VCF)Hi-pass, Low-pass digital filters
Memory756kb, 28.8 seconds total sample time
RecordingSYS503 sequencing software
Keys61
Key typeKeys
VelocityY
AftertouchChannel
Audio4 individual outputs
MidiI-O
Extra infoV2.0 32 samples
Produced:1986 - 1987
Legend: Obvious Y: Yes, N: No, N/A: Not Applicable
VCO Voltage Controlled Oscillator DCO Digital Controlled Oscillator
LFO Low Frequency Oscillator Sub Sub Oscillator
VCF Voltage Controlled Filter VCA Voltage Controlled Amplifier
Velocity As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key. Aftertouch Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel.
Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise.
