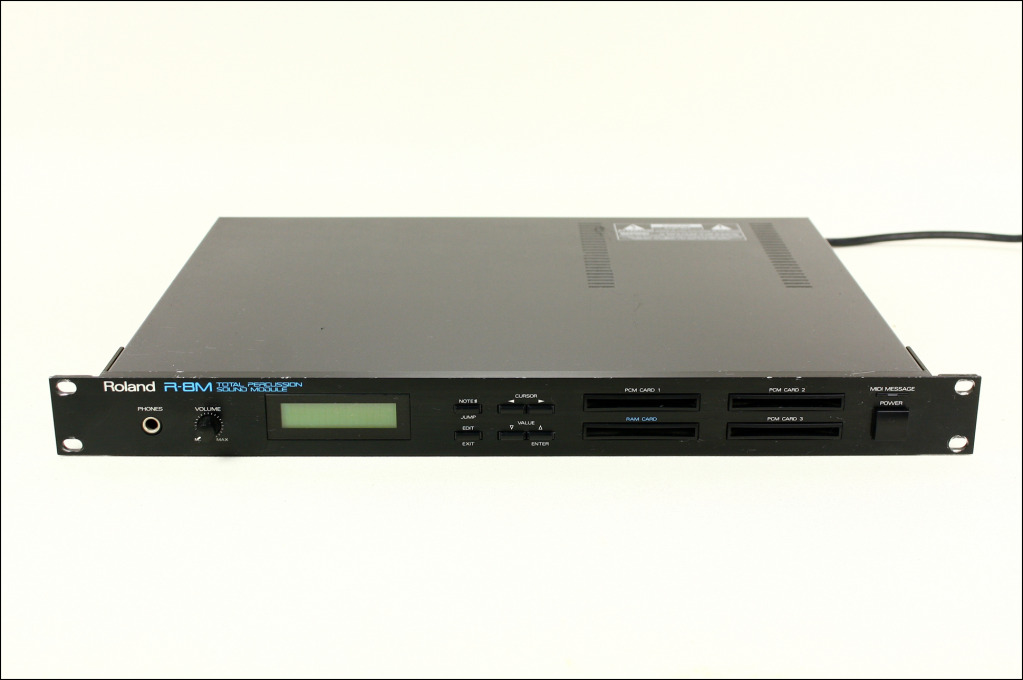

Description	One of the very best drum machines ever. It has excellent sounds which can be expanded by adding additional sound cards (808 and 909 cards). Great rock, electronic, ethnic and industrial style drumkits! Most of the sounds are editable - tune, decay, attack, nuance, output, etc... But its coolest tricks are the Feel Patches which give your program a human-like groove! The sounds are ROM based samples, the R-8 has 32 note polyphony, 68 instruments, 100 patterns and 10 songs! The R-8 later became the R-8mkII with more memory and sounds. A single-space rack-mount version - the R-8M - was also available. It had no sequencer but it did have the R-8 sounds and the ability to read R-8 expansion sound cards. There were also 8 individual outputs, 12 voices polyphony and 4-part multitimbral MIDI. Later, an mkII model was released with upgraded features and memory
Brand	Roland
Model	R-8M
Device	Drum
Type	Rack
Engine Type	Digital
Engine	Sample
Voices (max)	21
Multitimbral	4
Engine Detailed	68 Rom samples
Sequencer	100 Patterns
Recording	10 songs
Controllers	tune, decay, attack, nuance, output, etc
Keys	0
Key type	N/A
Velocity	N/A
Aftertouch	N/A

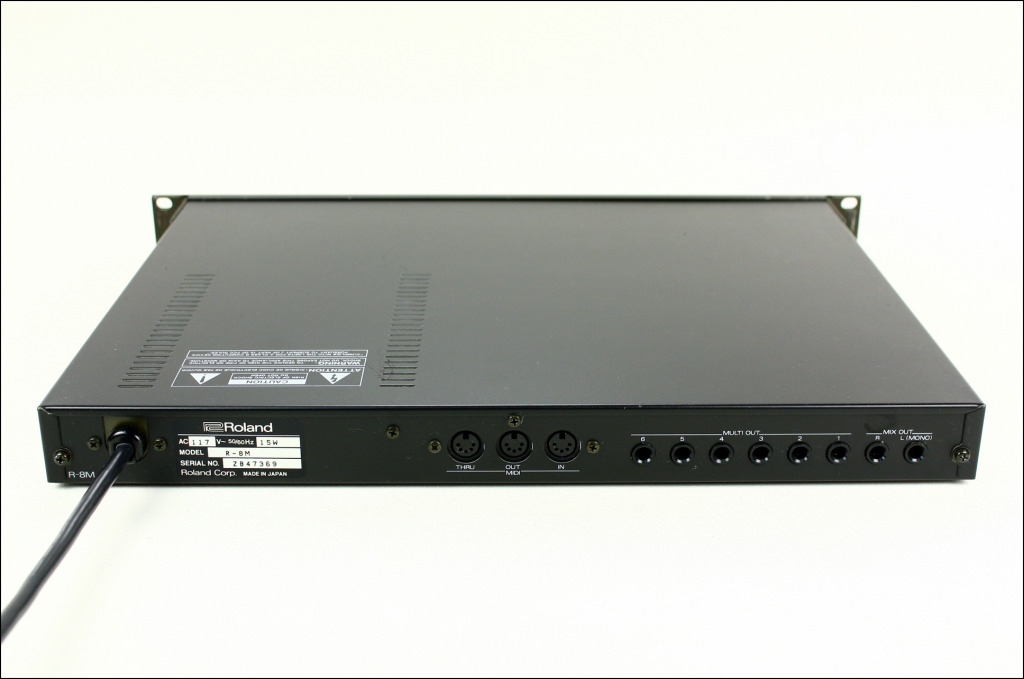

Audio	8 individual out + stereo
Midi	I-O
Produced:	1989 - 1992

Legend:		Obvious	Y: Yes, N: No, N/A: Not Applicable
VCO	Voltage Controlled Oscillator	DCO	Digital Controlled Oscillator
LFO	Low Frequency Oscillator	Sub	Sub Oscillator
VCF	Voltage Controlled Filter	VCA	Voltage Controlled Amplifier
Velocity	As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key.	Aftertouch	Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel.
Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise.
