Roland | MKS-70 Super JX |
|

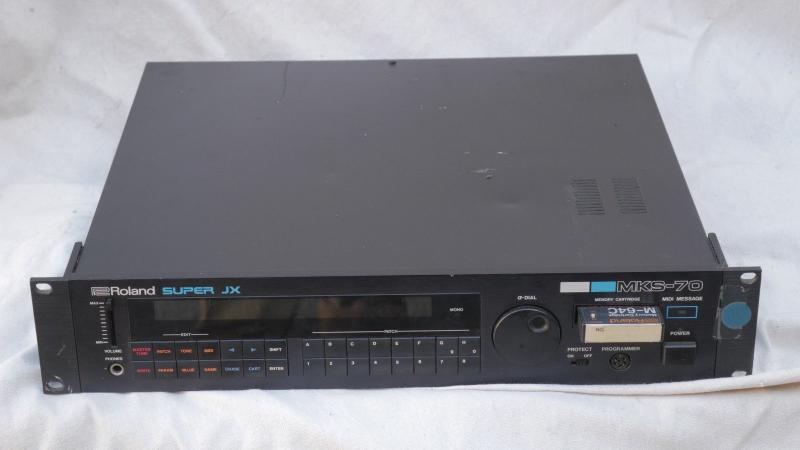

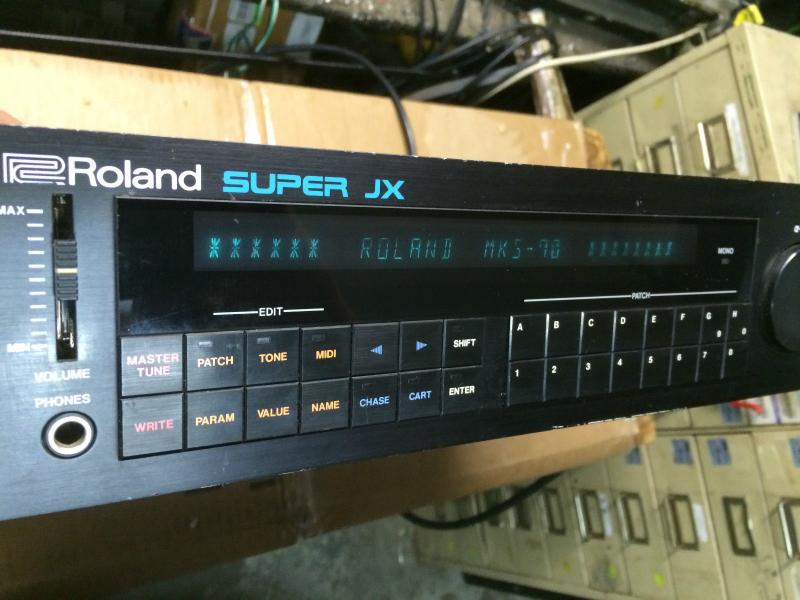

Description | The MKS-70 is an identical rackmount version of the JX-10 synthesizer. Released in 1986 it combines two individual JX-8P synth engines for an outstanding warm and analog sound which is used in many modern studios all over the world. It comes with onboard effects like Chorus and Delay and offers a wider range of programming using the optional PG-800 Programmer. This programmer is highly recommended for those who will be programming unique sounds since editing from the rack-face itself is cumbersome and tedious. The MKS-70 has a "chase-play" function which allows programmable delayed repeats of voices from either of its tone modules. The chorus is either off, slow or fast. |
| Brand | Roland |
| Model | MKS-70 Super JX |
| Device | Synth |
| Type | Rack |
| Engine Type | Analog |
| Engine | DCO |
| Voices (max) | 12 |
| Multitimbral | 1 |
| Oscillators | 2 |
| Engine Detailed | 2 DCO's per voice (24 oscillators) |
| Filter (VCF) | low pass and hi pass filter |
| Envelope (VCA) | 2 ADSR envelope generators per voice |
| FX | Portamento, delay, chorus |
| Memory | External memory cartridges |
| Keys | 0 |
| Key type | N/A |
| Velocity | N/A |
| Aftertouch | N/A |
| Midi | I-O |
| Extra info | Programmable via PG-800 |
| Produced: | 1987 - 1987 |
| Legend: | Obvious | Y: Yes, N: No, N/A: Not Applicable | |
| VCO | Voltage Controlled Oscillator | DCO | Digital Controlled Oscillator |
| LFO | Low Frequency Oscillator | Sub | Sub Oscillator |
| VCF | Voltage Controlled Filter | VCA | Voltage Controlled Amplifier |
| Velocity | As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key. | Aftertouch | Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel. |
| Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise. | |||
