The Ultimate SynthDB | Roland MKS-7 Super Quartet

Browse

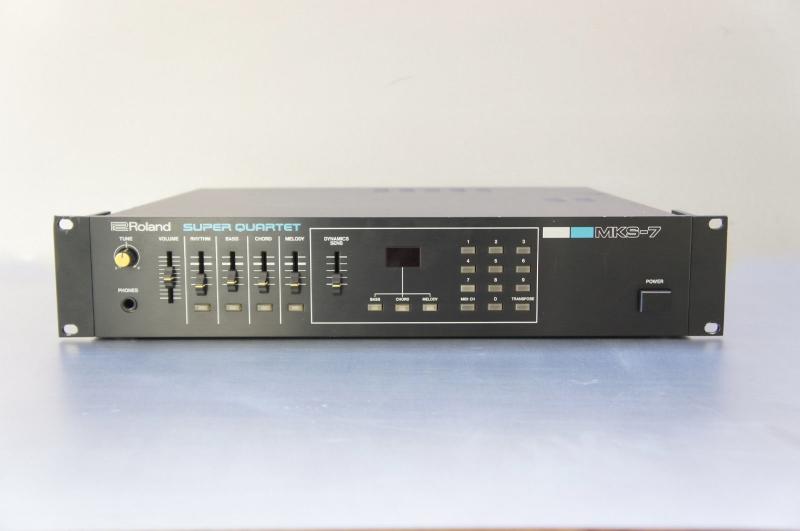

Description	The MKS-7 Super Quartet is a multitimbral synth module with dedicated sections. The Melody section: 2 voice polyphony, 100 presets; Chord section: 4 voice polyphony, 100 presets; Bass section: monophonic, 20 presets; Rhythm section: 11 PCM sounds. The sound and architecture of the Melody, Chord and Bass sections are the same as the Juno 106 synthesizer. The Rhythm section offers up a few basic electronic rock drum sounds borrowed from the TR-707. The beauty of using this sound module is that all 4 sections are available at once. Drums, bass, leads and pads can all play independent parts and patches together making this a very nice all-in one vintage Roland tone module. Just like the Juno 106, the MKS-7 is also controllable via MIDI and System Exclusive messages for editing. Most Juno 106 editors will work for the MKS-7 too. An underrated machine.
Brand	Roland
Model	MKS-7 Super Quartet
Device	Synth
Type	Rack
Engine Type	Hybrid
Engine	DCO, PCM
Voices (max)	8
Multitimbral	4
Oscillators	1
Engine Detailed	3 DCOs (1 per part) + PCM for drums
Filter (VCF)	non-resonant high pass and resonant low pass
Envelope (VCA)	ADSR, level and gate
Memory	120 patches
Keys	0
Key type	N/A
Velocity	N/A
Aftertouch	N/A
Midi	I-O
Produced:	1986 - 1986

Legend:		Obvious	Y: Yes, N: No, N/A: Not Applicable
VCO	Voltage Controlled Oscillator	DCO	Digital Controlled Oscillator
LFO	Low Frequency Oscillator	Sub	Sub Oscillator
VCF	Voltage Controlled Filter	VCA	Voltage Controlled Amplifier
Velocity	As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key.	Aftertouch	Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel.
Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise.
