Roland | JX-8P

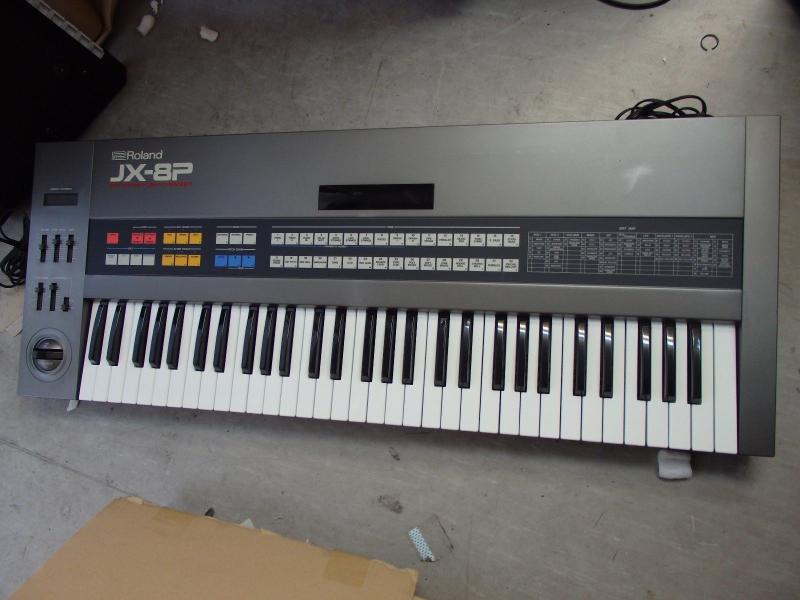

The JX-8P is a decent analog polysynth. It has 6 voices of polyphony, great MIDI implementation and patch storage as well as an external memory cartridge slot. Though it is far more advanced than its predecessor, the JX-3P, the JX-8P has its drawbacks. Hands-on programming is sacrificed and reduced to assigning the parameter you want to tweak to a data-slider near the pitch/mod bender. Enter the PG-800 controller which gives you total control of all the JX-8P's editable parameters with hands-on traditional slider control. Membrane buttons dominate the front panel of the JX-8P providing access to the various preset and user patches and to page through and assign editable parameters.
Professional features can still be found under the hood of the JX-8P. Its 61 note keyboard is velocity and aftertouch sensitive. Just like the Juno synthesizers it uses DCO's for a very stable system, however its sounds are a little thin and bright. It also features portamento, unsion and solo (monosynth) performance modes.
|Engine Detailed||2 DCO's per voice (12 oscillators)|
|Filter (VCF)||Resonant lowpass & non-resonant highpass|
|FX||Chorus, Portamento, chase-play|
|Memory||64 patches + External memory cartridges|
|Extra info||Programmable via PG-800|
|Produced:||1985 - 1985|
|Legend:||Obvious||Y: Yes, N: No, N/A: Not Applicable|
|VCO||Voltage Controlled Oscillator||DCO||Digital Controlled Oscillator|
|LFO||Low Frequency Oscillator||Sub||Sub Oscillator|
|VCF||Voltage Controlled Filter||VCA||Voltage Controlled Amplifier|
|Velocity||As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key.||Aftertouch||Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel.|
|Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise.|
