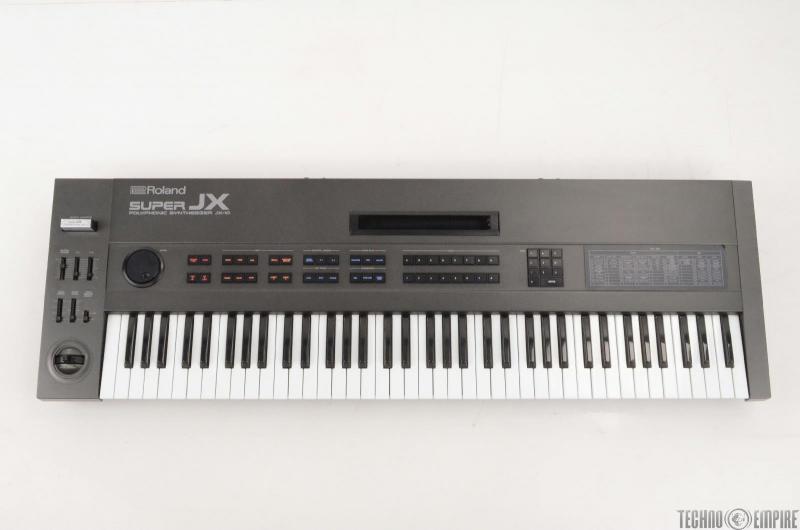

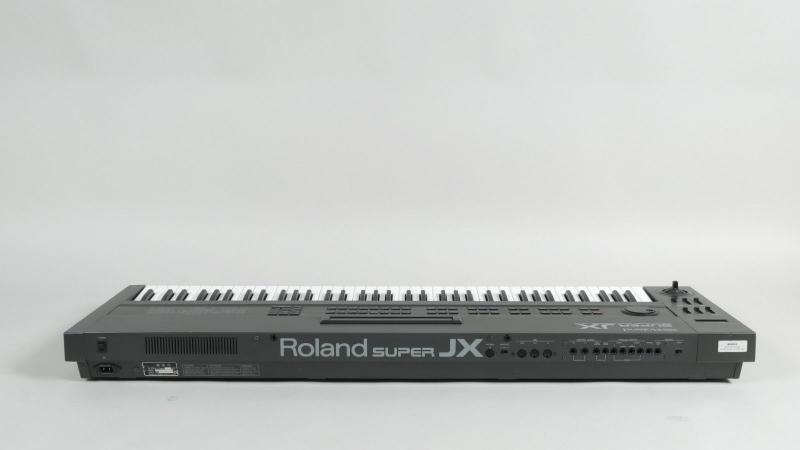

Roland | JX-10

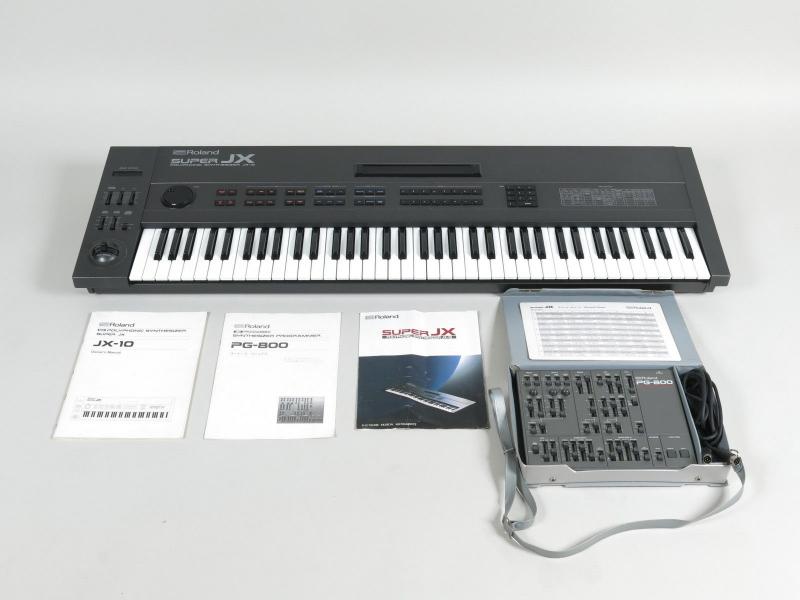

Released in 1985 the JX-10 (Super JX) combines two individual JX-8P's for an outstandingly warm, rich and analog sound which is still used in many modern studios all over the world. This synth was the first Roland Synth to be fitted with a quality 76 note keyboard with velocity and aftertouch. Two DCO's per voice, two ADSR envelope generators per voice, and a resonant lowpass & non-resonant highpass filters are only the beginning. It has a 12 voice polyphony for a total of 24 oscillators and it is by far one of the most programmable synths of its time! However, as on the JX-8P, knobs and sliders have been replaced by low-profile buttons and a nice LCD display. Although this may look sleek and elegant, it makes editing a chore. Assign parameters to the alpha dial for tweaking, one at a time, or get the optional PG-800 Programmer to provide traditional, hands-on, dedicated sliders for editing the JX-10's parameters.
The JX10 has a Chorus effect and a chase-play Delay function. The chase-play function allows programmable delayed repeats of voices by alternating patches of the upper and lower modules. The simple chorus effect is either off, slow or fast. It has two programmable sliders (if you don't use the PG-800) for some real-time control which can be recorded along with other effects and keyboard modes into one of the 64 Program Patches. This is in addition to its standard 50 preset and 50 user patch memory. A simple sketch-pad 1-track real-time sequencer is also on-board. It stores sequence data directly to an M16C card, or an M64C card for Patch/Tone OR sequence data. The M16C has a capacity of 400 notes, the M64C 1440, according to the manual.
The JX-10 also comes in a rack-mount version known as the MKS-70. It's worth noting that the JX-10 can not be edited via SysEx, however the MKS-70 can which is one reason many have chosen the rack version over the keyboard. The JX-10 can make bulk dumps of its sounds over sysex, but only with (discontinued) Roland M64C RAM cartridges.
|Engine Detailed||2 DCO's per voice (24 oscillators)|
|Filter (VCF)||One resonant low pass and one non-resonant hi pass filter (which can be used simultaneously)|
|Envelope (VCA)||2 ADSR envelope generators per voice|
|Memory||50 preset, 50 user patches, 64 Program Patches, External memory cartridges|
|Recording||1-track real-time sequencer, 400 note memory (M-32 card), 800 note memory (M-64 card)|
|Extra info||Programmable via PG-800|
|Produced:||1986 - 1986|
|Legend:||Obvious||Y: Yes, N: No, N/A: Not Applicable|
|VCO||Voltage Controlled Oscillator||DCO||Digital Controlled Oscillator|
|LFO||Low Frequency Oscillator||Sub||Sub Oscillator|
|VCF||Voltage Controlled Filter||VCA||Voltage Controlled Amplifier|
|Velocity||As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key.||Aftertouch||Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel.|
|Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise.|
