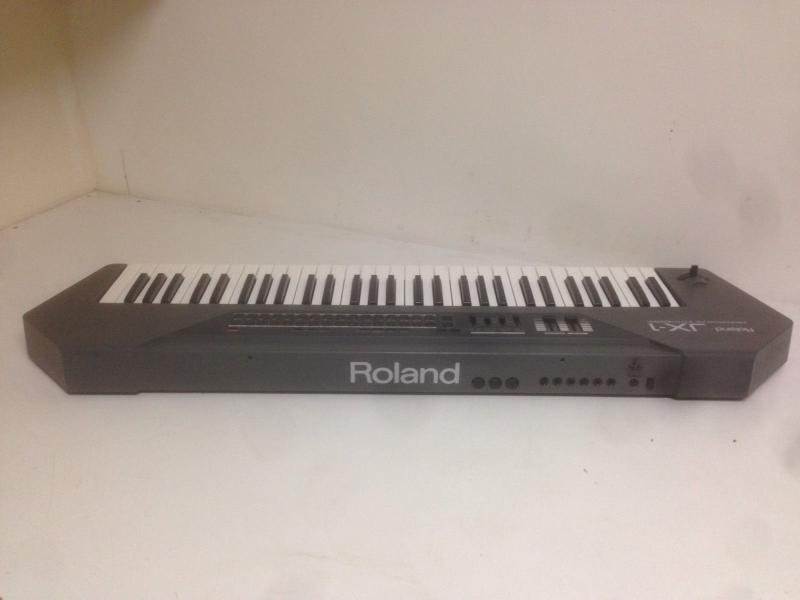

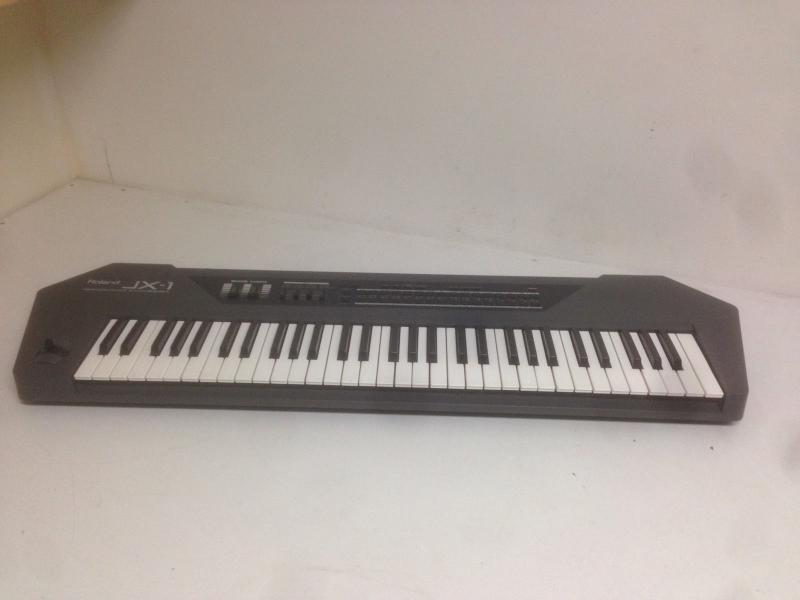

Description | The Roland JX-1 is a performance oriented playback synth a minimum of editing controls featuring classic Roland D-50, U-20, and D70 sounds among it's collection. With it's 4 editing sliders for basic filter, amp, and effects level controls, the user could have partial realtime editing control over the sound. There are also two main sliders for volume and "brilliance" which was a filter control that offered to make the sound soft/dull to bright and cleaner.
Roland's popular joystick is also available onboard with pitch and modulation control. Also an unknown and way more useful feature is that all parts of the synthesizer engine are available via MIDI sysex. With proper software and editing hardware the user could dramatically create original sounds. However is order to save/store them the edits would have to be saved via software/hardware and later recalled through MIDI. |
| Brand | Roland |
| Model | JX-1 |
| Device | Synth |
| Type | Keys |
| Engine Type | Digital |
| Engine | PCM |
| Voices (max) | 24 |
| Multitimbral | 16 |
| Oscillators | 2 |
| LFO | Saw Up, Saw Down, Square, Triangle |
| Engine Detailed | PCM with 64 sounds |
| Filter (VCF) | 24dB Slope (4-pole), High Pass, Low Pass |
| Envelope (VCA) | Attack, Decay, Decay 2, Sustain, Release |
| FX | Reverb, Chorus, delay |
| Memory | 64 preset, 32 user |
| Keys | 61 |
| Key type | Keys |
| Velocity | Y |
| Aftertouch | N |
| Midi | I-O-T |
|
Produced: | 1991 - 1991 |
| Legend: |
Obvious |
Y: Yes, N: No, N/A: Not Applicable |
| VCO |
Voltage Controlled Oscillator |
DCO |
Digital Controlled Oscillator |
| LFO |
Low Frequency Oscillator |
Sub |
Sub Oscillator |
| VCF |
Voltage Controlled Filter |
VCA |
Voltage Controlled Amplifier |
| Velocity |
As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key. |
Aftertouch |
Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel. |
| Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise. |
