Description | The Roland JV-1080 was one of the hottest and most popular digital synthesizers ever to come from Roland. Incredible sound quality capable of emulating any instrument imaginable plus totally fat analog synth type sounds and loads of percussion! It has 64 voices of polyphony and 16 part multitimbral, it's no wonder this is part of almost every Film Score Composers set-up as well as many more artists and hobbyists!

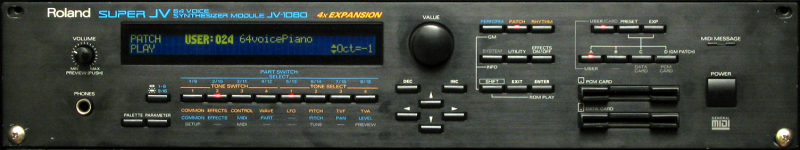

It has 8MB of sounds and it also offers a lot of expandability with 4 expansion slots and 2 data card memory slots. You can get up to 42MB of sounds by adding any of the popular JV-80 expansion cards suited for Techno, World Instruments, Orchestral or Synthesizers. The 1080 has a large LCD screen, lots of effects and filters for creative flexibility, motion control and extensive MIDI implementation. Editing is intense but enhanced and simplified by external editors. |
| Brand | Roland |
| Model | JV-1080 |
| Device | Synth |
| Type | Rack |
| Engine Type | Digital |
| Engine | Sample, LA |
| Voices (max) | 64 |
| Multitimbral | 16 |
| LFO | 2 LFO's (sine, saw, square, triangle, trapezoid, sample&hold, random and chaos) w/ key or external sync. Can modulate the pitch, filter, pan, or level |
| Engine Detailed | Digital, LAS, 8MB Samples expandable to 42 |
| Filter (VCF) | TVF (lowpass, bandpass, high pass, peak) with cutoff, resonance, key follow and velocity sensitivity |
| Envelope (VCA) | TVA ADSR (tone level, pan, key follow) |
| FX | Eight Reverbs, One Chorus, 40 EFX Multi-Effects |
| Memory | 640 Patches, 128 performances |
| Keys | 0 |
| Key type | N/A |
| Velocity | N/A |
| Aftertouch | N/A |
| Midi | I-O-T |
|
Produced: | 1994 - 2001 |
| Legend: |
Obvious |
Y: Yes, N: No, N/A: Not Applicable |
| VCO |
Voltage Controlled Oscillator |
DCO |
Digital Controlled Oscillator |
| LFO |
Low Frequency Oscillator |
Sub |
Sub Oscillator |
| VCF |
Voltage Controlled Filter |
VCA |
Voltage Controlled Amplifier |
| Velocity |
As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key. |
Aftertouch |
Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel. |
| Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise. |
