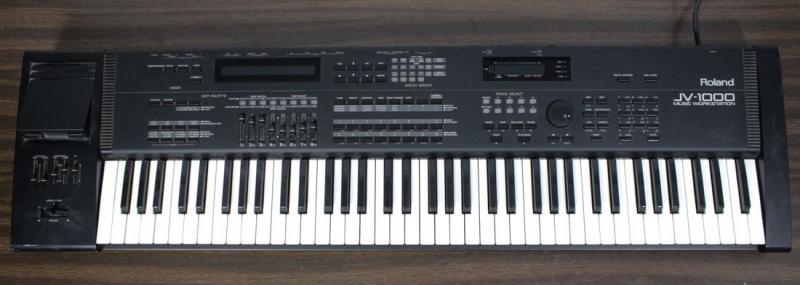

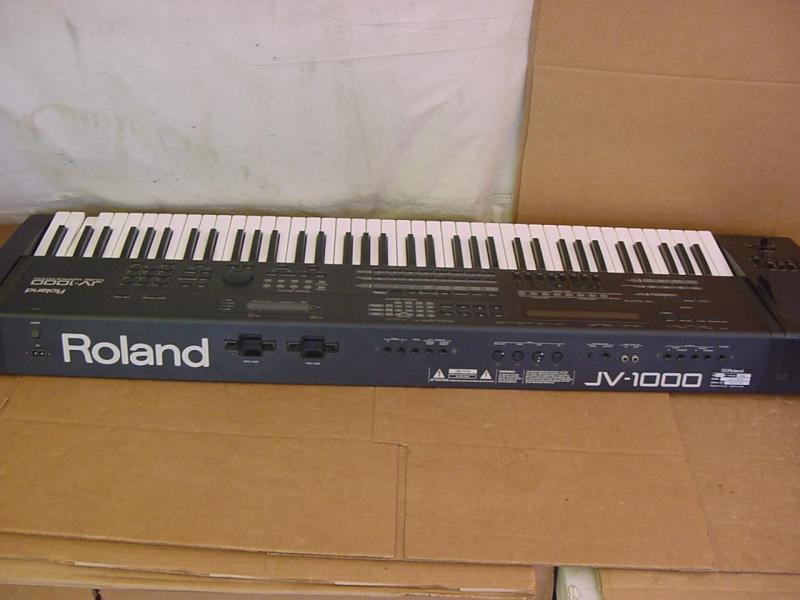

Roland | JV-1000


Produced in 1993, the JV-1000 is a combination of the Roland MC-50mkII Sequencer and a sound module from the JV-80, with some waveforms added.

The keyboard has 76 semi-weighted keys and comes with a complex front panel which has 8 control sliders. On the one side you will find five sliders that control level and presence for both the internal sound source and the v-exp board. The other slider is assignable as a MIDI parameter and the bender, which can also control the modulation parameter.

The keyboard can be used in three modes:
- Patch: where you can play a single tone over the entire keyboard
- Performance: puts together a max of 8 patches
- Rhythm: plays one of the 5 rhythm sections of the keyboard
- V-EXP: when you have connected a VE-GS1 board to increase waveforms and polyphony, you can use this mode to play the V-Exp tones.

The JV-1000 offers great possibilities of expansion by adding a V-EXP board, PCM and data cards. This synth also presents great MIDI capability, with two different outputs for the keyboard and the sequencer; all MIDI cc parameters are controllable via the assignable slider, the after touch parameter or the two pedals.

Engine TypeDigital
Voices (max)28
LFO2 LFOs routable to pitch, TVA amps, or TVF filters
Engine Detailed4 per voice; Digital 4 MB of ROM sampled sounds
Filter (VCF)Digital TVF filters with cutoff & resonance
FX2 effects units with chorus, reverb and delay
Memory256 Patches (can expand to about 600); 64 Performances
Key typeKeys
Legend: Obvious Y: Yes, N: No, N/A: Not Applicable
VCO Voltage Controlled Oscillator DCO Digital Controlled Oscillator
LFO Low Frequency Oscillator Sub Sub Oscillator
VCF Voltage Controlled Filter VCA Voltage Controlled Amplifier
Velocity As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key. Aftertouch Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel.
Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise.
