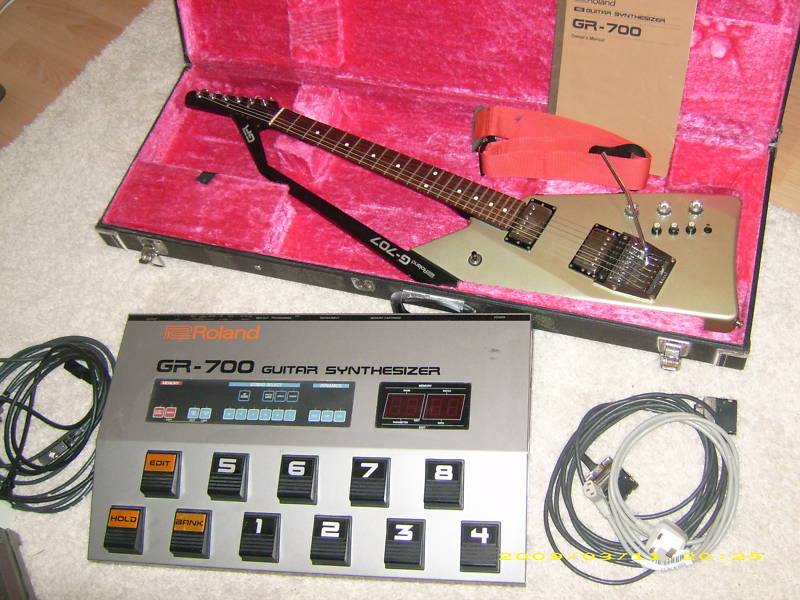

Description	The GR-700 is a stomp-box guitar synth with the same synth engine as the JX-3P. The G-707 is the flashy guitar controller which connects to the 700 via 24 pin cable. On the 707 guitar are knobs for the cut-off edit and LFO modulation! So now you can play synth sounds with the guitar instead of a keyboard. Sound-wise it's a pretty good synth. You will need the PG-200 programmer if you want to edit patches more easily. Recall patches by stomping on the foot pedals. The GR-700 is a six voice polyphonic with two DCO's per voice which means analog oscillators and sounds with digital stability and control. The typical assortment of a resonant lowpass filter, ADSR envelope, LFO and oscillator sections are here with easy and straight-forward programming.
Brand	Roland
Model	GR-700
Device	Synth
Type	Floor-unit
Engine Type	Analog
Engine	DCO
Voices (max)	6
Multitimbral	1
Oscillators	2
LFO	1
Noise	Y
Engine Detailed	2 DCO's Square, Sawtooth or Pulse Waveform
Filter (VCF)	Resonant Low pass
Envelope (VCA)	ADSR
FX	Chorus
Memory	32 preset, 32 user, 64 on memory card
Keys	0
Key type	N/A
Velocity	N/A
Aftertouch	N/A
Midi	O
CV-gate	Roland 24-pin interface from G-707
Extra info	Programmable via PG-200
Produced:	1984 - 1986

Legend:		Obvious	Y: Yes, N: No, N/A: Not Applicable
VCO	Voltage Controlled Oscillator	DCO	Digital Controlled Oscillator
LFO	Low Frequency Oscillator	Sub	Sub Oscillator
VCF	Voltage Controlled Filter	VCA	Voltage Controlled Amplifier
Velocity	As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key.	Aftertouch	Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel.
Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise.
