Roland | G-707 |
|

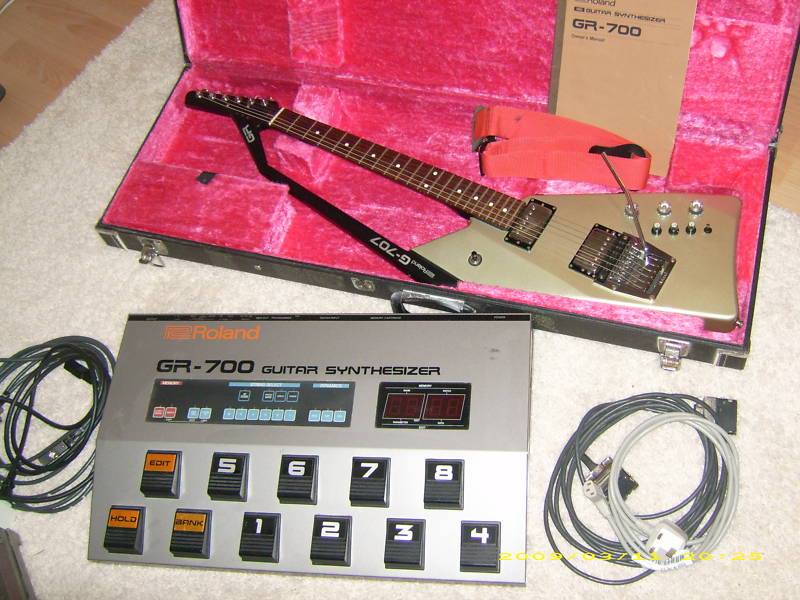

Description | The GR-700 is a stomp-box guitar synth with the same synth engine as the JX-3P. The G-707 is the flashy guitar controller which connects to the 700 via 24 pin cable. On the 707 guitar are knobs for the cut-off edit and LFO modulation! So now you can play synth sounds with the guitar instead of a keyboard. Sound-wise it's a pretty good synth. You will need the PG-200 programmer if you want to edit patches more easily. Recall patches by stomping on the foot pedals. The GR-700 is a six voice polyphonic with two DCO's per voice which means analog oscillators and sounds with digital stability and control. The typical assortment of a resonant lowpass filter, ADSR envelope, LFO and oscillator sections are here with easy and straight-forward programming. |
| Brand | Roland |
| Model | G-707 |
| Device | Misc |
| Type | Guitar |
| Engine Type | Controller |
| Engine | Controller |
| Engine Detailed | Controller for the GR-700 with Roland 24-pin interface |
| Controllers | Cut-off and LFO contols |
| Keys | 0 |
| Key type | N/A |
| Velocity | N/A |
| Aftertouch | N/A |
| CV-gate | Roland 24-pin interface to GR-700 |
| Produced: | 1984 - 1986 |
| Legend: | Obvious | Y: Yes, N: No, N/A: Not Applicable | |
| VCO | Voltage Controlled Oscillator | DCO | Digital Controlled Oscillator |
| LFO | Low Frequency Oscillator | Sub | Sub Oscillator |
| VCF | Voltage Controlled Filter | VCA | Voltage Controlled Amplifier |
| Velocity | As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key. | Aftertouch | Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel. |
| Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise. | |||
