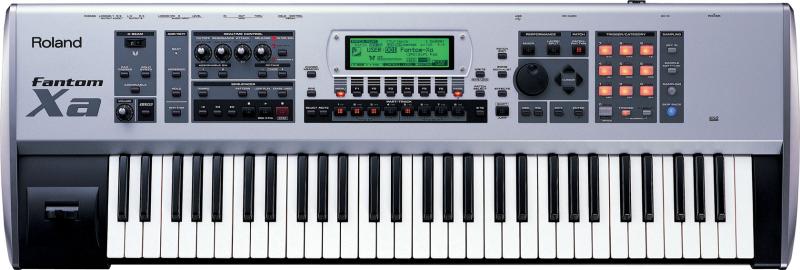

Description | Roland’s Fantom-X series has redefined the cutting-edge of sample-based workstation technology. If you crave Fantom power, but want a more cost-effective way to Fantomize your rig, Roland has the perfect synth for you. Meet the Fantom-Xa — a multifaceted sampling workstation with an affordable price tag! The Fantom-Xa includes many of the most popular features from the top-of-the-line Fantom, including 128-voice polyphony, Skip Back Sampling, a high-resolution built-in sequencer, realtime audio time-stretching, COSM modeling effects, mastering processing, USB port, WAV/AIF compatibility, D Beam control, SRX expansion, and more! |
| Brand | Roland |
| Model | Fantom Xa |
| Device | Synth |
| Type | Keys |
| Engine Type | Digital |
| Engine | ROM, Sample |
| Voices (max) | 128 |
| Multitimbral | 16 |
| Oscillators | 4 |
| LFO | 2 Sample & Hold, Saw Up, Saw Down, Square, Triangle, Clocked, Delay, Freerun, Key Sync |
| Sampler | 16 bit, 44.1 kHz. 32 MB expandable to 288MB |
| Filter (VCF) | 2 12dB Slope (2-pole), 24dB Slope (4-pole), Comb, High Pass, Low Pass, Resonance |
| Envelope (VCA) | 2 Attack, Decay, Sustain, Release, Looping |
| FX | Multi-Effects: 3 systems, 78 types. Chorus: 3 types, Reverb: 5 types, Input Effects: 6 types, Mastering Effects: 3-band compressor |
| Memory | 1,024 Patches (640 Preset Patches, 128 User Patches and 256 GM2 sounds) |
| Drums | Rhythm Pattern Preset: 256 (32 groups), User: 256 (32 groups) |
| Arpeggiator | Preset: 128, User: 128, Chord Memory Preset: 64, User: 64 |
| Recording | Phrase Tracks (16 MIDI channels per track): 16 Pattern Track (16 MIDI channels per track): 1 Tempo Track: 1 Beat Track: 1 Note Capacity: approx. 400,000 notes. Song Length: 9,998 measures, Realtime, Step. |
| Keys | 61 |
| Key type | Keys |
| Velocity | Y |
| Aftertouch | Channel |
| Audio | 2 stereo |
| Midi | I-O-T, USB |
|
Produced: | 2004 |
| Legend: |
Obvious |
Y: Yes, N: No, N/A: Not Applicable |
| VCO |
Voltage Controlled Oscillator |
DCO |
Digital Controlled Oscillator |
| LFO |
Low Frequency Oscillator |
Sub |
Sub Oscillator |
| VCF |
Voltage Controlled Filter |
VCA |
Voltage Controlled Amplifier |
| Velocity |
As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key. |
Aftertouch |
Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel. |
| Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise. |
