Roland | Fantom XR |
|

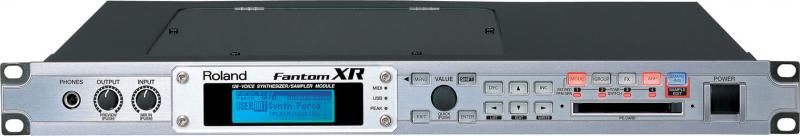

Description | The Fantom-XR brings powerful sampling and synthesis to a convenient 1U rack module. With room for over 1GB of sounds, this affordable module sets a new standard for expandability. The 128MB internal wave ROM includes expressive new Patches like an 88-key split piano, plus room for six SRX expansions. Full-blown user sampling is also supported, along with .WAV/AIFF compatibility for loading samples via USB. And with PC Card storage, the Fantom-XR makes backing up data quick and easy. Like the Fantom-X keyboards, the Fantom-XR module is based on Roland's powerful new sound generator chip. This chip delivers maximum audio processing performance at a great price - including an expressive stereo 4-tone synthesis engine with 128-voice polyphony. The internal 128MB wave ROM includes quality-focused waveforms - like Roland's amazing 88-key split piano (a multi-stage velocity-switched stereo sampled piano), lively new string ensembles, fat drum sounds and more - recorded using world-class studios and renowned engineers like Dan Blessinger (Martinsound). The internal wave ROM can be expanded up to 512MB using six optional SRX-Series expansions. No other module boasts this kind of sound library! Out of the box, the Fantom-XR ships with a 16MB sample memory for loading .WAV/AIFF files via USB or for recording your own sounds via the analog and digital inputs. A host of sample editing tools - including a Wave Edit screen, Chop function and real time timestretching - give you plenty of control over your samples. And by adding optional DIMM memory, you can load up to 528MB of audio into the Fantom-XR. Combined with a fully expanded wave ROM, that's over 1GB of sounds! Editor software will be bundled for detailed Patch editing and backing up data is easy using optional PC Cards (up to 1GB) or via USB. Even without an internal sequencer, the Fantom-XR's 128 voices and capacity for over 1GB of waveforms make it the perfect module for use with a computer or hardware sequencer. In fact, it boasts the same tight integration of audio and MIDI as its keyboard cousins, but with greater expandability. Just MIDI it up to your sequencer of choice, and let the Fantom-XR automatically sync up all your audio loops to tempo using a high-quality realtime timestretching algorithm. You can even record linear audio phrases and play them back from RAM like a digital recorder! Studio-Quality Effects and Mastering Tools The Fantom-XR boasts the same powerful effects processing found in the Fantom-X keyboards - including three multi-effects processors that can be freely configured, plus separate reverb and chorus processors. The multi-effects are extremely powerful with algorithms ranging from COSM Guitar Amp Modeling and Lo-Fi processing to tempo-synced delay, Slicer, Isolator and more. A dedicated Mastering processor serves up tools like multi-band compression to give your music a tighter, punchier sound. The Simplicity of USB The onboard USB port can be used as a USB-MIDI interface - perfect for sequencing the Fantom-XR from a computer. USB also makes for a great way to transfer audio files to and from the module - just connect a cable, then drag and drop away. The Fantom-XR can import and export .WAV and AIFF files, making it compatible with a wide variety of sounds available on CD-ROM and via the Internet. Give your music a serious sonic upgrade with the Fantom-XR. |
| Brand | Roland |
| Model | Fantom XR |
| Device | Synth |
| Type | Keys |
| Engine Type | Digital |
| Engine | ROM, Sample |
| Voices (max) | 128 |
| Multitimbral | 16 |
| Oscillators | 4 |
| LFO | 2 Sample & Hold, Saw Up, Saw Down, Square, Triangle, Clocked, Delay, Freerun, Key Sync |
| Sampler | 16 bit, 44.1 kHz. 32 MB expandable to 544MB |
| Filter (VCF) | 2 12dB Slope (2-pole), 24dB Slope (4-pole), Comb, High Pass, Low Pass, Resonance |
| Envelope (VCA) | 2 Attack, Decay, Sustain, Release, Looping |
| FX | Multi-Effects: 3 systems, 78 types, Chorus: 3 types, Reverb: 5 types, Input Effect: 6 types, Mastering Effect: 3-band Compressor |
| Memory | 1,024 Preset Patches, 256 User Patches and 256 GM2 sounds), 64 Performances ROM/RAM. |
| Drums | Rhythm Pattern Preset: 256 (32 groups), User: 256 (32 groups) |
| Arpeggiator | Preset: 128, User: 128, Chord Memory Preset: 64, User: 64 |
| Recording | Phrase Tracks (16 MIDI channels per track): 16 Pattern Track (16 MIDI channels per track), 8 Stereo audio tracks: 1 Tempo Track: 1 Beat Track: 1 Note Capacity: approx. 20,000 notes. Song Length: 9,998 measures, Realtime, Step. |
| Keys | 0 |
| Key type | N/A |
| Velocity | N/A |
| Aftertouch | N/A |
| Audio | Stereo I-2O and SPDIF I-O |
| Midi | I-O-T, USB |
| Produced: | 2004 - 2008 |
| Legend: | Obvious | Y: Yes, N: No, N/A: Not Applicable | |
| VCO | Voltage Controlled Oscillator | DCO | Digital Controlled Oscillator |
| LFO | Low Frequency Oscillator | Sub | Sub Oscillator |
| VCF | Voltage Controlled Filter | VCA | Voltage Controlled Amplifier |
| Velocity | As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key. | Aftertouch | Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel. |
| Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise. | |||
