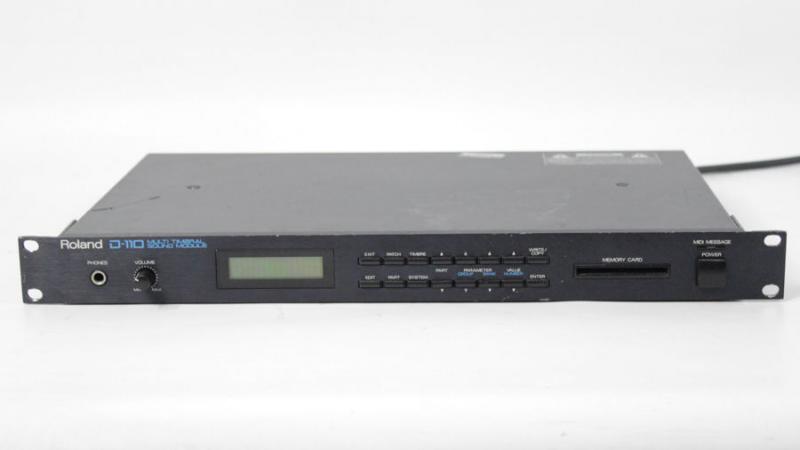

Roland | D-110


Second generation D-50 style synthesis. The D-10 is a Digital Linear Arithmetic Synthesizer and the D-110 is its upgraded rackmount version. Capable of decent acoustic sounds and great new synth-type sounds the D-10/110 is a great and cheaper alternative to the popular D-50. It has a confusing synthesis / editing method composed of tones, partials and timbres. Basically it all boils down to tricky programming which, if you know what your doing, can have interesting and unique results. On-board drum sounds, reverb effects and internal / external memory storage are also a plus.

The D-110 (a direct descendent of the D-50 keyboard and the D-550 module) is based on Roland's "Linear Arithmetic" (LA) synthesis. They never say just what Linear Arithmetic means. All that they say about it in the owner's manual is that "LA synthesis involves a great many technological advances resulting not only in a superior sound quality but also an improved ease of programming." Hmm... The manual goes on to say that, along with the stereo outs, "the D-110 features 6 independent Multi outputs where 6 different sounds can be sent out separately." "The D-110 has 8 Parts which work like conventional synthesizers, and a Rhythm Part which behaves like the sounds of a rhythm machine. Each Part can be controlled by information on a different MIDI channel. "A Tone is the basic unit of sound." However, each Tone is comprised of up to four "Partials" grouped into two pairs. The D110 can play as many as 32 Partials at one time. Therefore, if all of the sounds you are playing use all four available Partials, your polyphony is cut down to only 8 notes. "A Partial uses either a Synthesizer Sound Generator ( = similar to a conventional analog synthesizer) or a PCM Sound Generator ( = PCM sampling)." Each pair of Partials may be outputted separately or ring modulated together. "The D-110's memory capacity can retain 128 different Preset Tones, 64 user-programmed Tones, and 63 Preset Rhythm Tones. A Timbre consists of Tones and Performance Controlling Functions. The D-110 can store up to 128 Timbres, and any of these Timbres can be aligned to each Part. A Patch is a collection of Reverb [from the D-110's Reverb section] and Part settings. The D-110 can store up to 64 Patches." "The Rhythm Part of the D-110 can use up to 85 Rhythm Tones, Preset Rhythm Tones, and the Tones you have programmed yourself. Each Rhythm Tone can have a different Pan and Level setting, as desired."

The follow-up D-20 keyboard version adds an 8-track sequencer.

Engine TypeDigital
EnginePCM, LA
Voices (max)32
Engine DetailedDigital LAS (Linear Arithmetic Synthesis) & ROM Samples
FX8 Effects
Memory128 internal & 128 external patches, 64 performances. Drums: 1 kit, 63 sounds
Key typeN/A

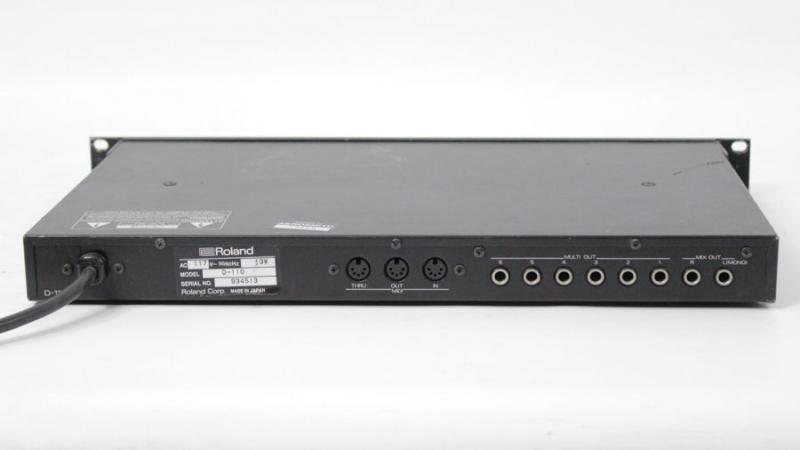

Audio6 induvidual outs
Produced:1988 - 1988
Legend: Obvious Y: Yes, N: No, N/A: Not Applicable
VCO Voltage Controlled Oscillator DCO Digital Controlled Oscillator
LFO Low Frequency Oscillator Sub Sub Oscillator
VCF Voltage Controlled Filter VCA Voltage Controlled Amplifier
Velocity As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key. Aftertouch Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel.
Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise.
