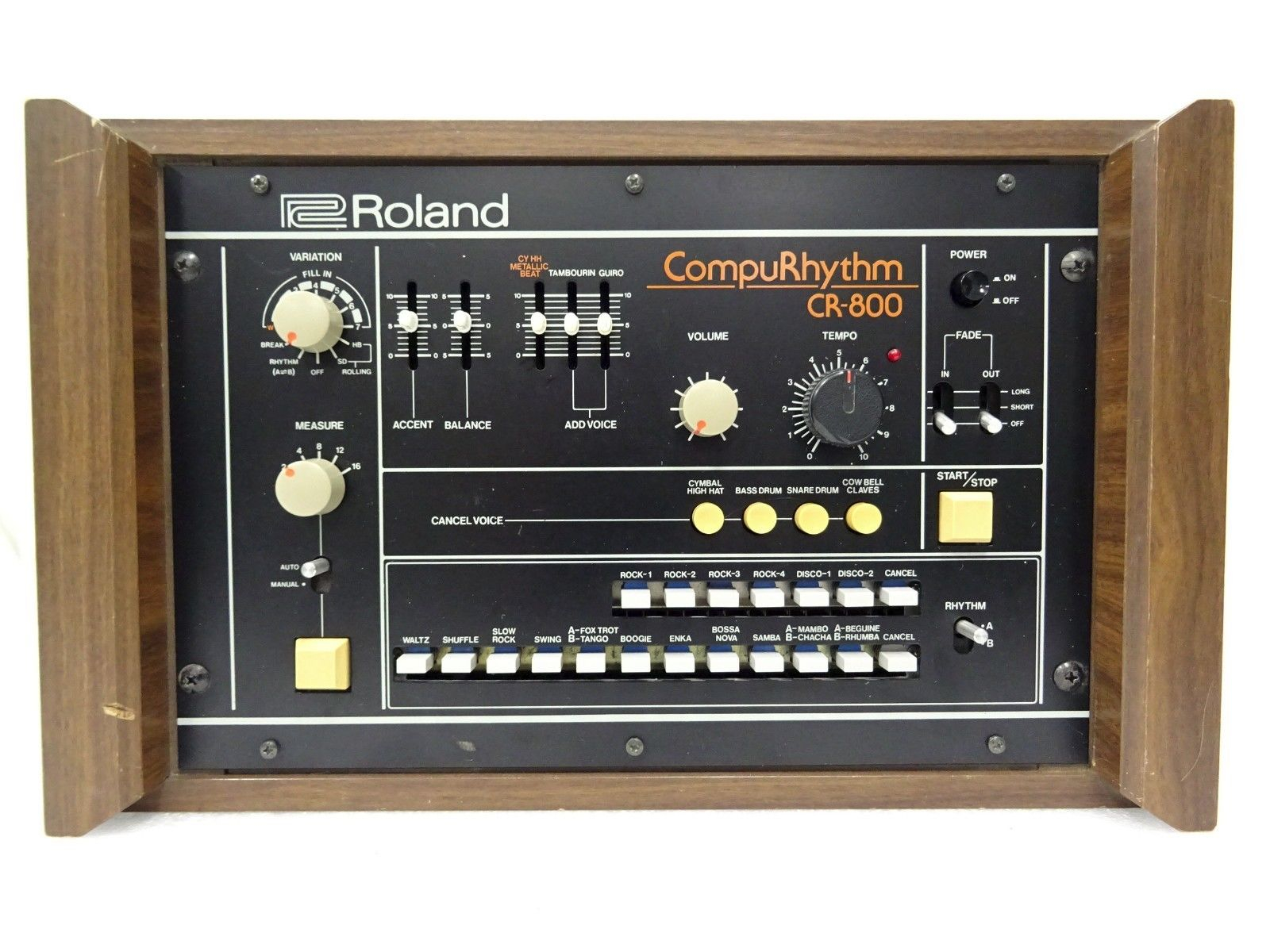

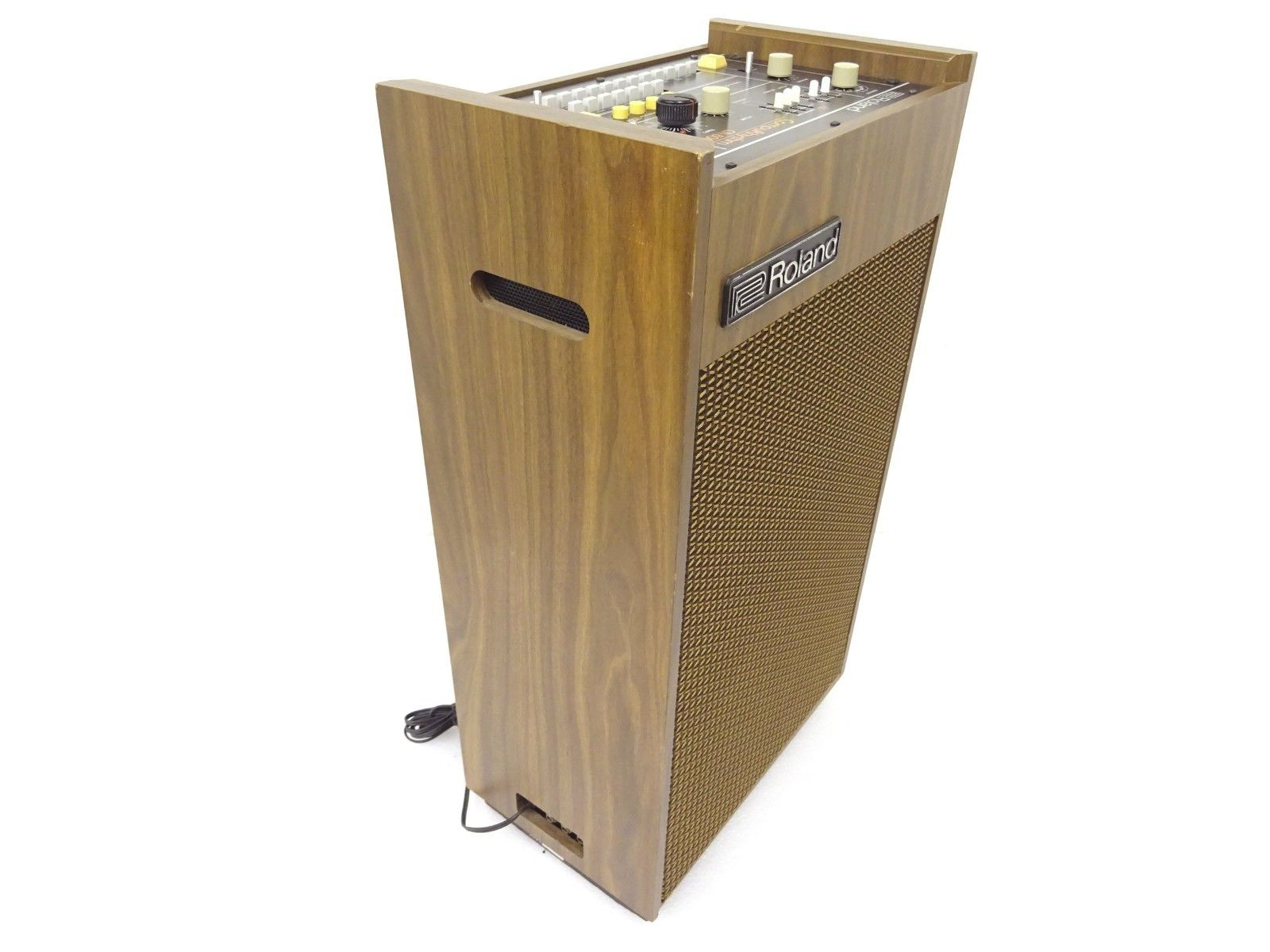

Description | Sitting somewhere in between the CR-68 and CR-78, the Roland CR-800 was the rarest of the range. It featured the same sounds and rhythms as the other CR machines, with the addition of a floor speaker cabinet. Although it was not programmable like the CR-78 is, it offered a greater amount of variations than the CR-68. The built-in sounds were a development on the sounds of the earlier Roland TR machines. |
| Brand | Roland |
| Model | CR-800 |
| Device | Drum |
| Type | Desktop |
| Engine Type | Analog |
| Engine | VCO, preset |
| Voices (max) | 4 |
| Engine Detailed | Sounds: Kick, Snare, Rim, Cow Bell, HiHats, Cymbals, Congas, Bongos, Tambourine, Guiros |
| Drums | 34 preset rhythms |
| Sequencer | Rock, Disco, Waltz, Shuffle, Slow Rock, Swing, Fox Trot, Tango, etc. |
| Controllers | Balance, tempo, level, accent |
| Keys | 0 |
| Key type | N/A |
| Velocity | N/A |
| Aftertouch | N/A |
| CV-gate | Trigger out, 24ppq (0-5V) V-Trig clock pulse |
|
Produced: | 1978 - 1981 |
| Legend: |
Obvious |
Y: Yes, N: No, N/A: Not Applicable |
| VCO |
Voltage Controlled Oscillator |
DCO |
Digital Controlled Oscillator |
| LFO |
Low Frequency Oscillator |
Sub |
Sub Oscillator |
| VCF |
Voltage Controlled Filter |
VCA |
Voltage Controlled Amplifier |
| Velocity |
As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key. |
Aftertouch |
Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel. |
| Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise. |
