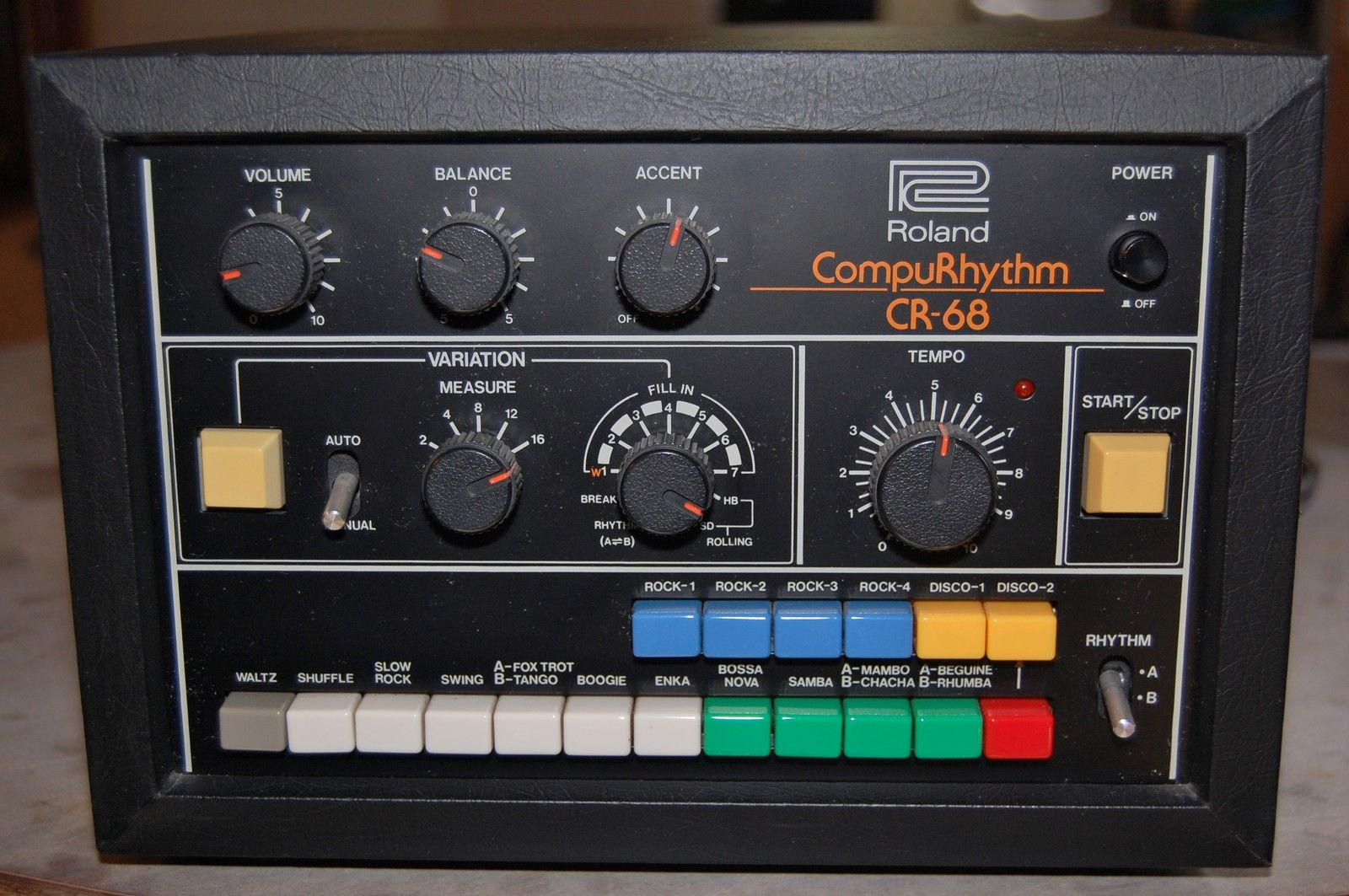

Description	The CR-68 is a classic analog Rhythm Machine related to the famous CR-78. The CR-68 has the same sound set and rhythm patterns, but is not programmable and lacks many of the better features found on a CR-78. However the CR-68 does have breaks & fills, an accent that really livens up its beats, and a balance knob that can be used to weird-out the sounds a little bit. A much cheaper alternative to the CR-78 considering it is strictly limited to its preset patterns. The CR-68 offers up the basic set of rhythms and sounds. There's 4 Rock, 2 Disco, Waltz, Shuffle, Slow Rock, Swing, Fox Trot, Tango, etc... The sounds are analog and include kick, snare, rim, hi-hat, cymbal, maracas, claves, cowbell and congas. These days the CR-68's sounds are often sampled instead, after which the machine itself may be kept around for use as a paperweight or book-end.
Brand	Roland
Model	CR-68
Device	Drum
Type	Desktop
Engine Type	Analog
Engine	VCO, preset
Voices (max)	9
Engine Detailed	Sounds: Kick, snare, rim, hi-hat, cymbal, maracas, claves, cowbell, congas
Drums	34 preset rhythms
Sequencer	4 Rock, 2 Disco, Waltz, Shuffle, Slow Rock, Swing, Fox Trot, Tango, etc
Controllers	Balance, tempo, level, accent
Keys	0
Key type	N/A
Velocity	N/A
Aftertouch	N/A

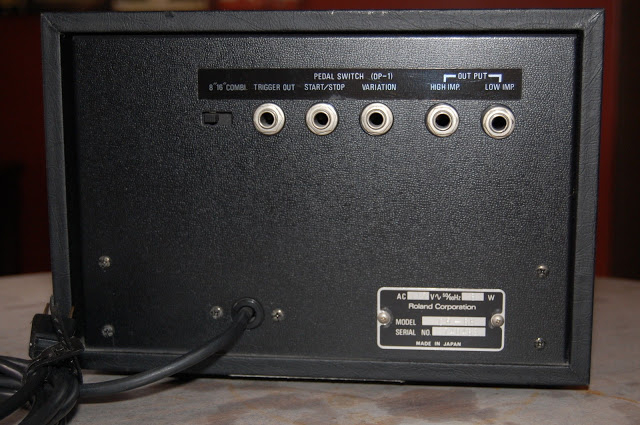

CV-gate	Trigger out
Produced:	1978 - 1978

Legend:		Obvious	Y: Yes, N: No, N/A: Not Applicable
VCO	Voltage Controlled Oscillator	DCO	Digital Controlled Oscillator
LFO	Low Frequency Oscillator	Sub	Sub Oscillator
VCF	Voltage Controlled Filter	VCA	Voltage Controlled Amplifier
Velocity	As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key.	Aftertouch	Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel.
Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise.
