Roland | CMU-810 |
|

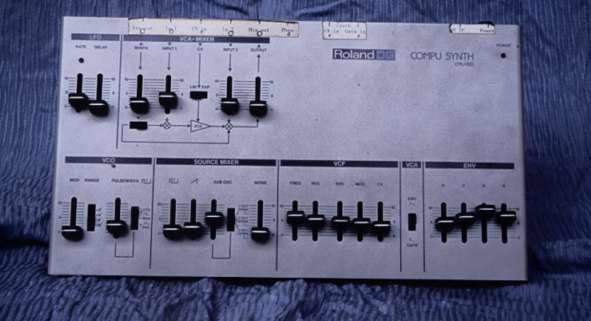

Description | The CMU-810 is one of Roland's first Expander type modules. It basically has the same guts and sounds as the MC-202. The overall layout mirrors the MC-202 and SH-101 synthesizers very closely. Along the bottom row are sliders and switches for the Oscillators, 24dB VCF analog filter and ADSR VCA envelope sections. The upper row contains the LFO controls and a simple Mixer section. External audio can also be routed in (but not through the filter). Up to two external sources can be added and their levels mixed in. This is a rare but capable analog mono-synth. It can generate true MC-202/SH-101 bass sounds which have become very popular in electronic music. The CMU-810's obscurity does not come with a heavy price tag either. In fact, they often make a cheaper alternative to the more common Roland bass/lead-synths. But you'll need some sort of CV/Gate to play any sounds. |
| Brand | Roland |
| Model | CMU-810 |
| Device | Synth |
| Type | Desktop |
| Engine Type | Analog |
| Engine | VCO |
| Voices (max) | 1 |
| Oscillators | 1 |
| Sub | 1 |
| LFO | 1 |
| Engine Detailed | Single VCO : Simultaneous sawtooth and square/pulse-width waveforms AND 1 Sub-Oscillator |
| Filter (VCF) | 24dB lowpass |
| Envelope (VCA) | ADSR, Linear or Exponential modes |
| Keys | 0 |
| Key type | N/A |
| Velocity | N/A |
| Aftertouch | N/A |
| CV-gate | CV/Gate and CV-VCA control |
| Produced: | 1983 - 1984 |
| Legend: | Obvious | Y: Yes, N: No, N/A: Not Applicable | |
| VCO | Voltage Controlled Oscillator | DCO | Digital Controlled Oscillator |
| LFO | Low Frequency Oscillator | Sub | Sub Oscillator |
| VCF | Voltage Controlled Filter | VCA | Voltage Controlled Amplifier |
| Velocity | As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key. | Aftertouch | Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel. |
| Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise. | |||
